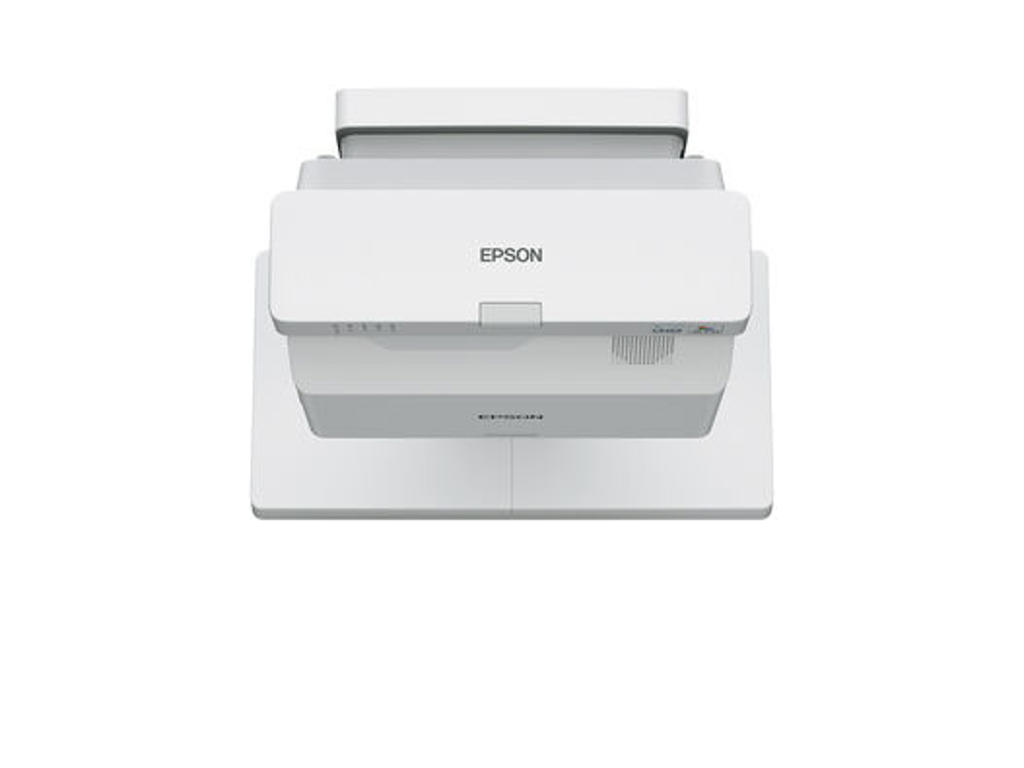

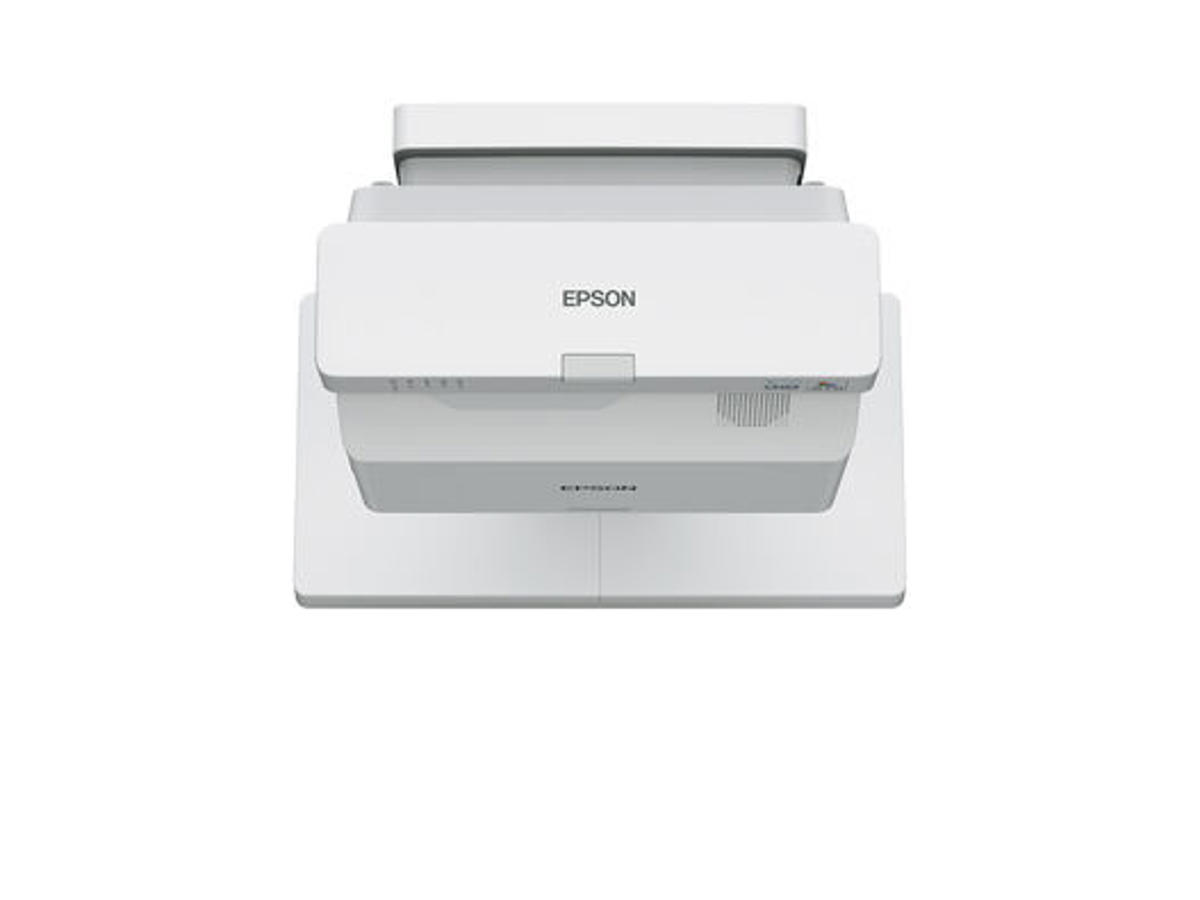

Agile UST laser display
Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost.
Projektør | |
Projektor lysstyrke | 4100 ANSI lumens |
Projektionsteknologi | 3LCD |
Projektor indbygget opløsning | 1080p (1920x1080) |
Kontrastforhold (typisk) | 2500000:1 |
Naturligt aspektforhold | 16:10 |
Skærmstørrelse kompatibilitet | 1524 - 3810 mm (60 - 150") |
Understøttede billedformater | 16:10 |
Antal farver | 1,07 milliarder farver |
Projektor lysstyrke (økonomisk tilstand) | 2800 ANSI lumens |
Vertikalt scanningsområde | 100 - 120 Hz |
Trapezkorrektion, horisontal | -3 - 3° |
Trapezkorrektion, vertikal | -3 - 3° |
Varmeafgivelse | 895 BUT/t |
Lyskilde | |
Lyskilde type | Laser/LED hybrid |
Levetid for lyskilde | 20000 t |
Levetid for lyskilde (økonomisk tilstand) | 30000 t |
Linsesystem | |
Fokus | Vejledning |
Fast brændvidde | 3,7 mm |
F-number (relativ aperture) | 1,6 |
Zoom kapacitet | Ja |
Zoomforhold | 1.35:1 |
Throw-forhold | 0.27 - 0.37:1 |
Video | |
Full HD | Ja |
3D | Ingen |
Farvetilstande for video | Blackboard, Biograf, Dynamisk, Præsentation, sRGB |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 2 |
Antal HDMI-porte | 3 |
Sammensat videoindgang | 1 |
DVI-port | Ingen |
Antal USB 2.0-porte | 3 |
Lyd (L, R) indgang | 3 |
Seriel grænsefladetype | RS-232C |
Antal USB 2.0 type-A-porte | 2 |
Antal USB 2.0 Type-B porte | 1 |
Lyd (L, R) udgang | 1 |
Mikrofonindgang | Ja |
Understøtter forbrugerelektronik (CEC) | Ja |
Audio Return Channel (ARC) | Ja |
Netværk | |
Ethernet LAN | Ja |
Wi-Fi | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Miracast | Ja |
Lagring | |
Indbygget kortlæser | Ingen |
Funktioner | |
Støjniveau | 37 dB |
Støjniveau (økonomisk tilstand) | 27 dB |
Skærmvisning (OSD) | Ja |
Skærm spejling | Ja |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Udgangseffekt (RMS) | 16 W |
Design | |
Produkttype | Ultrakort projektor med kort projiceringsafstand |
Markedspositionering | Præsentation |
Produktfarve | Hvid |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 197 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (maks.) | 263 W |
Strømforbrug (strømbesparelse) | 199 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Leverandørfunktioner | |
Anbefalet køn | Ethvert køn |
Driftsbetingelser | |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Vægt | 5,9 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Brugervejledning | Ja |
Tekniske detaljer | |
Garantiperiode | 5 År |
