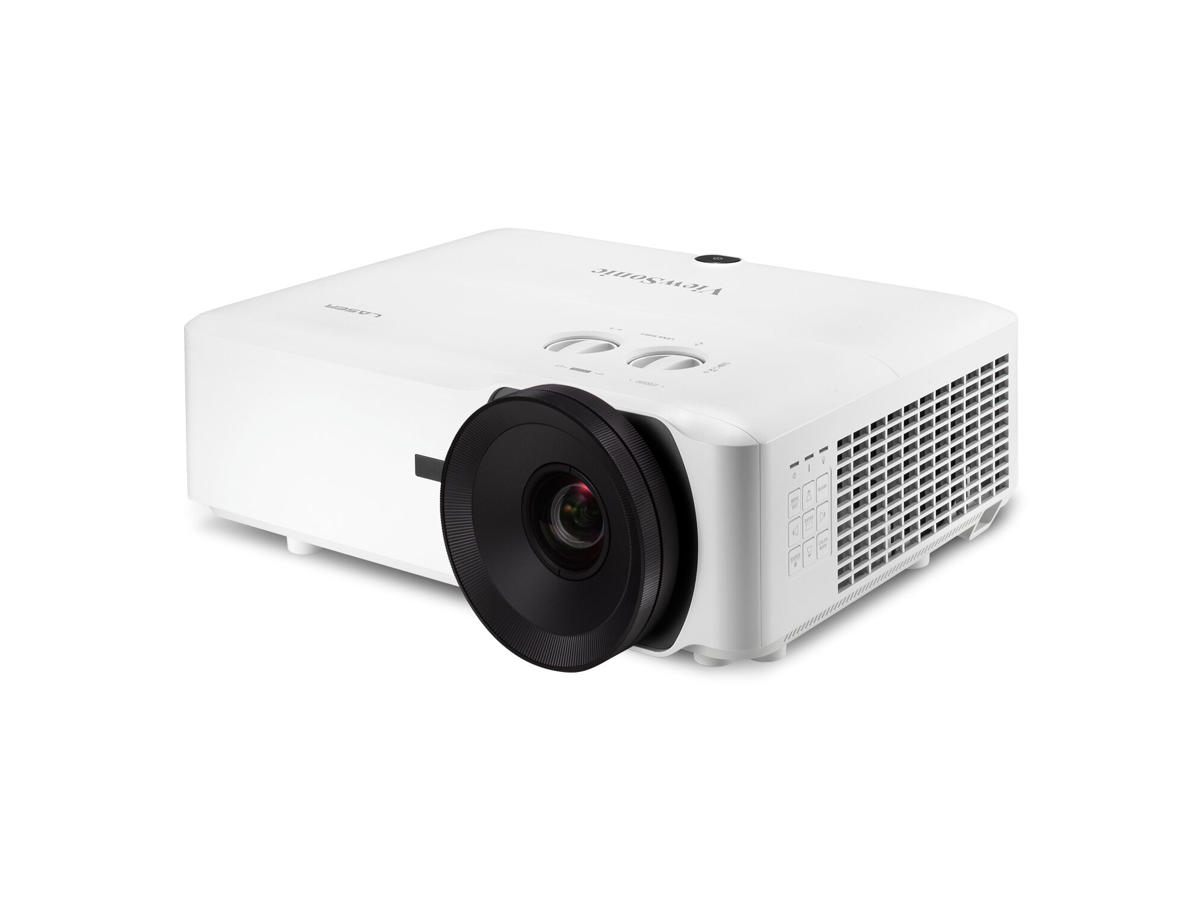

LS921WU - 6000 Lumens WUXGA Short Throw Laser Projector with Portrait Mode and Dual HDMI
Bright and versatile for any professional installation, the ViewSonic® LS921WU WUXGA short throw laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, up to 20,000 hours* of light source life, and a screen size of up to 200”, this projector is ideal for auditoriums, restaurants, gyms and other large venues. This top-notch performer is also easy to deploy and manage with its short-throw lens, 1.1x optical zoom adjustment, wide lens shift, 360° projection, and portrait mode that provide extreme flexibility in even the most challenging installations. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. In addition, its compact size and built-in HDBaseT deliver the perfect mix of high-quality projection and cost-effectiveness. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
*Light source lifespan may vary based on actual usage and other factors.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
Projektør | |
Projektor lysstyrke | 6000 ANSI lumens |
Projektionsteknologi | DMD |
Projektor indbygget opløsning | WUXGA (1920x1200) |
Naturligt aspektforhold | 16:10 |
Smart projektor | Ingen |
Skærmstørrelse kompatibilitet | 762 - 7620 mm (30 - 300") |
Projiceringsafstand | 1,04 - 3,83 m |
Kontrastforhold (dynamisk) | 3000000:1 |
Antal farver | 1,07 milliarder farver |
Horisontal scanningsområde | 15 - 135 kHz |
Vertikalt scanningsområde | 23 - 120 Hz |
Trapezkorrektion, horisontal | -40 - 40° |
Trapezkorrektion, vertikal | -40 - 40° |
Lyskilde | |
Lyskilde type | Laser |
Levetid for lyskilde | 20000 t |
Lampeeffekt | 74 W |
Antal lamper | 2 Lampe( r) |
Linsesystem | |
Fokus | Vejledning |
Brændviddeområde | 8.6 - 9.4 mm |
Blændeområde (F-F) | 1,83 - 1,86 |
Zoom kapacitet | Ja |
Zoom type | Vejledning |
Zoomforhold | 2.0:1 |
Throw-forhold | 0.81-0.89 |
Horisontalt område for optisk linseforskydning | 50 - -50% |
Vandret område for optisk linseforskydning | 23 - -23% |
Video | |
Format til analogt signal | NTSC, PAL, SECAM |
Full HD | Ja |
Understøttede grafikopløsninger | 640 x 480 (VGA), 3840 x 2160 |
Porte & Grænseflader | |
Antal VGA-porte (D-sub) | 2 |
Antal HDMI-porte | 2 |
Sammensat videoindgang | 1 |
DVI-port | Ingen |
Antal USB 2.0-porte | 1 |
Lyd (L, R) indgang | 1 |
Seriel grænsefladetype | RS-232 |
HDMI- stiktype | Fuld størrelse |
HDMI-version | 2.0b |
Antal af S-video-indgange | 1 |
HDBaseT-port | Ja |
Antal USB 2.0 type-A-porte | 1 |
Udgange til hovedtelefoner | 1 |
Mikrofonindgang | Ja |
Pc lydindgang | Ja |
PC-lydudgang | Ja |
3D-synkroniseringsport | Ja |
AC (strøm) indgang | Ja |
Netværk | |
Smart TV | Ingen |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
Ethernet LAN-porte (RJ-45) | 1 |
Lagring | |
Indbygget kortlæser | Ingen |
Funktioner | |
Støjniveau | 36 dB |
Interaktiv | Ingen |
Støjniveau (økonomisk tilstand) | 29 dB |
HDCP | Ja |
Projiceringstilstande | Loft, Front, Bagside |
Skærmvisning (OSD) | Ja |
OSD-sprog | Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Tysk, Hollandsk, Engelsk, Spansk, Finsk, Fransk, Græsk, Indonesisk, Italiensk, Japansk, Koreansk, Polsk, Portugisisk, Russisk, Svensk, Thai, Tyrkisk, Vietnamesisk |
Antal OSD sprog | 23 |
Multimedie | |
Indbyggede højttaler(e) | Ja |
Udgangseffekt (RMS) | 20 W |
Antal indbyggede højttalere | 2 |
Design | |
Produkttype | Projektor med kort projiceringsafstand |
Markedspositionering | Forretning |
Produktfarve | Hvid |
Placering | Desktop, Loft |
Display | |
Indbygget skærm | Ingen |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforbrug (typisk) | 450 W |
Strømforbrug (standby) | 0,5 W |
Vekselstrømsindgangsspænding | 100-120 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Driftshøjde | 0 - 3000 m |
Vægt & størrelser | |
Vægt | 6,5 kg |
Bredde | 405 mm |
Dybde | 305 mm |
Højde | 145 mm |
Pakkebredde | 515 mm |
Pakkedybde | 490 mm |
Pakkehøjde | 276 mm |
Pakkevægt | 9 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, VGA |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85286200 |
