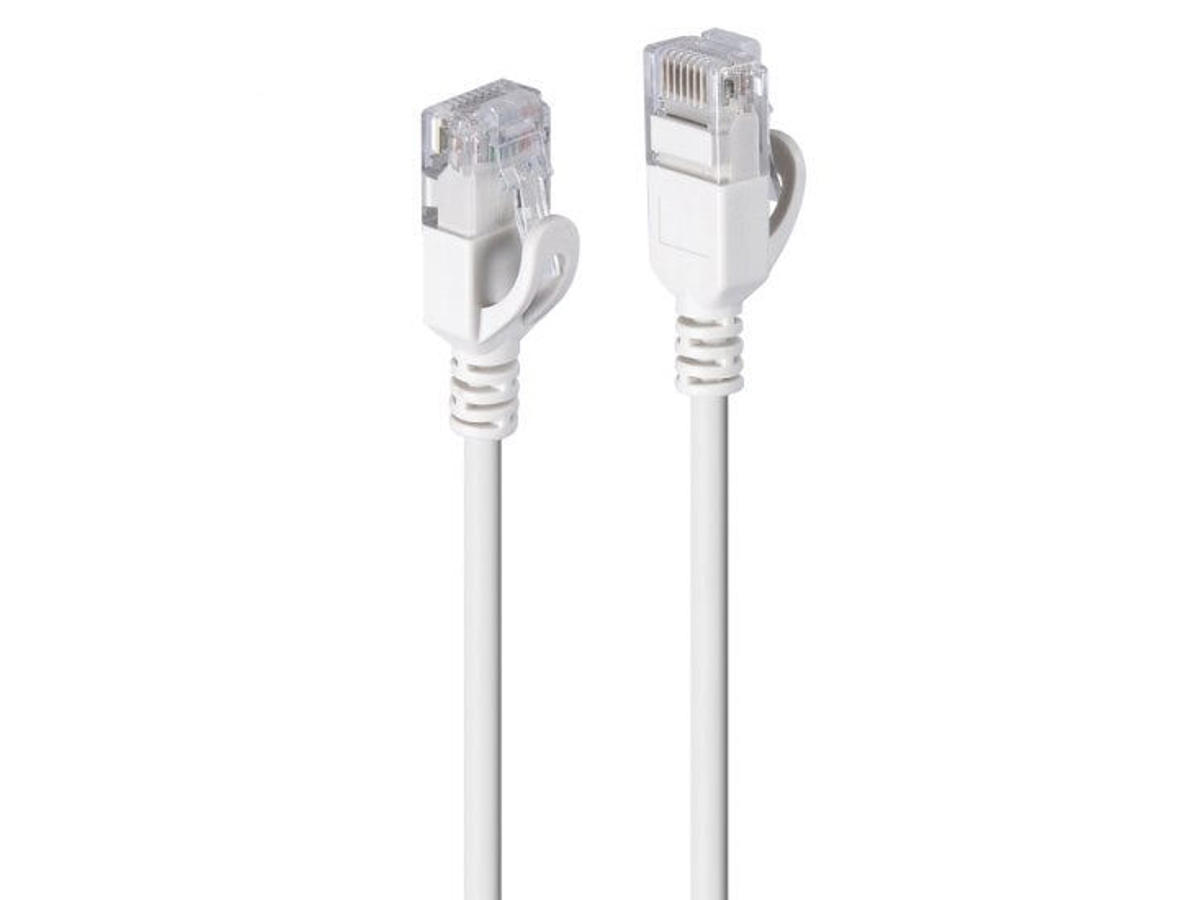

Cat.6A U/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
Funktioner | |
Kabellængde | 0,3 m |
Standard for kabler | Cat6a |
Kabelafskærmning | U/UTP (UTP) |
Stik 1 | RJ-45 |
Stik 2 | RJ-45 |
Produktfarve | Grå |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
Stik afskærmning | Ja |
Stik skjold materiale | Aluminium |
Materiale for kapper | Polyvinylchlorid (PVC) |
Ledningsmateriale | Kobber |
AWG-ledningsstørrelse | 28 |
Frekvens | 500 MHz |
Bøjningsradius (min) | 6 cm |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 60 °C |
Opbevaringstemperatur (T-T) | -10 - 40 °C |
Vægt & størrelser | |
Bredde | 11 mm |
Dybde | 28 mm |
Højde | 6 mm |
Ydre diameter | 3,6 mm |
Emballeringsdata | |
Pakketype | Polybag |
Tekniske detaljer | |
Compliance-certifikater | REACH, RoHS |
Overholdelse af bæredygtighed | Ja |
