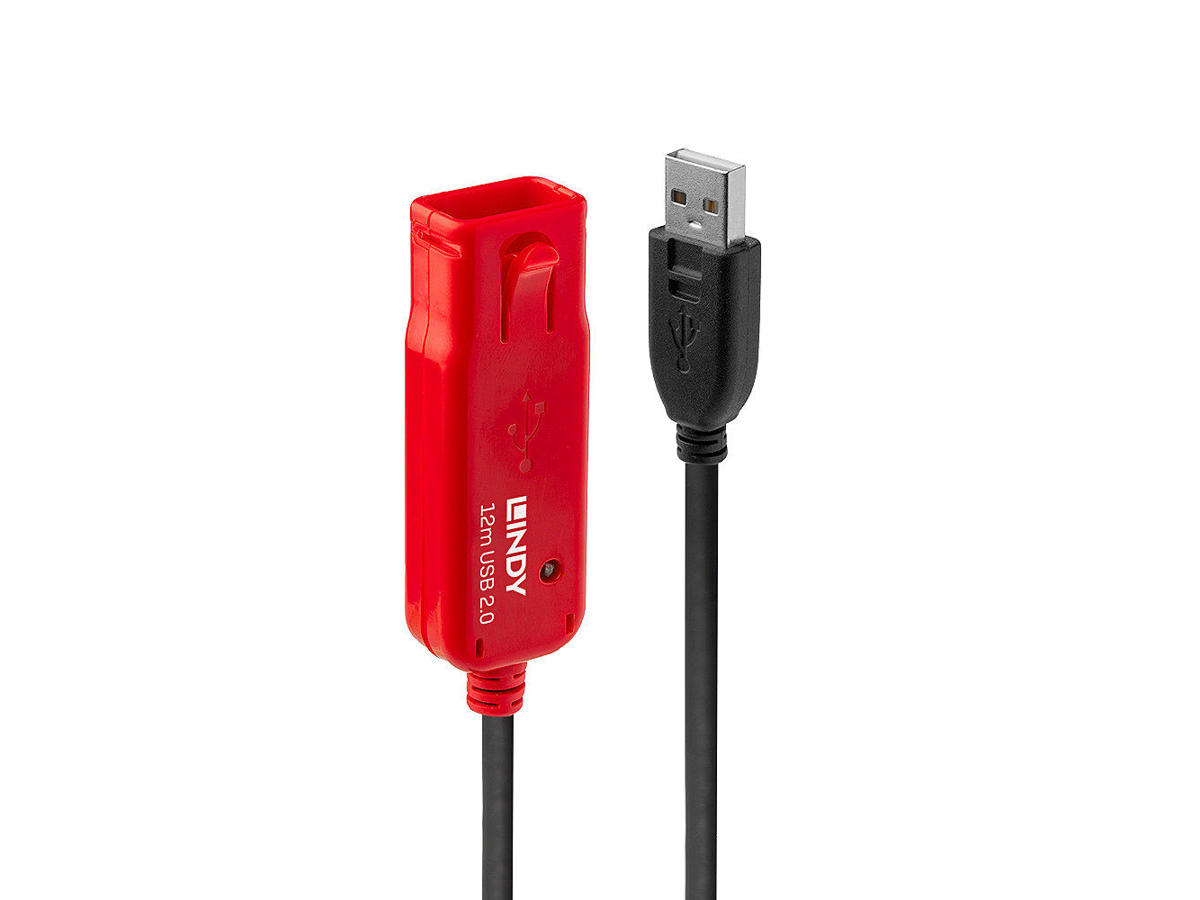

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.
This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Funktioner | |
USB version | USB 2.0 |
Stik 1 | USB A |
Stik 2 | USB A |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
AWG-ledningsstørrelse | 26/20 |
Tilslutningsmateriale | Gold/Nickel |
Kontaktmateriale | Messing |
Stikforbindelse kontakter plettering | Guld |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Ledningsmateriale | Fortinnet kobber |
Stik skjold materiale | Aluminium |
Materiale til stikhus | Plast |
Maksimal dataoverførselshastighed | 480 Mbit/s, 0,48 Gbit/sek. |
Kabeltype | Rundt kabel |
Transmissionsmedium | Snoet par |
Nominel dæmpning | 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB |
Certificering | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Vægt & størrelser | |
Kabellængde | 12 m |
Kabeldiameter | 5 mm |
Vægt | 420 g |
Bøjningsradius (min) | 2,6 cm |
Stik 1 dimensioner (BxDxH) | 15 x 43 x 8 mm |
Stik 2 dimensioner (BxDxH) | 20 x 64 x 13 mm |
Emballeringsdata | |
Pakketype | Kasse |
Pakkebredde | 238 mm |
Pakkedybde | 202 mm |
Pakkehøjde | 66 mm |
Pakkevægt | 597 g |
Emballage indhold | |
Antal pr. pakke | 1 stk |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Andre funktioner | |
Kompatible operativsystemer | Win ME, 2000, XP, Vista Mac OS Linux |
