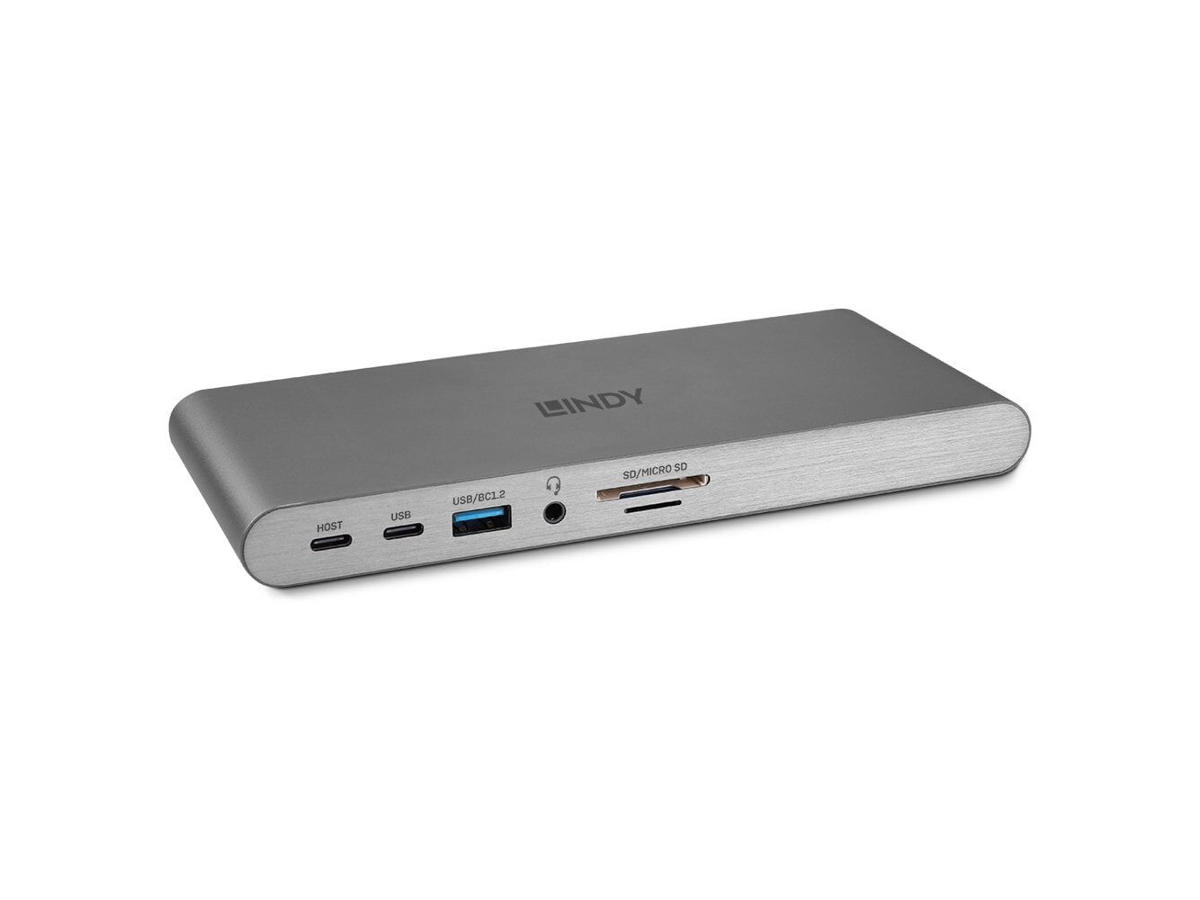

The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.
Extended Displays
When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.
Added Connectivity
This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.
Pass-through Charging
This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal HDMI-porte | 1 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
USB strømforsyning | Ja |
USB strømforsyning revision | 3.0 |
USB strømforsyning op til | 100 W |
HDMI-version | 2.0 |
Antal DisplayPorts | 2 |
DisplayPort-version | 1.4 |
Kombineret hovedtelefon/mikrofon-port | Ja |
HDCP | Ja |
HDCP-version | 2.2 |
USB type-C DisplayPort alternativ tilstand | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Wake-on-LAN klar | Ja |
Præstation | |
Produktfarve | Sølv |
Indbygget kortlæser | Ja |
Kompatible hukommelseskort | MicroSD (TransFlash), SD |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 7680 x 4320 pixel |
Maksimal opdateringshastighed | 60 Hz |
Plug and play | Ja |
Husmateriale | Aluminium |
Strømstyring | |
Strømkilde type | DC |
Strømstik | USB Type-C |
Udgangsspænding | 20 V |
Udgangsstrøm | 5 A |
Strømforbrug (maks.) | 24 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 180 mm |
Dybde | 77 mm |
Højde | 18 mm |
Vægt | 439 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 120 mm |
Pakkehøjde | 70 mm |
Pakkevægt | 780 g |
Emballage indhold | |
Kabler inkluderet | USB Type-C |
Brugervejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE, REACH, RoHS |
