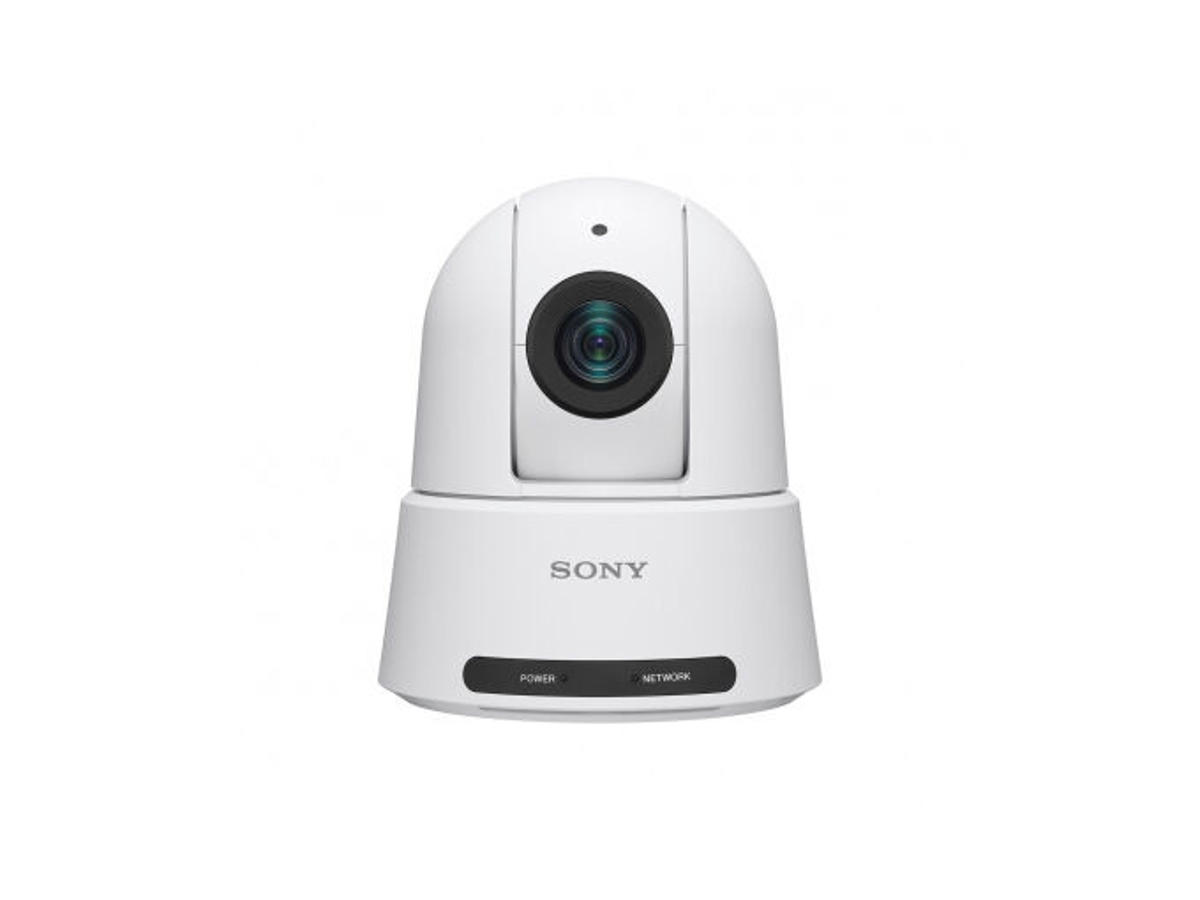

SRG-A40/ SRG-A12 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.
A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.
PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.
Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.
Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.
Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).
Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.
Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.
Light, compact design
The camera’s stylish, compact body fits unobtrusively into any environment.
Choice of colour finishes
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.
Kamera | |
Megapixel | 8,5 MP |
Kameratype | Enkelt kamera |
Sensortype | CMOS |
Optisk sensorstørrelse | 25,4 / 2,5 mm (1 / 2.5") |
Zoom kapacitet | Ja |
Optisk zoom | 12x |
Brændviddeområde | 4.4 - 52.8 mm |
Horisontalt visningsområde (bred) | 70° |
Minimumsbelysning | 1,6 Lux |
Flip & spejl | Ja |
Blændeområde (F-F) | 2 - 3,7 |
Hvidbalance | Indendørs, One push, Udendørs, Automatisk, Vejledning, Dagslys |
Auto eksponering | Ja |
Lyseksponeringstilstande | Vejledning, Automatisk, Lukkeprioritering AE |
Fokusindstilling | Auto/manuel |
Forstærkningskontroltype | Auto/manuel |
PTZ-kontrol | Ja |
PTZ-protokoller | VISCA |
Minimum arbejdsafstand (bred) | 8 cm |
Maksimum arbejdsafstand (tele) | 40 cm |
Langsomste hastighed for kameralukker | 1 sek./side |
Hurtigste hastighed for kameralukker | 1/10000 sek./side |
Video | |
Maksimal videoopløsning | 3840 x 2160 pixel |
Maksimum billedhastighed | 60 fps |
HD-type | 4K Ultra HD |
Understøttede videoformater | H.264, H.265 |
Understøttede grafikopløsninger | 3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720) |
Antal TV-linier | 1700 |
Design | |
Produktfarve | Hvid |
Billedstabilisator | Ja |
Hældningsvinkelområde | -20 - 90° |
Panoreringsområde | -170 - 170° |
Tally-lys | Ja |
Vippehastighed (min.) | 0,5 grader i sekundet |
Vippehastighed (maks.) | 126 grader i sekundet |
Paneringshastighed (min.) | 0,5 grader i sekundet |
Paneringshastighed (maks.) | 300 grader i sekundet |
Porte & Grænseflader | |
Antal HDMI-porte | 1 |
Ethernet LAN-porte (RJ-45) | 1 |
DC-in-stik | Ja |
3G-SDI udgang | Ja |
Mikrofonindgang | Ja |
VISCA udgangsporte | 1 |
VISCA indgangsporte | 1 |
Strømstyring | |
Strømkilde type | Vekselstrøm, DC |
DC indgangsspænding | 19.5 V |
Strømforbrug (typisk) | 80 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Emballage indhold | |
Strømforsyning inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, HDMI |
Garantibevis | Ja |
Skruer inkluderet | Ja |
Monteringsbeslag inkluderet | Ja |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise |
Understøttede Mac-operativsystemer | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Præstation | |
Automatisk indramning | Ja |
Lyd | |
Lyd kanaler | 2 |
Lyd codec | AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP) |
Netværk | |
Multi-stream kapacitet | 3 |
Bitrate kontrol | Konstant bithastighed (CBR), Variabel bithastighed (VBR) |
Interval for bithastighed | 512 - 50000 Kbit/s |
Understøttede netværksprotokoller | IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT |
Vægt & størrelser | |
Bredde | 156,7 mm |
Dybde | 200 mm |
Højde | 184 mm |
Vægt | 2 kg |
