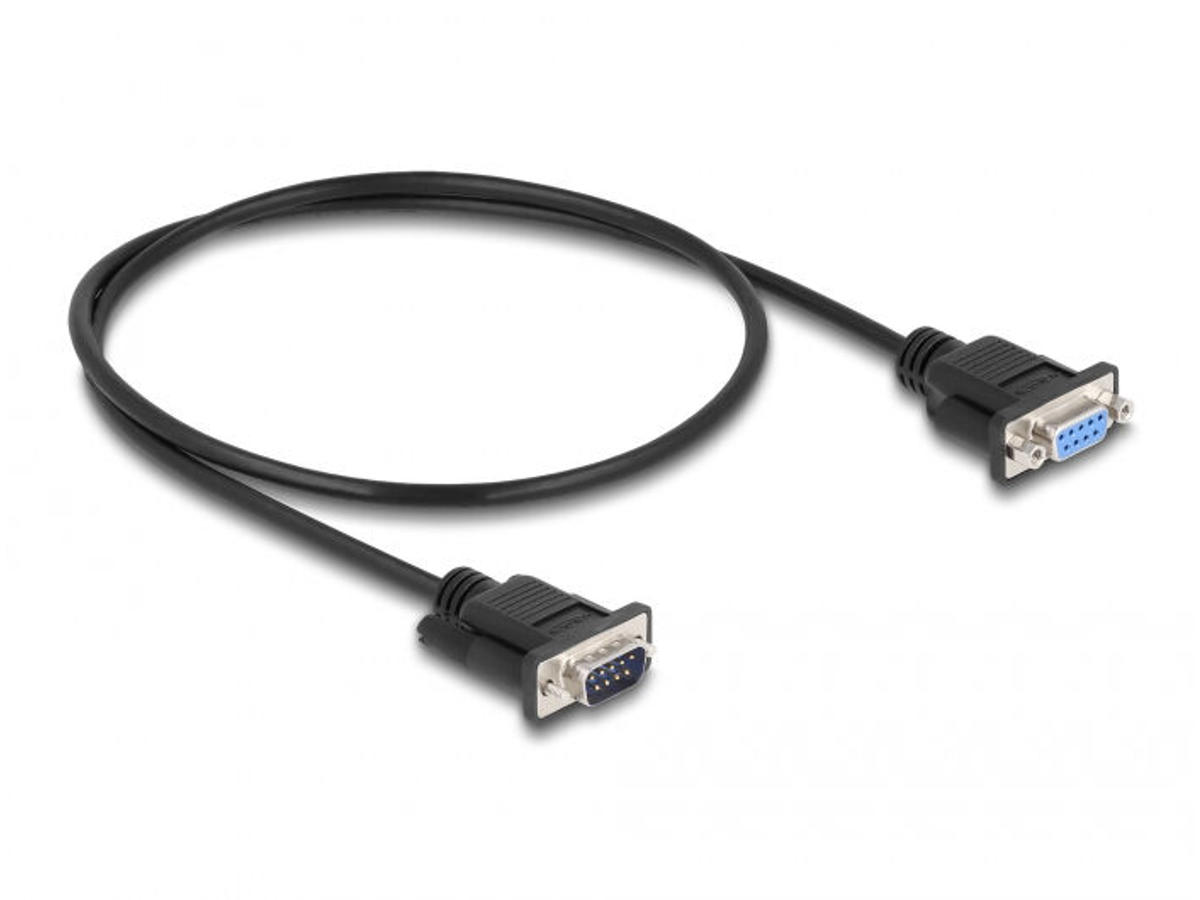

This serial cable by Delock is a full handshaking null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange.
These cables fit any RS-232 port, as the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.
• Connectors:
1 x serial D-Sub 9 male with screws
1 x serial D-Sub 9 female with nuts
• Cable gauge: 28 AWG
• Full handshaking cable
• Pin assignment: 1+6 – 4, 2 – 3, 3 – 2, 4 – 1+6, 5 – 5, 7 – 8, 8 – 7, shielded
• Colour: black
• Insulator: PVC
• Screw type: #4-40 UNC
• Cable diameter: ca. 5 mm
• Cable length incl. connectors: ca. 0.5 m
Funktioner | |
Kabellængde | 0,5 m |
Stik 1 | VGA (D-Sub) |
Stik 2 | VGA (D-Sub) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Produktfarve | Sort |
Antal pr. pakke | 1 stk |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
AWG-ledningsstørrelse | 28 |
Stikforbindelse kontakter plettering | Guld |
Kabelmateriale | Kobber |
Kabel kappemateriale | Polyvinylchlorid (PVC) |
Vægt & størrelser | |
Kabeldiameter | 5 mm |
Pakketype | Blister |
