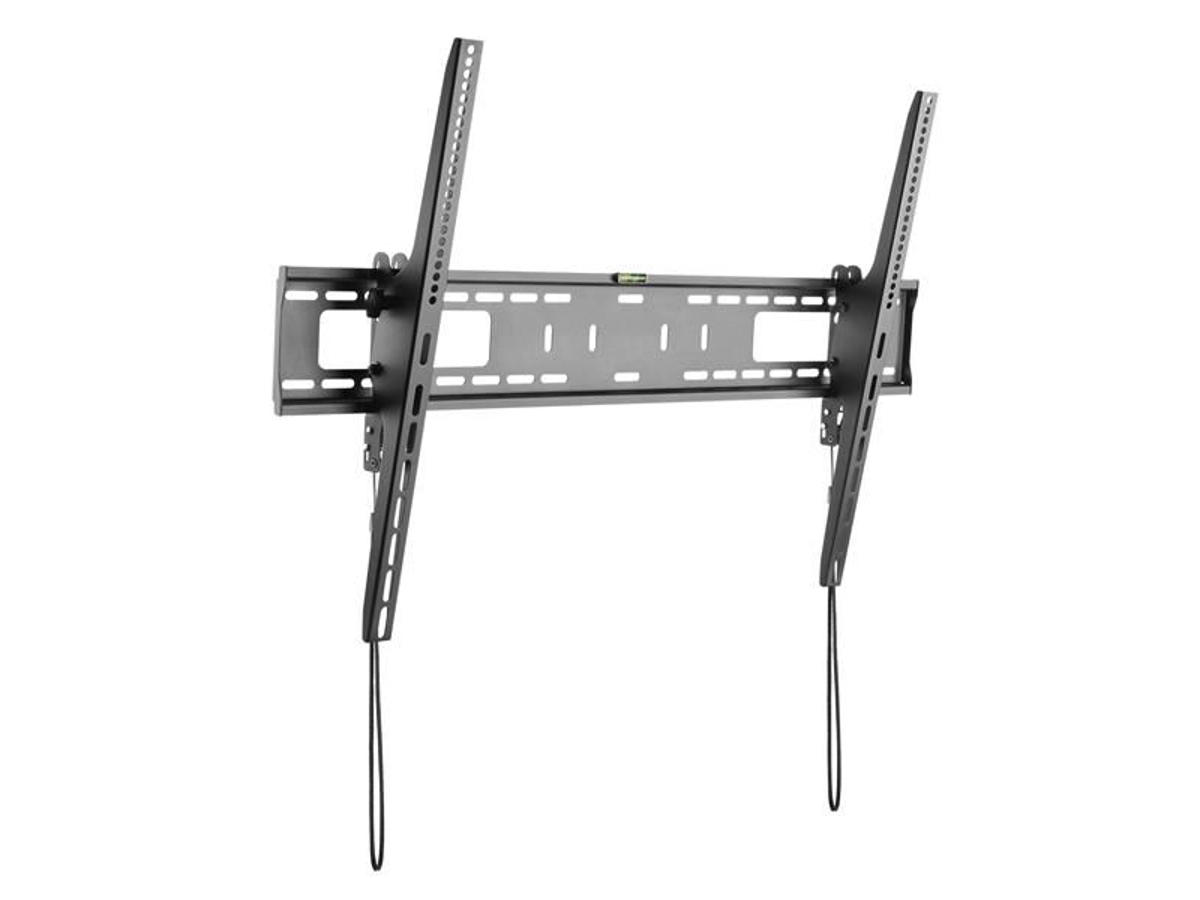

Display Wall Mount | Steel | For 60" to 100" TVs
Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an attractive low-profile design.
Create an Engaging Display for Digital Signage
Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.
The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.
Tilting Design for Optimal Viewing
Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.
Low-Profile Design
Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall.
Robust Steel Construction and Easy Installation
The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.
FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 100" TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish
- EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600
Montering | |
Maksimal vægtkapacitet | 75 kg |
Maksimal skærmstørrelse kompatibilitet | 2,54 m (100") |
Monteringstype | Væg |
Montering interface kompatibilitet (min.) | 100 x 100 mm |
Montering interface kompatibilitet (maks.) | 900 x 600 mm |
Minimal skærmstørrelse kompatibilitet | 152,4 cm (60") |
Panel montering grænseflade | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600 |
Antal understøttede skærme | 1 |
Ergonomisk | |
Hældningsvinkelområde | -10 - 5° |
Forbedret kabelstyring | Ingen |
Design | |
Produktfarve | Sort |
Husmateriale | Plast, Stål |
Tyverisikring | Ingen |
Certificering | CE, REACH |
Tekniske detaljer | |
Bæredygtighedscertifikater | RoHS |
Emballage indhold | |
Adapterbøjle inkluderet | Ja |
Antal inkluderede adapterbeslag | 2 |
Ankre inkluderet | Ja |
Antal ankre inkluderet | 6 |
Spændeskiver inkluderet | Ja |
Antal spændeskiver inkluderet | 10 |
Afstandsstykke medfølger | Ja |
Antal afstandsstykker inkluderet | 16 |
Skruer inkluderet | Ja |
Antal skruer | 26 |
Brugervejledning | Ja |
Vægt & størrelser | |
Bredde | 625 mm |
Dybde | 954 mm |
Dybde (maks.) | 95,4 cm |
Højde | 50 mm |
Vægt | 4,5 kg |
Emballeringsdata | |
Pakkebredde | 156 mm |
Pakkedybde | 980 mm |
Pakkehøjde | 50 mm |
Pakkevægt | 4,8 kg |
Logistik data | |
Hovedkassens bredde (udvendigt) | 180 mm |
Hovedkassens længde (udvendigt) | 1000 mm |
Hovedkassen højde (udvendigt) | 230 mm |
Produkter pr. hovedkasse (udvendigt) | 5 stk |
Harmoniseret systemkode (HS) | 85299097 |
