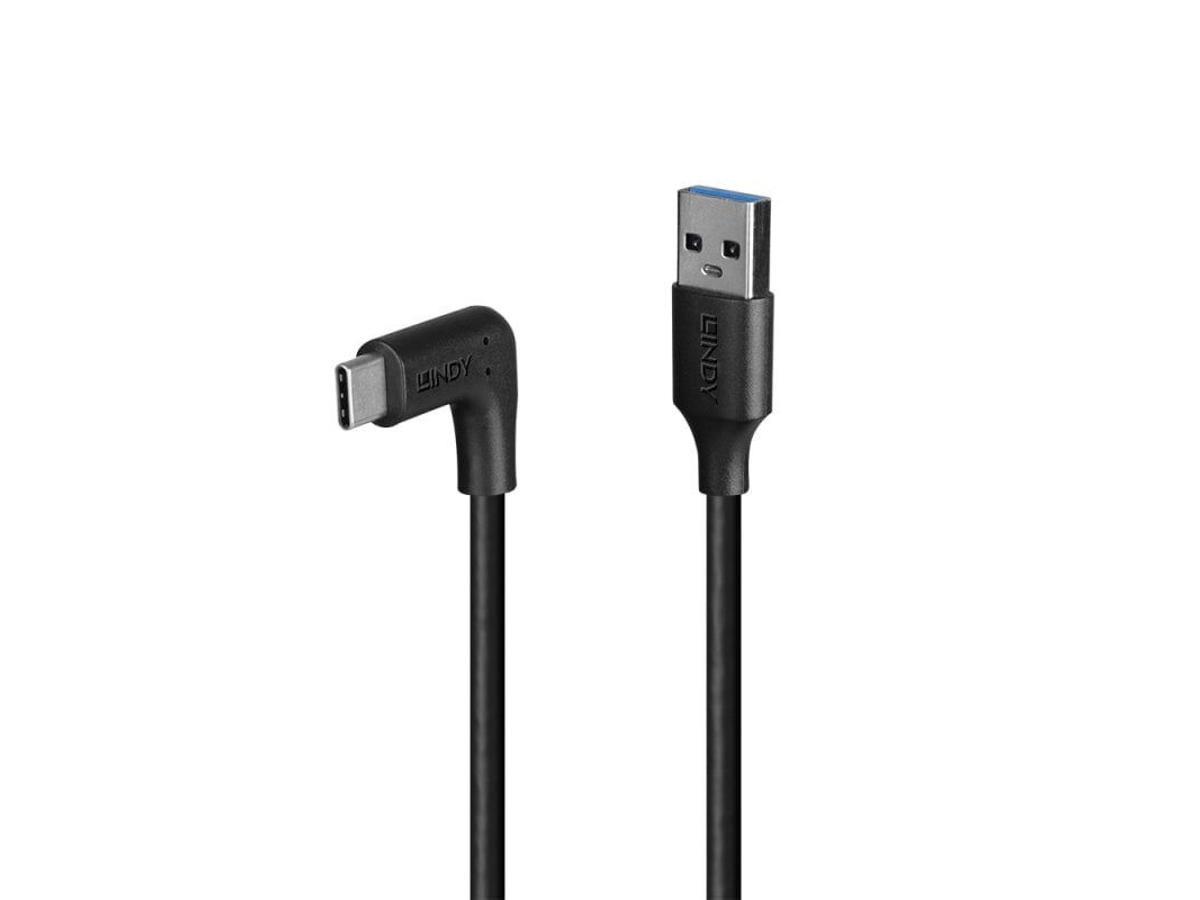

LINDY USB 3.2 Type A to C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type A to C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
Funktioner | |
USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
Stik 1 | USB A |
Stik 2 | USB C |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Vinklet |
AWG-ledningsstørrelse | 24/28 |
Tilslutningsmateriale | Guld |
Stikforbindelse kontakter plettering | Nikkel |
Kabel kappemateriale | Nylon/polyvinylchlorid (PVC) |
Ledningsmateriale | Kobber |
Stik afskærmning | Ja |
Stik skjold materiale | Aluminium |
Maksimal dataoverførselshastighed | 10 Gbit/sek. |
Kabeltype | Rundt kabel |
USB strømforsyning op til | 15 W |
Nominel dæmpning | 0.5Mhz- 400Mhz < 5.8db |
Vægt & størrelser | |
Kabellængde | 0,5 m |
Kabeldiameter | 3,8 mm |
Bøjningsradius (min) | 5 cm |
Stik 1 dimensioner (BxDxH) | 7,8 x 26,5 x 14,25 mm |
Stik 2 dimensioner (BxDxH) | 11,1 x 25,8 x 24,2 mm |
Emballeringsdata | |
Pakketype | Polybag |
Emballage indhold | |
Antal pr. pakke | 1 stk |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | 0 - 70 °C |
Godkendelser | |
Compliance-certifikater | REACH, RoHS |
Certificering | RoHS, REACH, California Proposition 65 |
Logistik data | |
Garantiperiode | 10 År |
