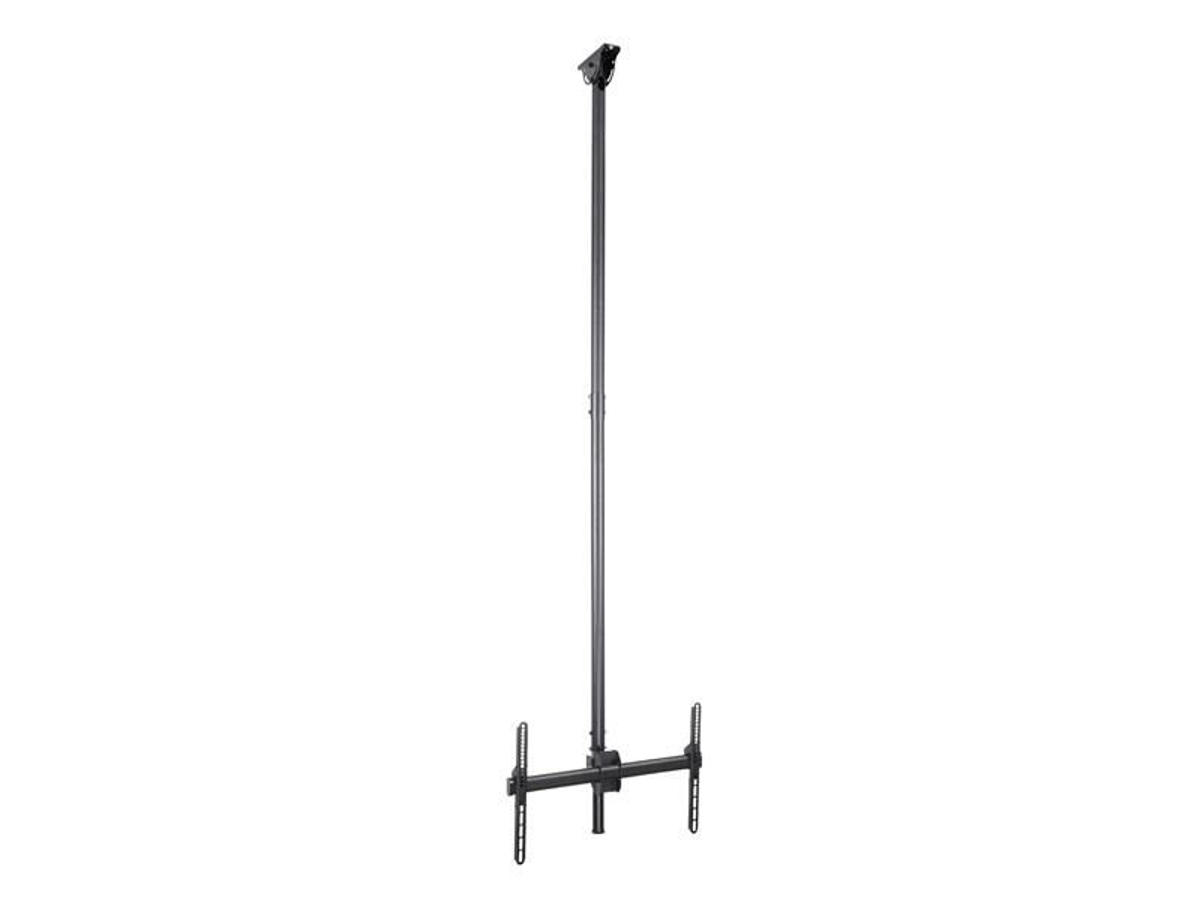

Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Montering | |
Maksimal vægtkapacitet | 50 kg |
Maksimal skærmstørrelse kompatibilitet | 190,5 cm (75") |
Monteringstype | Loft |
Montering interface kompatibilitet (min.) | 200 x 200 mm |
Montering interface kompatibilitet (maks.) | 600 x 400 mm |
Minimal skærmstørrelse kompatibilitet | 81,3 cm (32") |
Panel montering grænseflade | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Antal understøttede skærme | 2 |
Ergonomisk | |
Højdejustering | Ja |
Højdejusteringsområde | 2500 - 3000 mm |
Hældningsvinkelområde | -25 - 0° |
Drejevinkel område | -180 - 180° |
Forbedret kabelstyring | Ja |
Design | |
Produktfarve | Sort |
Husmateriale | Stål |
Tyverisikring | Ingen |
Certificering | CE, REACH |
Vægt & størrelser | |
Bredde | 435 mm |
Dybde | 680 mm |
Dybde (maks.) | 68 cm |
Højde | 3200 mm |
Vægt | 10 kg |
Emballeringsdata | |
Pakkebredde | 320 mm |
Pakkedybde | 1300 mm |
Pakkehøjde | 115 mm |
Pakkevægt | 10,8 kg |
Emballage indhold | |
Brugervejledning | Ja |
Skruer inkluderet | Ja |
Antal skruer | 28 |
Nøgle inkluderet | Ja |
Spændeskiver inkluderet | Ja |
Antal spændeskiver inkluderet | 8 |
Afstandsstykke medfølger | Ja |
Antal afstandsstykker inkluderet | 16 |
Tekniske detaljer | |
Pakkens dimensioner (BxDxH) | 320 x 1270 x 115 mm |
Compliance-certifikater | RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85299097 |
Hovedkassens bredde (udvendigt) | 320 mm |
Hovedkassens længde (udvendigt) | 1270 mm |
Hovedkassen højde (udvendigt) | 115 mm |
Produkter pr. hovedkasse (udvendigt) | 1 stk |
