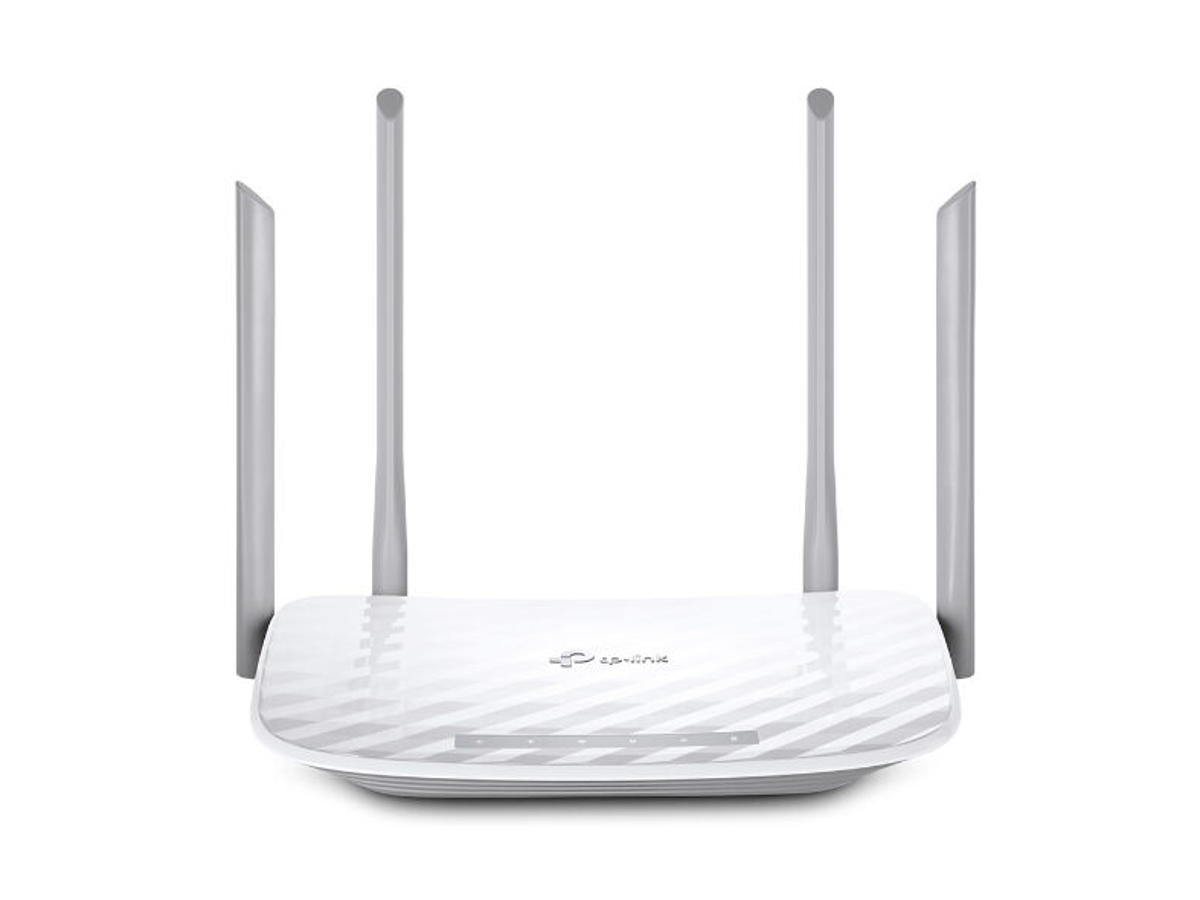

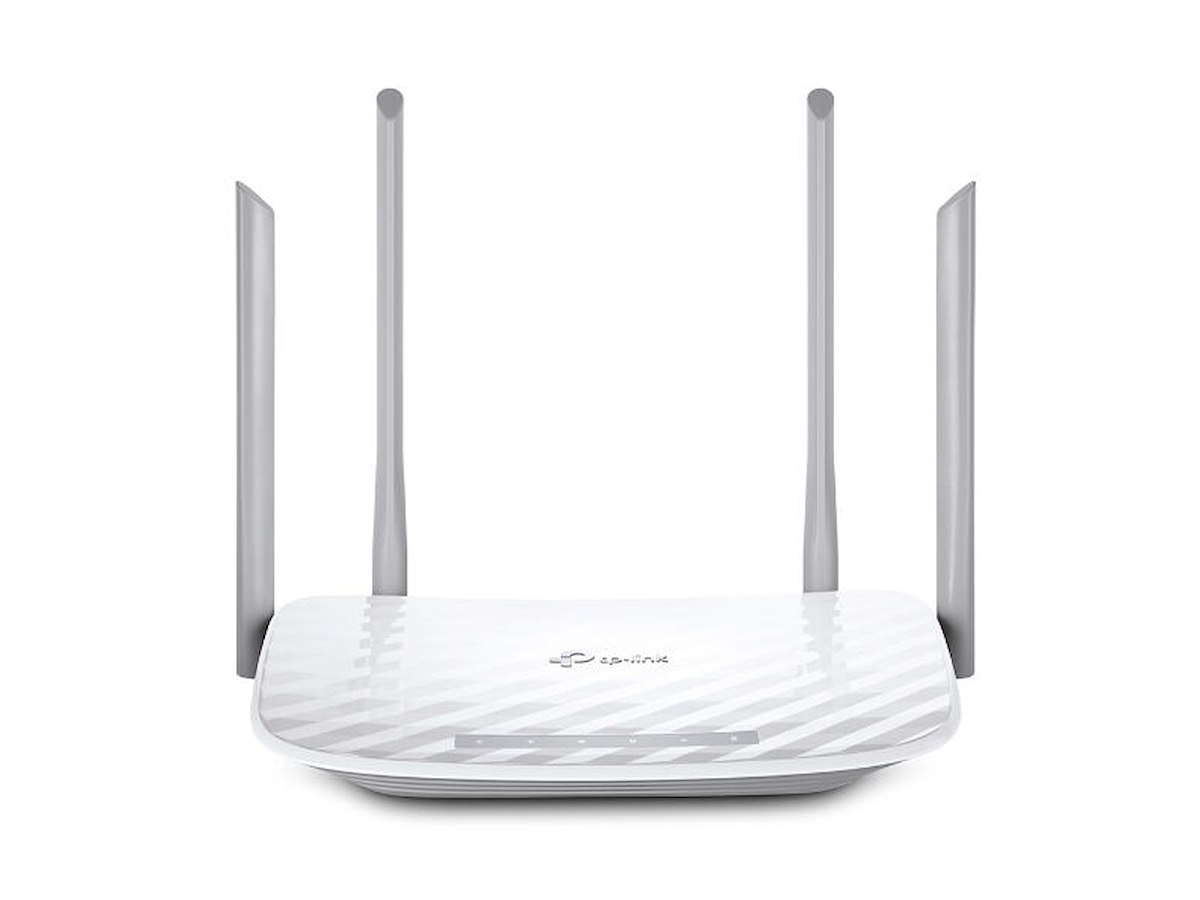

High-Speed Dual Band Wi-Fi for Better Connections
The Archer A5 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.
With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Innovative Antenna Design for Maximum Coverage
Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
Efficient Guest Authentication with Facebook
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.
Easy Setup and Use
Set up the Archer A5 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
WAN-forbindelse | |
Ethernet WAN | Ja |
DSL WAN | Ingen |
SIM-kort slot | Ingen |
3G/4G kompatibilitet USB-modem | Ingen |
WAN forbindelsestype | RJ-45 |
Trådløse LAN funktioner | |
Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
Bedste Wi-Fi standard | Wi-Fi 5 (802.11ac) |
WLAN dataoverførselshastighed (maks) | 867 Mbit/s |
Wi-Fi-standarder | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
WLAN dataoverførselshastighed (første bånd) | 300 Mbit/s |
WLAN dataoverførselshastighed (anden bånd) | 867 Mbit/s |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-grænsefladetype | Hurtigt ethernet |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Kabelteknologi | 10/100Base-T(X) |
Netværksstandarder | IEEE 802.3, IEEE 802.3u |
Portvideresendelse | Ja |
Dynamisk DNS (DDNS) | Ja |
Statisk rute | Ja |
VPN gennemløb | Ja |
Modtager, følsomhed | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm |
Mobilt netværk | |
3G | Ingen |
4G | Ingen |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 4 |
USB-port | Ingen |
Hukommelseskortstik | Ingen |
Administrationsfunktioner | |
Knap til nulstilling | Ja |
WPS trykknap | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Firewall | Ja |
Adgangskontrolliste (ACL) | Ja |
DoS angrebsforebyggelse | Ja |
Filtrering | Ja |
Filtrering af MAC-adresser | Ja |
IP-adresse filtrering | Ja |
Understøttelse af DMZ | Ja |
Protokoller | |
DHCP-klient | Ja |
DHCP-server | Ja |
Universal Plug and Play (UPnP) | Ja |
Understøttede netværksprotokoller | IPv4, IPv6 |
Design | |
Produkttype | Bordplade router |
Produktfarve | Hvid |
Godkendelser | |
Certificering | CE, FCC, RoHS |
Emballage indhold | |
Kabler inkluderet | LAN (RJ-45) |
AC-adapter inkluderet | Ja |
Hurtig installationsvejledning | Ja |
Antenne | |
Antennedesign | Ekstern |
Antenner, antal | 4 |
Strømstyring | |
Strømkilde type | DC |
Udgangsspænding | 9 V |
Udgangsstrøm | 0,85 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Systemkrav | |
Understøttede Windows-operativsystemer | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | macOS |
Mac kompabilitet | Ja |
Vægt & størrelser | |
Bredde | 229,9 mm |
Dybde | 144,2 mm |
Højde | 36,9 mm |
Emballeringsdata | |
Pakkebredde | 290 mm |
Pakkedybde | 240 mm |
Pakkehøjde | 76 mm |
