Thunderbolt 3 with USB-C that Does It All

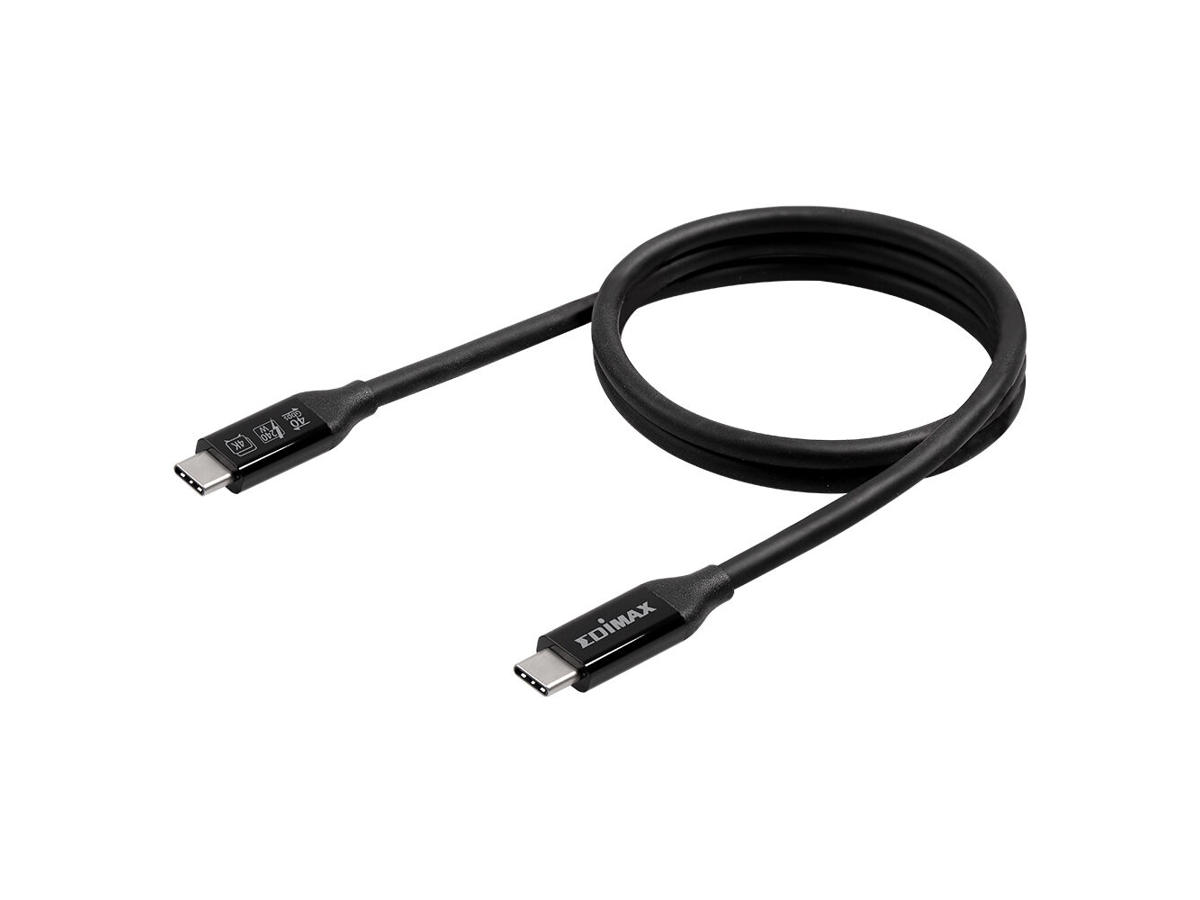

EDIMAX UC4 series USB4 Thunderbolt 3 cable assembles with USB-C connectors on both ends that offers high performance, cost-effective solutions for data, audio and video. Transferring up to 40Gbps and smart fast power charging of up to 240W applications for all Thunderbolt 3 USB-C devices.
Superfast Speed Up to 40Gbps
Between Thunderbolt 3 devices, the UC4 cable supports data, audio and video transfer up to an astonishing and superfast speed up to 40Gbps.
Fast Power Charging Up to 240W*
The UC4 series Thunderbolt 3 cable can deliver power in bi-direction up to 240W (5A/ 20V) to an USB Power Delivery (USB-PD) device. (*UC4-010TB V1 power delivery up to 100W only.)
HD Dual-4K or Single 5K Display
The Thunderbolt 3 cable delivers authentic high-quality audio and crystal-clear video to a 5K display or use the cable with a Thunderbolt 3 or 4 dock to dual 4K displays
Durable and Tangle Free
Designed with 30AWG copper wire conductor gauge and TPE (Thermoplastic Elastomer) elastic materials for tangle-free and durability and 25,000+ times insertion, 12,000+ times banding test.
Wide & Backward Compatible
The UC4 series cable works with all USB-C devices which are compatible with USB4/USB3.2/USB3.1/USB2.0, Thunderbolt 3, Thunderbolt 2, DisplayPort 1.4, DisplayPort Alternate Mode (DP Alt Mode), PCI-E 3.0 standards.
Flexible Daisy-Chain
With Thunderbolt 3 daisy chain technology, the UC4 cable can connect up to 6 Thunderbolt 3 USB-C enabled devices including hubs, docking stations, monitors, PCs, external graphics cards, SSD drives, displays and more.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Funktioner | |
Stik 1 | Hanstik |
Stik 2 | Hanstik |
Kabellængde | 0,5 m |
Produktfarve | Sort |
Thunderbolt udgave | 3 |
Dataoverførselshastighed (maks.) | 40 Gbit/sek. |
USB strømforsyning | Ja |
USB strømforsyning op til | 240 W |
USB type-C DisplayPort alternativ tilstand | Ja |
Maksimal opløsning | 5120 x 2880 pixel |
Antal understøttede skærme | 2 |
Materiale for kapper | Termoplastisk elastomer (TPE) |
Daisy kæde | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE |
