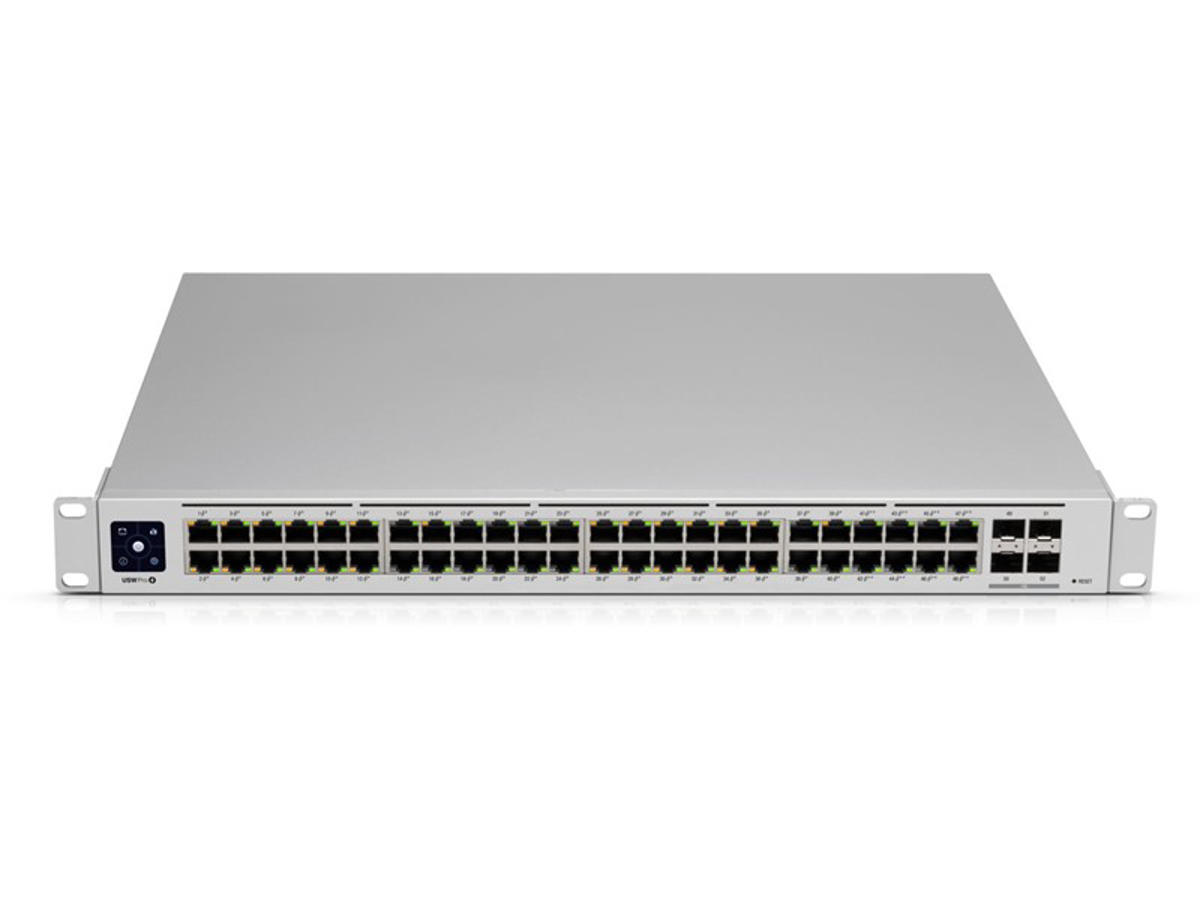

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP + modulslots | 4 |
Netværk | |
Netværksstandarder | IEEE 802.1x |
10G understøttelse | Ja |
Port-spejlning | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Spanning tree protokol | Ja |
VLAN understøttelse | Ja |
Dataoverførsel | |
Switch kapacitet | 176 Gbit/sek. |
Hastighed for videresendelse | 130,944 Mpps |
Sikkerhed | |
Godkendelsestype | IEEE 802.1x, RADIUS |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sølv |
LED-indikatorer | Aktivitet, Link, Hastighed |
Baggrundsbelysning | Ja |
Certificering | CE, FCC, IC ETSI300-019-1.4 |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
DC indgangsspænding | 11.5 V |
Indgangsstrøm | 5.22 A |
Strømforbrug (maks.) | 60 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 45 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 442,4 mm |
Dybde | 285,4 mm |
Højde | 43,7 mm |
Vægt | 4 kg |
Emballeringsdata | |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
