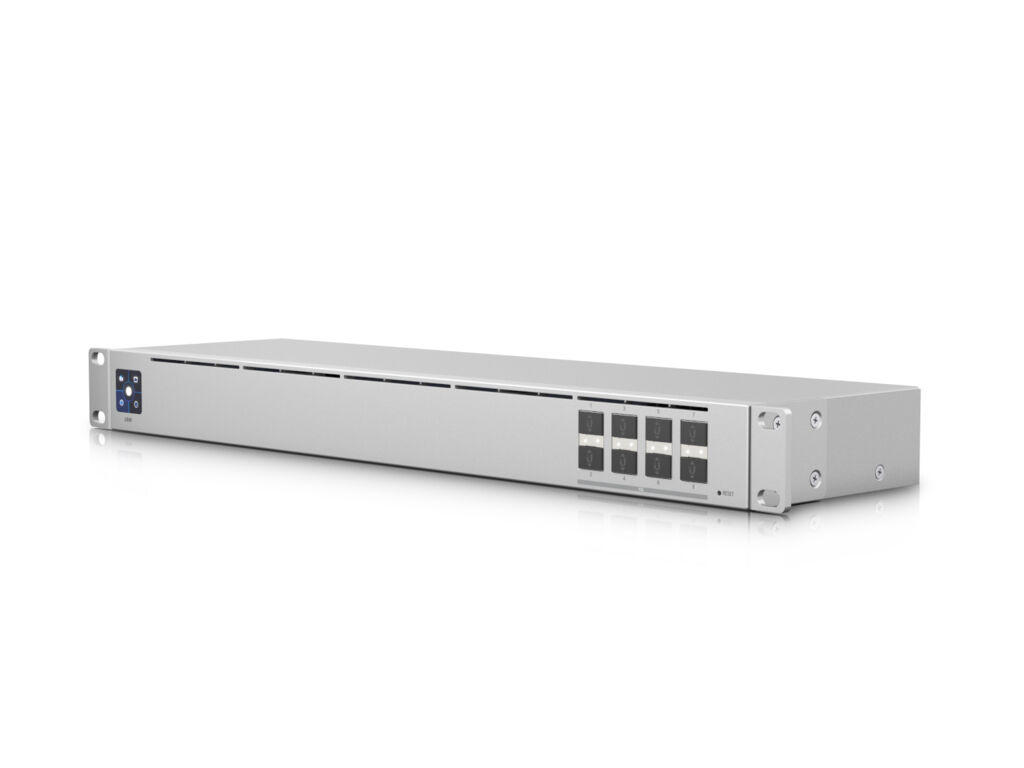

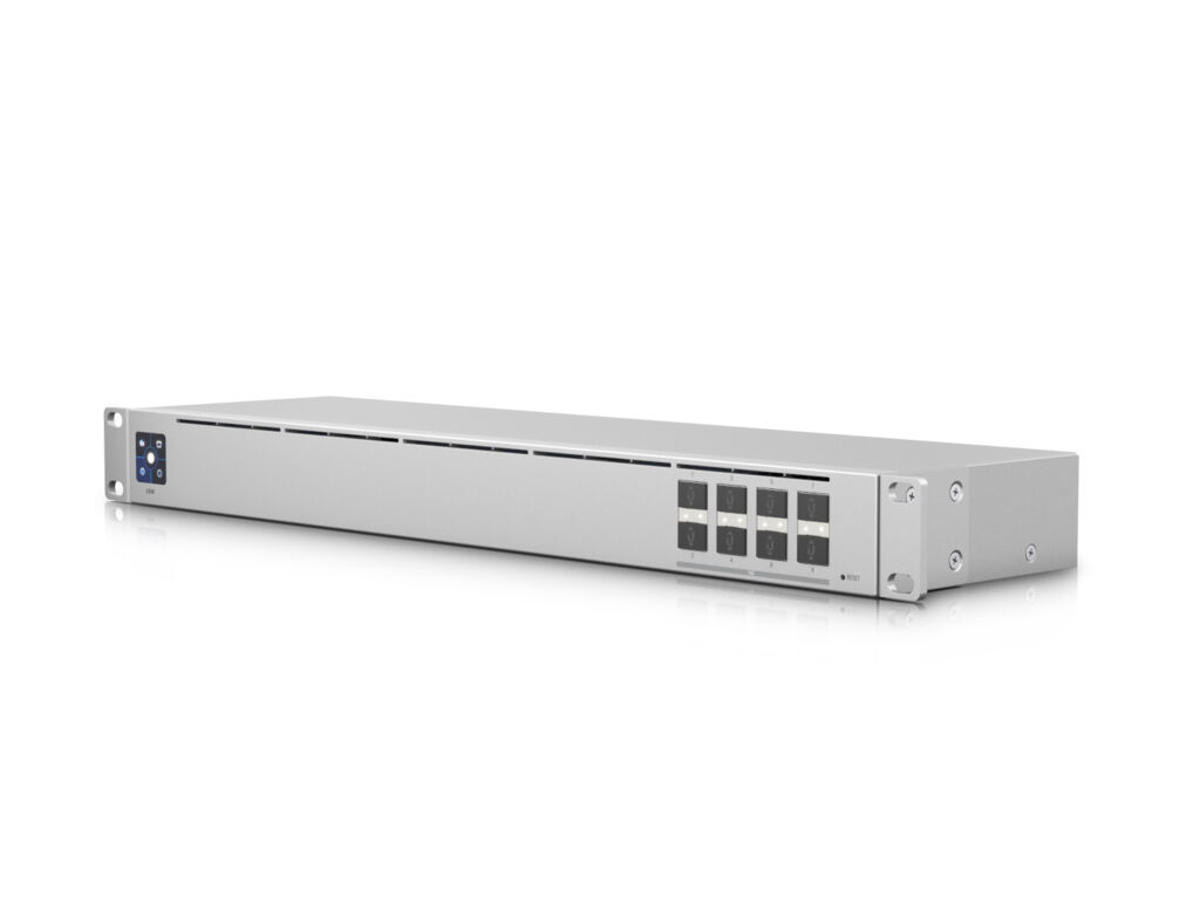

Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.
The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2 |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porttype | Ingen |
Antal SFP + modulslots | 8 |
Netværk | |
10G understøttelse | Ja |
Dataoverførsel | |
Switch kapacitet | 160 Gbit/sek. |
Gennemløb | 80 Gbit/sek. |
Hastighed for videresendelse | 119,04 Mpps |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sølv |
Husmateriale | Galvaniseret stål |
LED-indikatorer | System |
Certificering | CE, FCC, IC |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforbrug (maks.) | 30 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 442,4 mm |
Dybde | 120 mm |
Højde | 43,7 mm |
Vægt | 2,65 kg |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Rack monteringskit | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
