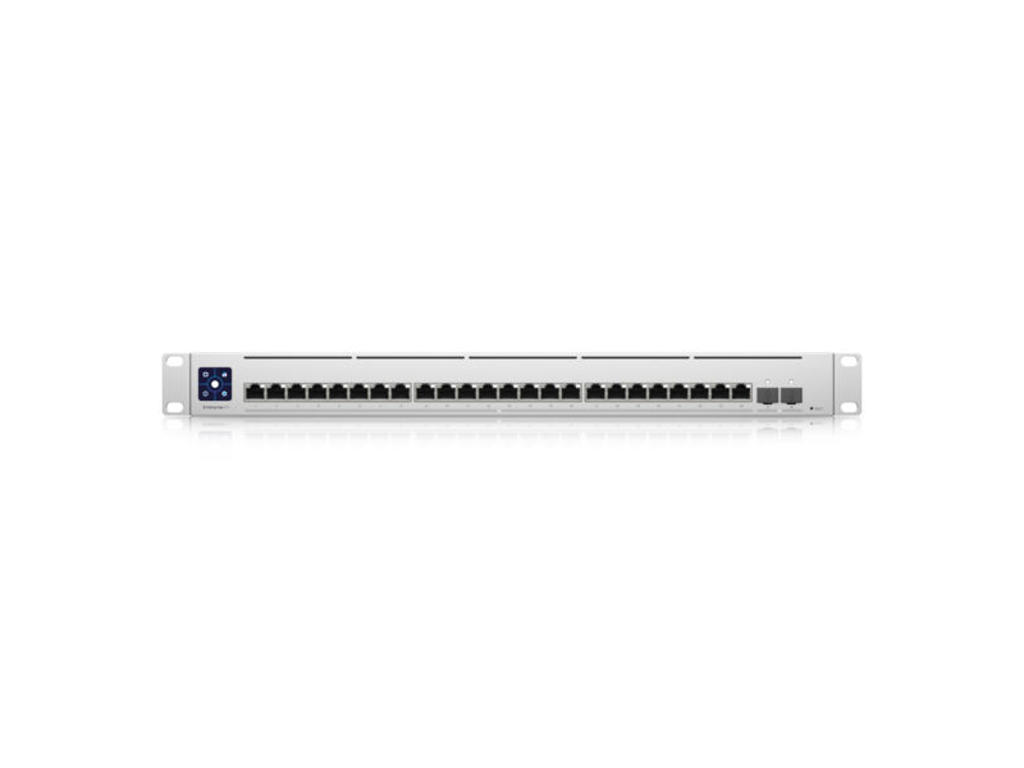

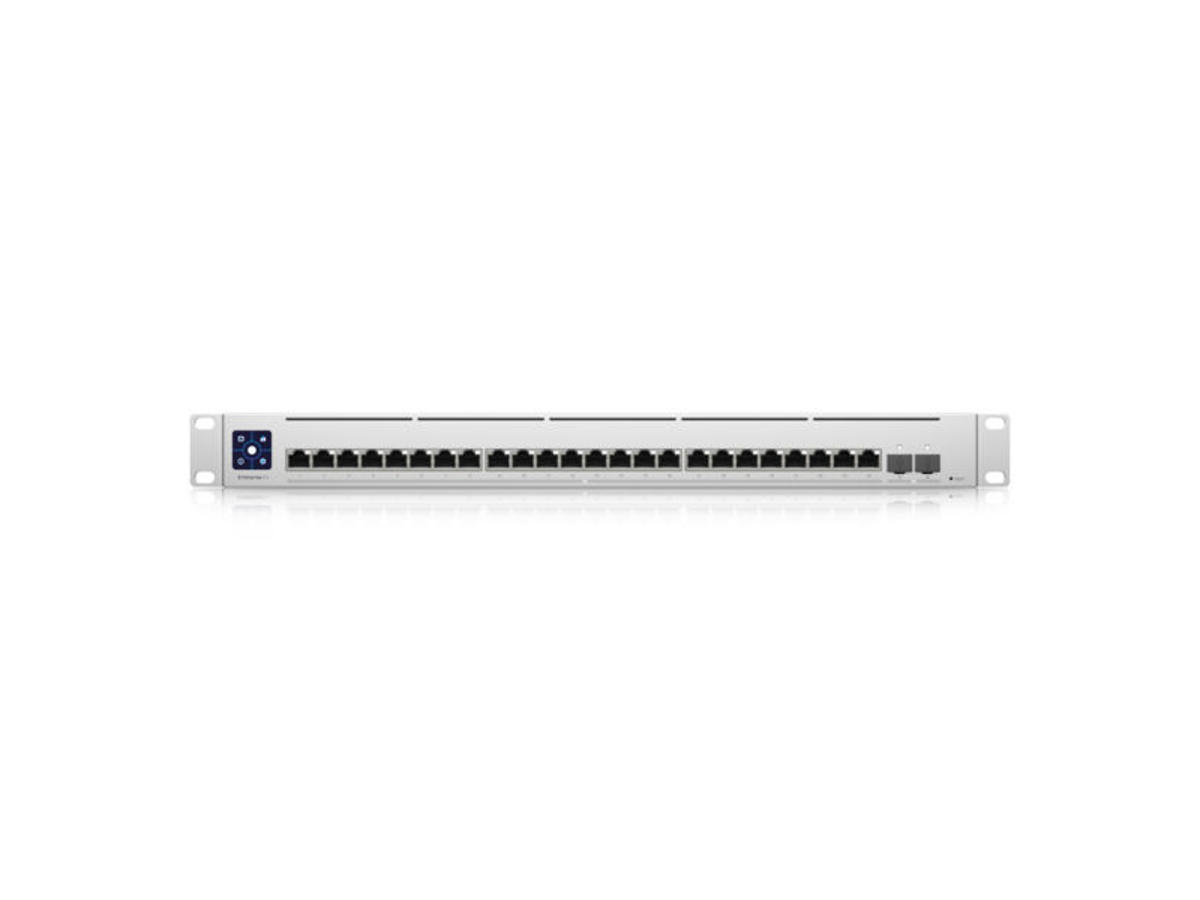

Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L3 |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
SSFP28-portmængde | 2 |
Netværk | |
10G understøttelse | Ja |
Ethernet LAN-datahastigheder | 10,1000,2500,5000,10000 Mbit/s |
Dataoverførsel | |
Switch kapacitet | 580 Gbit/sek. |
Gennemløb | 290 Gbit/sek. |
Hastighed for videresendelse | 431,52 Mpps |
Design | |
Stativ-montering | Ja |
Produktfarve | Rustfrit stål |
Husmateriale | Stål |
Knap til nulstilling | Ja |
LED-indikatorer | Aktivitet, Link |
Strømstyring | |
Strømforsyning inkluderet | Ingen |
Redundant strømforsyning | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
DC indgangsspænding | 11.5 V |
Indgangsstrøm | 8.7 A |
Strømforbrug (maks.) | 100 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 95% |
Vægt & størrelser | |
Bredde | 442 mm |
Dybde | 285 mm |
Højde | 44 mm |
Vægt | 4,47 kg |
Emballeringsdata | |
Brugervejledning | Ja |
Bæredygtighed | |
Bæredygtighedscertifikater | CE |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
