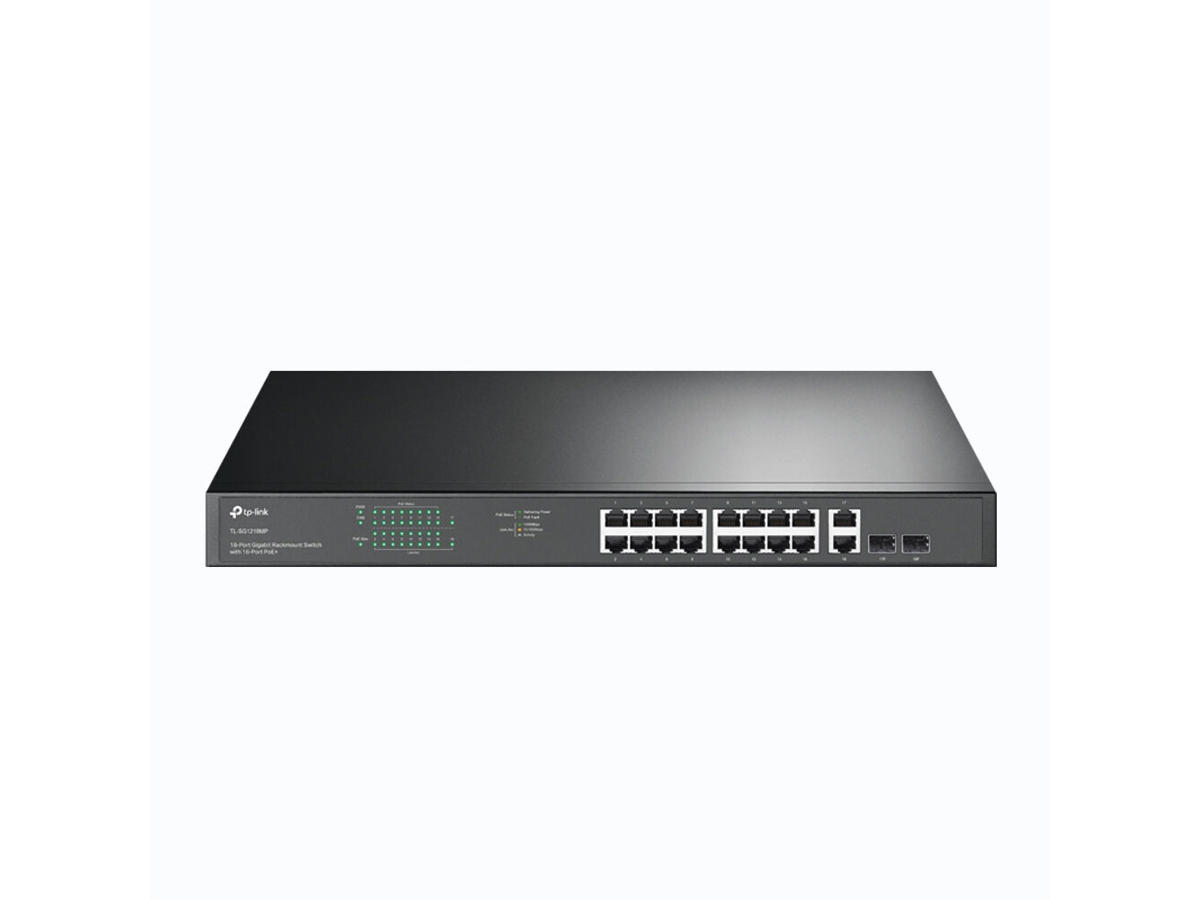

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Trafik klassificering | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 18 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 18 |
Kombo SFP porte, antal | 2 |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
MAC-adresse auto-forældelse understøttet | Ja |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 36 Gbit/sek. |
Hastighed for videresendelse | 26,78 Mpps |
Jumbo Frames support | Ja |
Jumbo rammer | 10000 |
Pakke bufferlager | 4,1 MB |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Antal blæsere | 2 blæser(e) |
Certificering | CE, FCC, RoHS |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforbrug (maks.) | 286,64 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 16 |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Total Power over Ethernet (PoE) | 250 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 977,44 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 180 mm |
Højde | 44 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
Pakkebredde | 250 mm |
Pakkedybde | 528 mm |
Pakkehøjde | 80 mm |
Pakkevægt | 3,05 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
