PoE Switches for Your Ultra Convenience

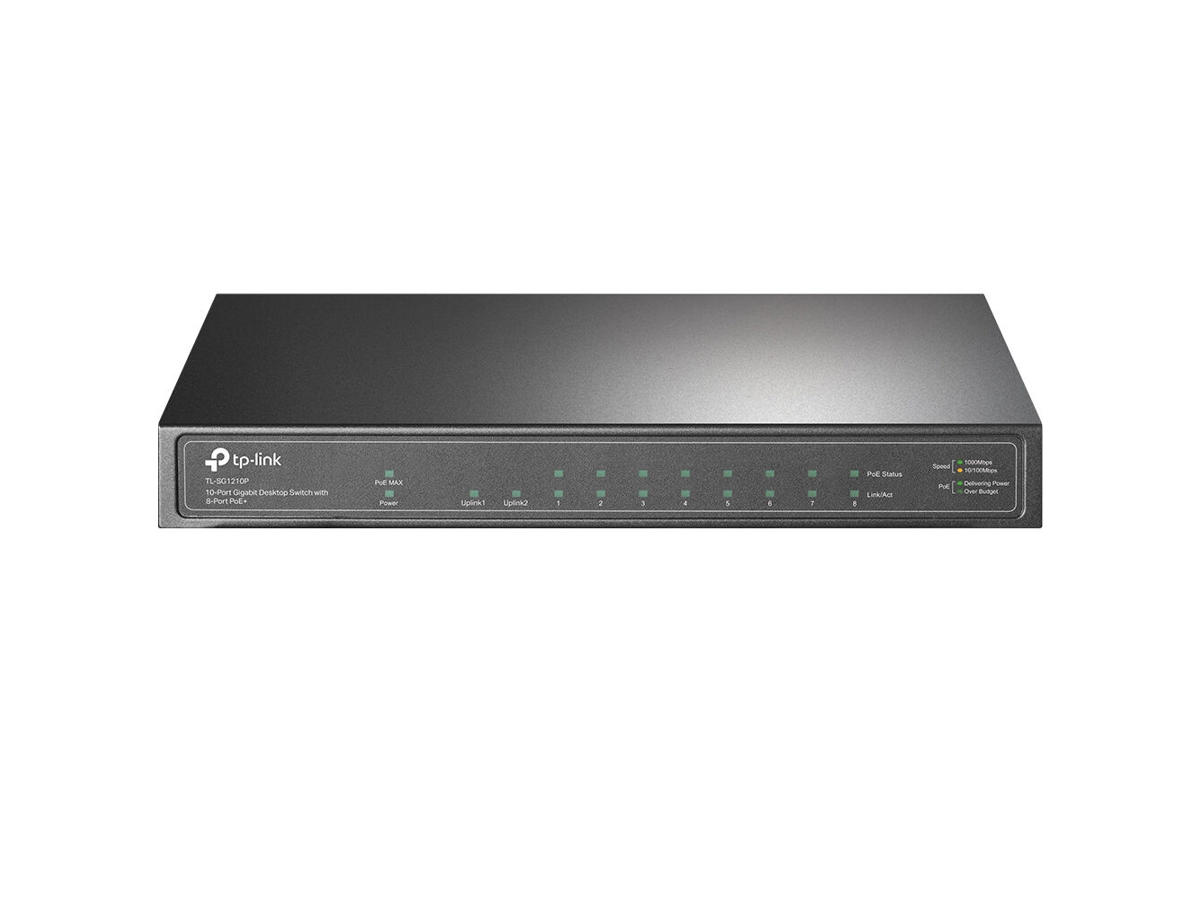

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 9 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 9 |
Antal SFP modulslots | 1 |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
MAC-adresse auto-forældelse understøttet | Ja |
Optisk fiber | |
Fiber ethernet kabelteknologi | 1000BASE-X |
Fibertype | Enkeltilstand |
Dataoverførsel | |
MAC adresselabel | 4000 entries |
Switch kapacitet | 20 Gbit/sek. |
Opbevar-og-frem | Ja |
Pakke bufferlager | 14,88 MB |
Sikkerhed | |
IGMP snooping | Ja |
Design | |
Produktfarve | Grå |
Husmateriale | Metal |
LED-indikatorer | Ja |
Certificering | CE, FCC, RoHS |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |
DC indgangsspænding | 53.5 V |
Indgangsstrøm | 1.31 A |
Strømforbrug (maks.) | 78,13 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 8 |
Total Power over Ethernet (PoE) | 63 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 266,42 BUT/t |
Vægt & størrelser | |
Bredde | 209 mm |
Dybde | 126 mm |
Højde | 26 mm |
Emballeringsdata | |
Hurtig start guide | Ja |
Brugervejledning | Ja |
Pakkebredde | 240 mm |
Pakkedybde | 315 mm |
Pakkehøjde | 70 mm |
Pakkevægt | 1,24 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
