What This Product Does

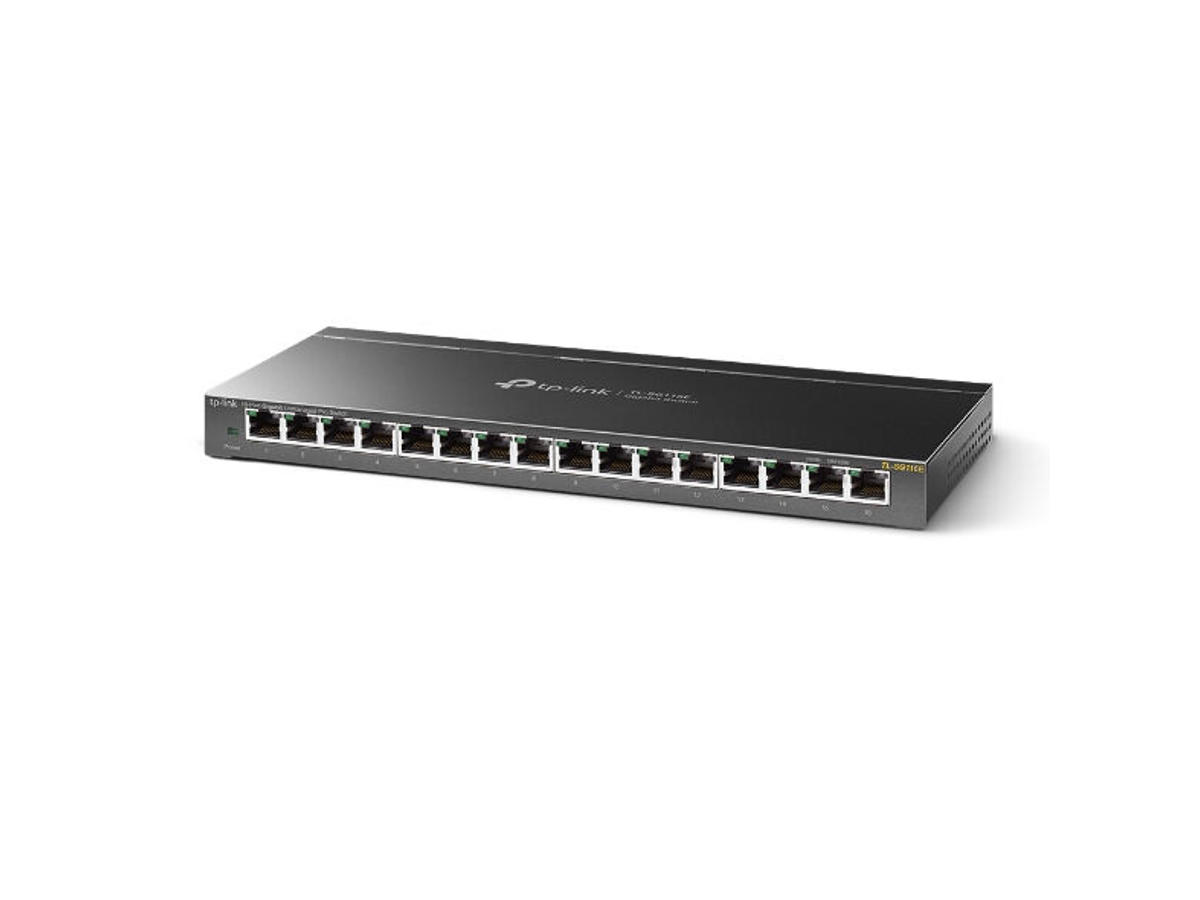

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Additional Software Features
TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 16 |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Port-spejlning | Ja |
Fuld duplex | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Kabellængde opdagelse | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN, Protocol-based VLAN |
Antal VLAN'er | 32 |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 32 Gbit/sek. |
Hastighed for videresendelse | 23,81 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 4 |
Jumbo Frames support | Ja |
Jumbo rammer | 10000 |
Pakke bufferlager | 4,1 MB |
Sikkerhed | |
IGMP snooping | Ja |
Loop beskyttelse | Ja |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Certificering | FCC, CE, RoHS |
Præstation | |
Plug and play | Ja |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |
Indgangsstrøm | 1 A |
Indgangsspænding | 12 V |
Strømforbrug (maks.) | 9,19 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 31,68 BUT/t |
Vægt & størrelser | |
Bredde | 286 mm |
Dybde | 111,7 mm |
Højde | 25,4 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Pakkebredde | 170 mm |
Pakkedybde | 412 mm |
Pakkehøjde | 70 mm |
Pakkevægt | 1,36 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
