What This Product Does

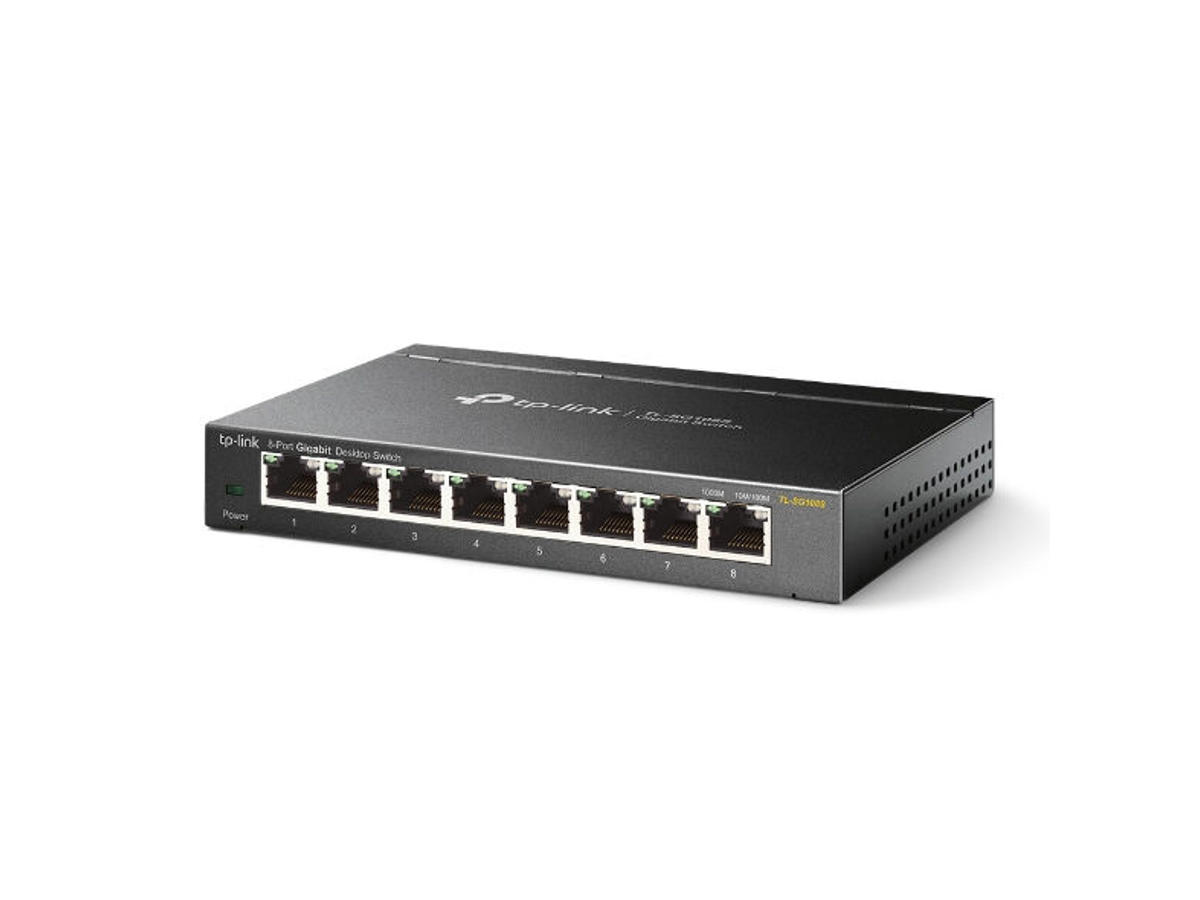

The TP-Link 8-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG108S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108S 8-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 8 |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 4000 entries |
Switch kapacitet | 16 Gbit/sek. |
Hastighed for videresendelse | 11,9 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 16000 |
Pakke bufferlager | 1,5 MB |
Sikkerhed | |
IGMP snooping | Ja |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
LED-indikatorer | Ja |
Kan monteres på væggen | Ja |
Certificering | CE, FCC ,RoHS |
Præstation | |
Plug and play | Ja |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |
Indgangsstrøm | 0.6 A |
Indgangsspænding | 9 V |
Udgangsspænding | 9 V |
Strømforbrug (maks.) | 3,3 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 158 mm |
Dybde | 100,6 mm |
Højde | 25,4 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
AC-adapter inkluderet | Ja |
Pakketype | Kasse |
Gummifødder | Ja |
Pakkebredde | 191 mm |
Pakkedybde | 130 mm |
Pakkehøjde | 92 mm |
Pakkevægt | 520 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
