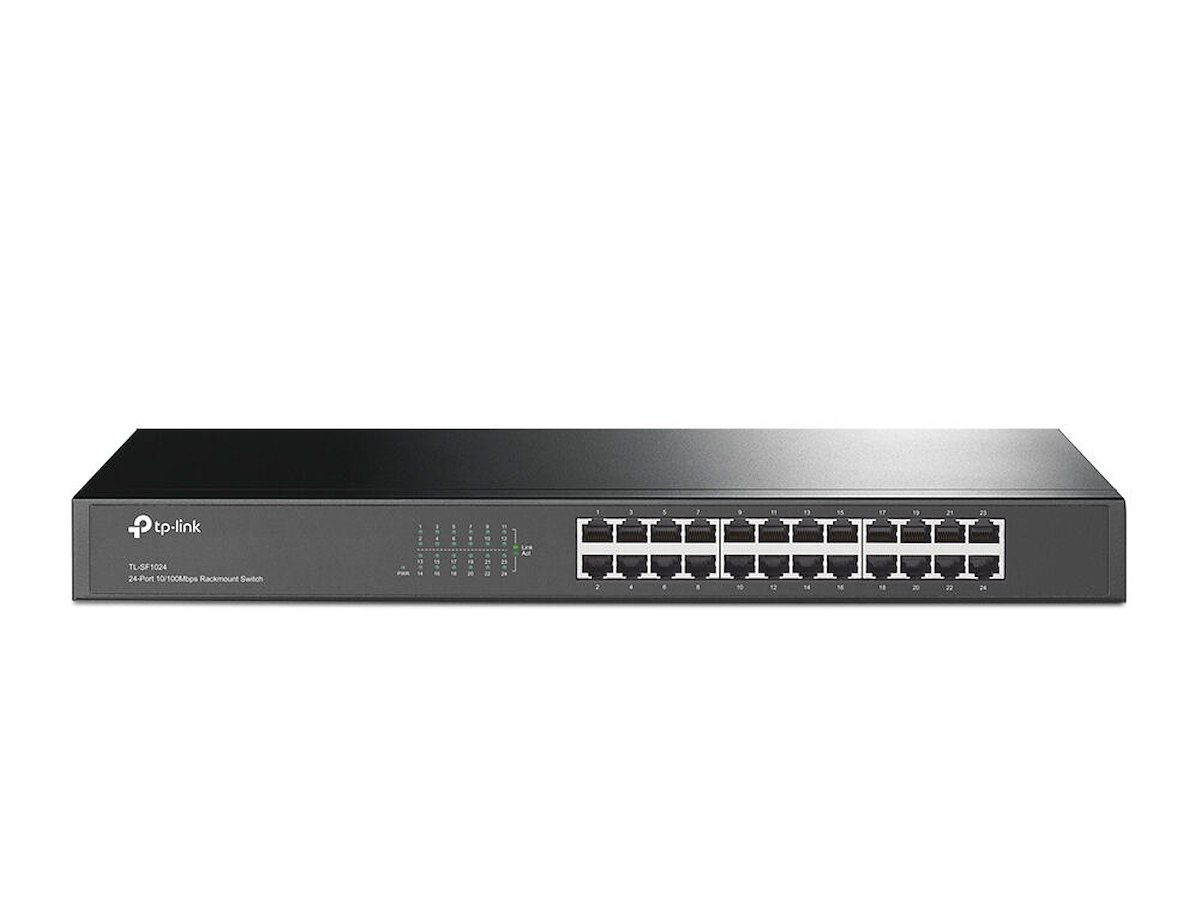

TP-Link TL-SF1024 Ikke administreret Fast Ethernet (10/100) 1U Sort
Varenummer: TL-SF1024 V9
.
DKK 678,13 / Stk
DKK 542,50 ekskl. moms
  •
TP-Link TL-SF1024. Switch-type: Ikke administreret. Basis omskiftning RJ-45 Ethernet porttype: Fast Ethernet (10/100), Basis omskiftning RJ-45 Ethernet porte, antal: 24. Fuld duplex. MAC adresselabel: 8000 entries, Switch kapacitet: 4,8 Gbit/sek.. Netværksstandarder: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Stativ-montering, Formfaktor: 1U


Mere information

  • WHAT THIS PRODUCT DOES
    The TL-SF1024 with TP-LINK Green Technology is an Environmentally-friendly and competitive choice for small business. It provides 8 10/100Mps Auto-Negotiation RJ45 ports and 2 10/100/1000Mbps Auto-Negotiation RJ45 ports, all RJ45 ports Support Auto-MDI/MDIX function. TL-SF1024 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into Gigabit solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

    GO GREEN WITH YOUR ETHERNET
    You now have the choice to go green when upgrading to a gigabit network! This new product TL-SF1024 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
    Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SF1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
    Power Budget According to Cable Length
    Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SF1024analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    Gigabit Uplink
    The TL-SF1024 has 8 fast Ethernet ports and 2 Gigabit uplink port. The Gigabit uplink port provides bandwidth access of up to 1000Mbps. Due to the fact that network upgrades tend to be progressive over time, your network will tend to become mixed with both Fast 100Mbps Ethernet and Gigabit.TL-SF1024 is ideal for situations such as these to mitigate throughput issues and coordinate work efficiently; Allowing your organization retain most of your network investments, while enhancing network performance quickly.

    More Efficient
    Utilizing non-blocking switching architecture, TL-SF1024 can forward and filter packets at full wire-speed for maximum throughput. Moreover, 100% data filtering rate eliminates all error packets and make your network work more efficiently.

    Easy to Use
    When powered on, it can work automatically without any pre-set. All ports support Auto-Negotiation and Auto-MDI/MDIX function. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 24
    Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100)
    Netværk
    Netværksstandarder IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX
    Fuld duplex Ja
    Halv dupleks Ja
    Flowkontrol support Ja
    Auto MDI/MDI-X Ja
    Auto-forhandling Ja
    Dataoverførsel
    MAC adresselabel 8000 entries
    Switch kapacitet 4,8 Gbit/sek.
    Hastighed for videresendelse 3,57 Mpps
    Opbevar-og-frem Ja
    Maksimal dataoverførselshastighed 0,2 Gbit/sek.
    Pakke bufferlager 2 MB
    Protokoller
    Understøttede netværksprotokoller CSMA/CD, TCP/IP
    Design
    Stativ-montering Ja
    Stabelbar Ingen
    Formfaktor 1U
    Produktfarve Sort
    LED-indikatorer Ja
    Certificering FCC, CE
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 3,19 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C, 32 - 122 °F
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 440 mm
    Dybde 180 mm
    Højde 44 mm
    Emballeringsdata
    Hurtig start guide Ja
    Pakkebredde 528 mm
    Pakkedybde 250 mm
    Pakkehøjde 80 mm
    Pakkevægt 2,34 kg
    Logistik data
    Harmoniseret systemkode (HS) 85176990
    Andre funktioner
    Dimensioner (BxDxH) 440 x 180 x 44 mm
    Forbindelsesteknologi Ledningsført
    Båndbredde 4,8 Gbit/sek.
    Størrelse 48,3 cm (19")
    Forbindelses-LED'er Y
    Dimensioner (BxDxH) (efter britisk standard) 439,4 x 180,3 x 43,2 mm (17.3 x 7.1 x 1.7")
