What This Product Does

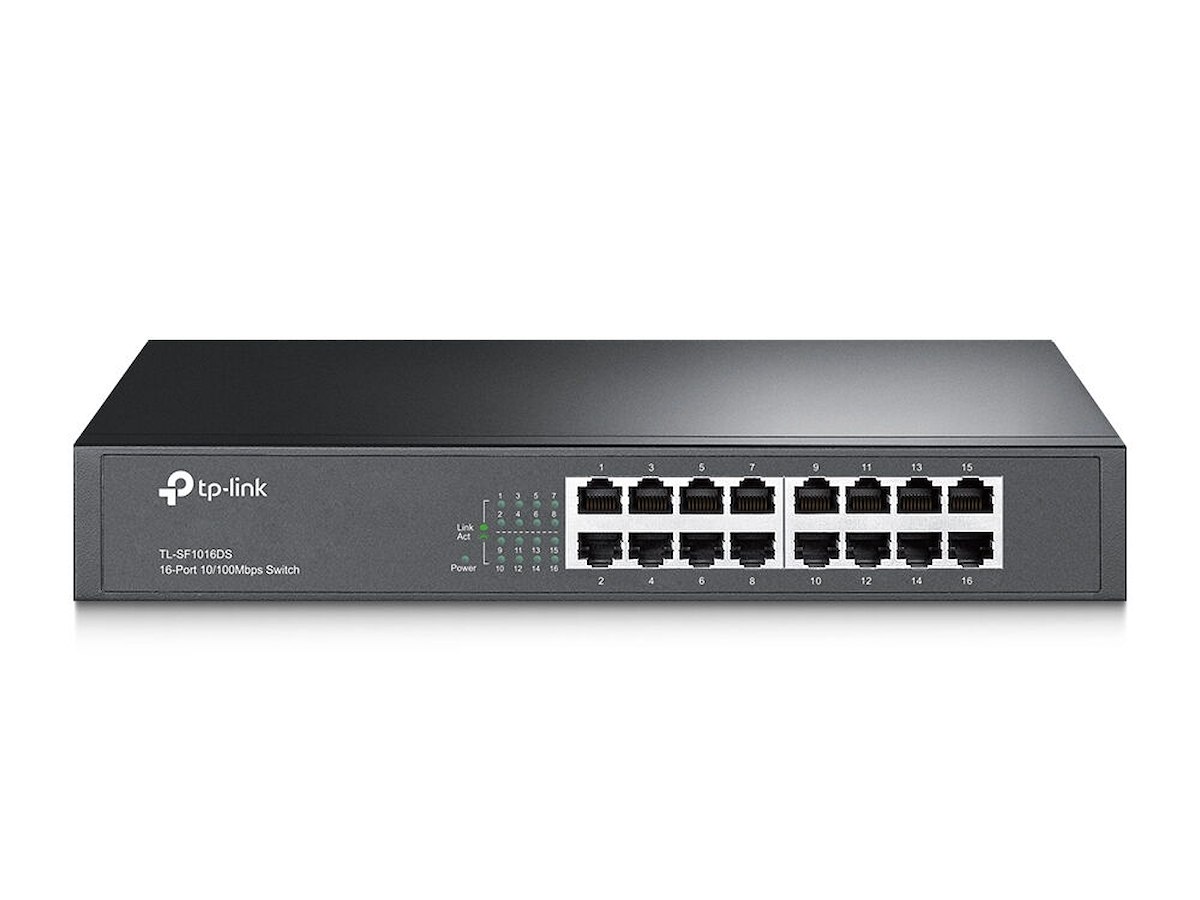

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Netværk | |
Netværksstandarder | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 3,2 Gbit/sek. |
Understøttede dataoverførselshastigheder | 10/100 Mbps |
Hastighed for videresendelse | 2,38 Mpps |
Opbevar-og-frem | Ja |
Maksimal dataoverførselshastighed | 0,1 Gbit/sek. |
Jumbo Frames support | Ja |
Jumbo rammer | 2000 |
Pakke bufferlager | 2 MB |
Sikkerhed | |
Filtrering af MAC-adresser | Ja |
Protokoller | |
Understøttede netværksprotokoller | CSMA/CD, TCP/IP |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
LED-indikatorer | Link, Strøm |
Certificering | FCC, CE, RoHS |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforbrug (maks.) | 2,06 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 2,06 BUT/t |
Vægt & størrelser | |
Bredde | 294 mm |
Dybde | 180 mm |
Højde | 44 mm |
Emballeringsdata | |
Pakkebredde | 400 mm |
Pakkedybde | 250 mm |
Pakkehøjde | 80 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner | |
Dimensioner (BxDxH) | 294 x 180 x 44 mm |
Forbindelsesteknologi | Ledningsført |
Effektkrav | 100 - 240VAC, 50/60Hz |
Wi-Fi | Ingen |
