PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment

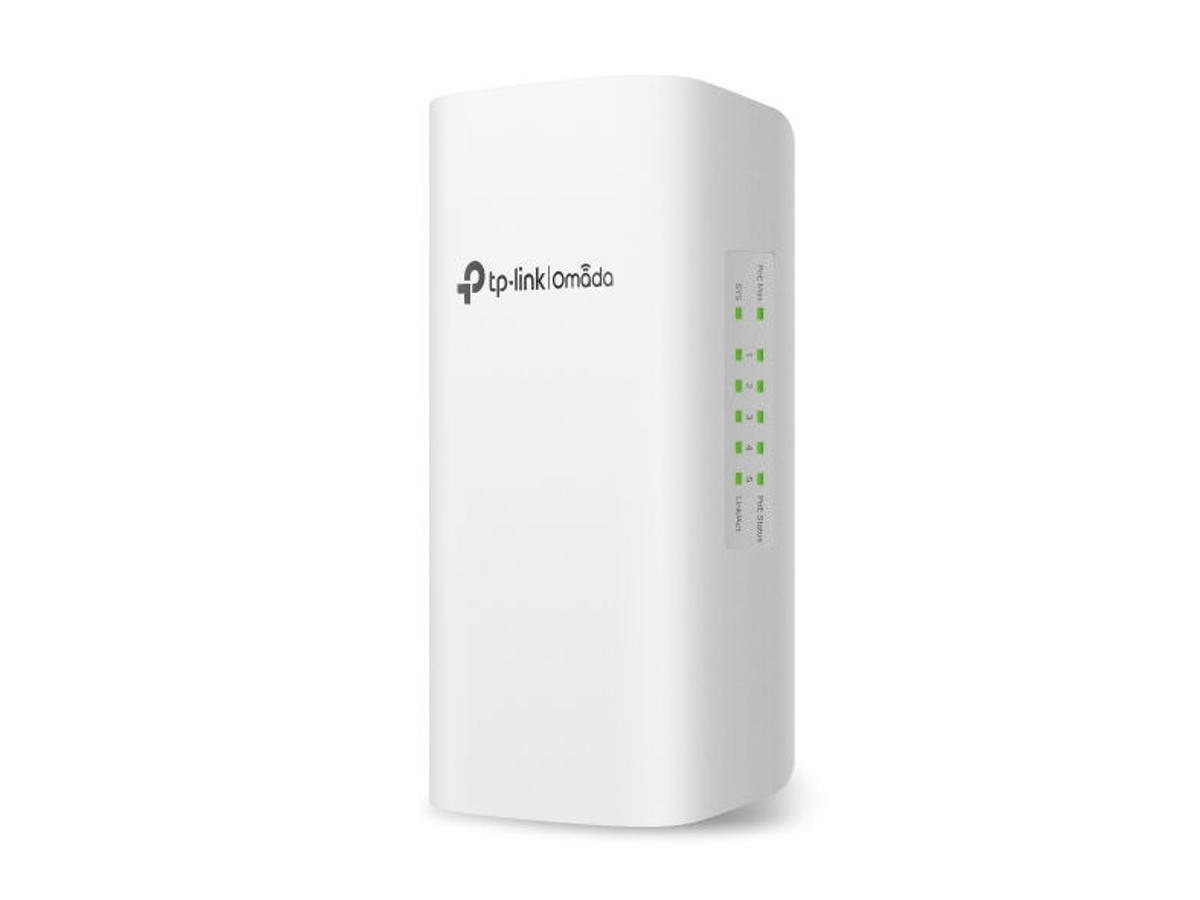

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.
One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.
Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.
Value-Added Features Foster Touchpoint Experiences
Static Routing
Helps route internal traffic for more efficient use of network resources.
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L2+ |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Cloud-administreret | Ja |
ARP inspektion | Ja |
MIB support | Y |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 4 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
Antal 10G Ethernet-porte (kobber) | 4 |
Netværk | |
Netværksstandarder | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ja |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 100BASE-T |
Understøttede kabeltyper | Cat5, Cat5e |
Port-spejlning | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Spanning tree protokol | Ja |
IPv4-ruter | 32 |
IPv6-ruter | 32 |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Voice VLAN |
Antal VLAN'er | 4000 |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 10 Gbit/sek. |
Jumbo Frames support | Ja |
Jumbo rammer | 9 |
Pakke videresendelsesrate (1 Gbps) | 7440 pps |
Pakke bufferlager | 4,1 MB |
Sikkerhed | |
DHCP funktioner | DHCP relay, DHCP server |
Adgangskontrolliste (ACL) | Ja |
Adgangskontrolliste (ACL) IPv4 indtastninger | 32 |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | 802.1x RADIUS |
Filtrering af MAC-adresser | Ja |
IP-MAC-portbinding | Ja |
Godkendelse | MAC-baseret godkendelse, Portbaseret godkendelse |
Beskyttelse af adgangskode | Ja |
Multicast funktioner | |
Multicast-understøttelse | Ja |
MAC-adresse tabel (multicast) | 8000 entries |
IPv4 multicast indtastninger | 511 |
IPv6 multicast indtastninger | 511 |
Protokoller | |
IPv4 & IPv6 funktioner | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Hvid |
LED-indikatorer | Ja |
Tekniske detaljer | |
Compliance certificates | CE, RoHS |
Strømstyring | |
Strømkilde | DC/PoE |
Strømforsyning inkluderet | Ja |
Strømforbrug (typisk) | 71,5 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) effekt pr. port | 64 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 60 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 243,99 BUT/t |
Vægt & størrelser | |
Bredde | 170 mm |
Dybde | 100 mm |
Højde | 38,5 mm |
Bæredygtighed | |
Bæredygtighedscertifikater | CE, RoHS |
Overholdelse af bæredygtighed | Ja |
