5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation
Easily Expand Your Network and Save Energy

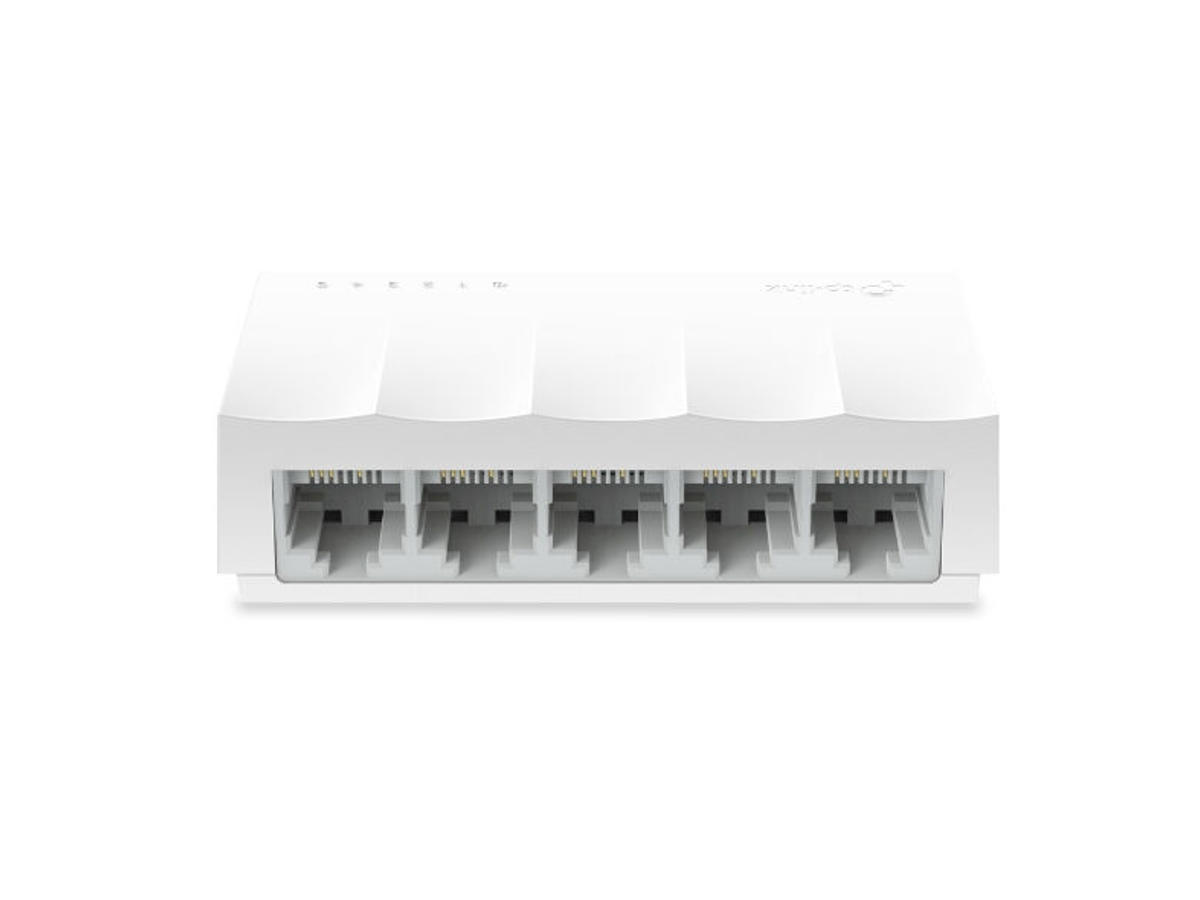

5-Port 10/100 Mbps Desktop Switch
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 2000 entries |
Switch kapacitet | 1 Gbit/sek. |
Hastighed for videresendelse | 0,7 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 2000 |
Design | |
Stativ-montering | Ingen |
Produktfarve | Hvid |
Husmateriale | Plast |
LED-indikatorer | Aktivitet, Link, Strøm |
Kan monteres på væggen | Ingen |
Certificering | CE, FCC, RoHS |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |
Indgangsstrøm | 0.6 A |
Indgangsspænding | 5 V |
Strømforbrug (maks.) | 1,65 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 5,627 BUT/t |
Vægt & størrelser | |
Bredde | 83,6 mm |
Dybde | 45,7 mm |
Højde | 22,8 mm |
Emballeringsdata | |
Hurtig start guide | Ja |
Pakketype | Kasse |
Pakkebredde | 82 mm |
Pakkedybde | 88 mm |
Pakkehøjde | 84 mm |
Pakkevægt | 80 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
