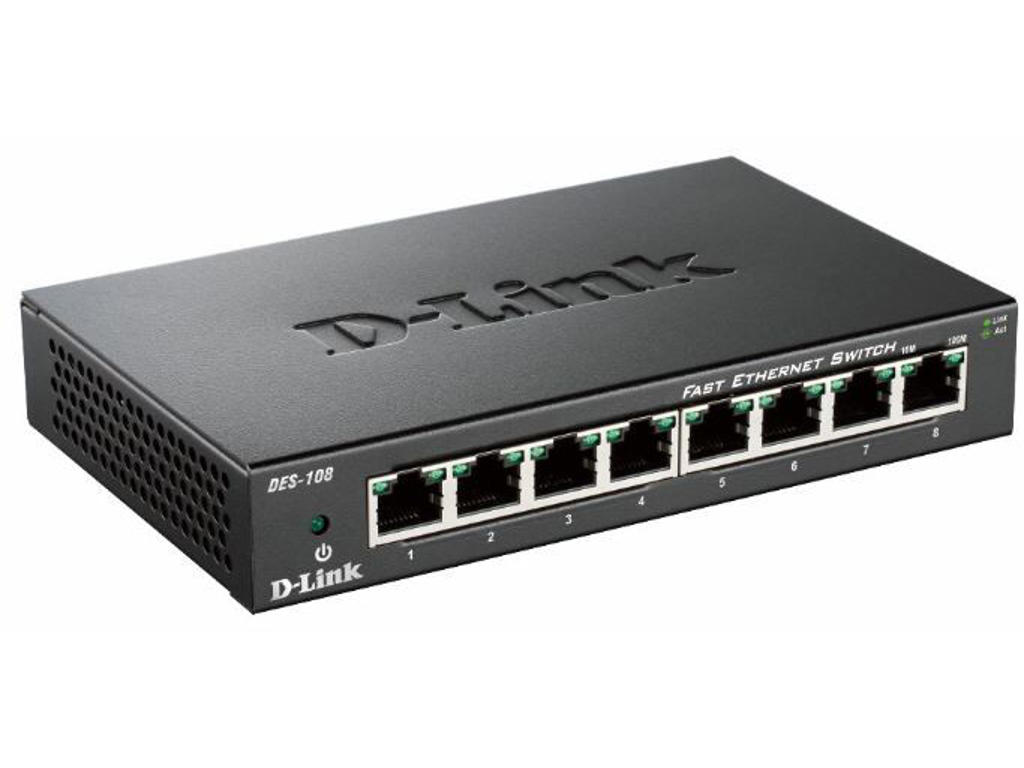

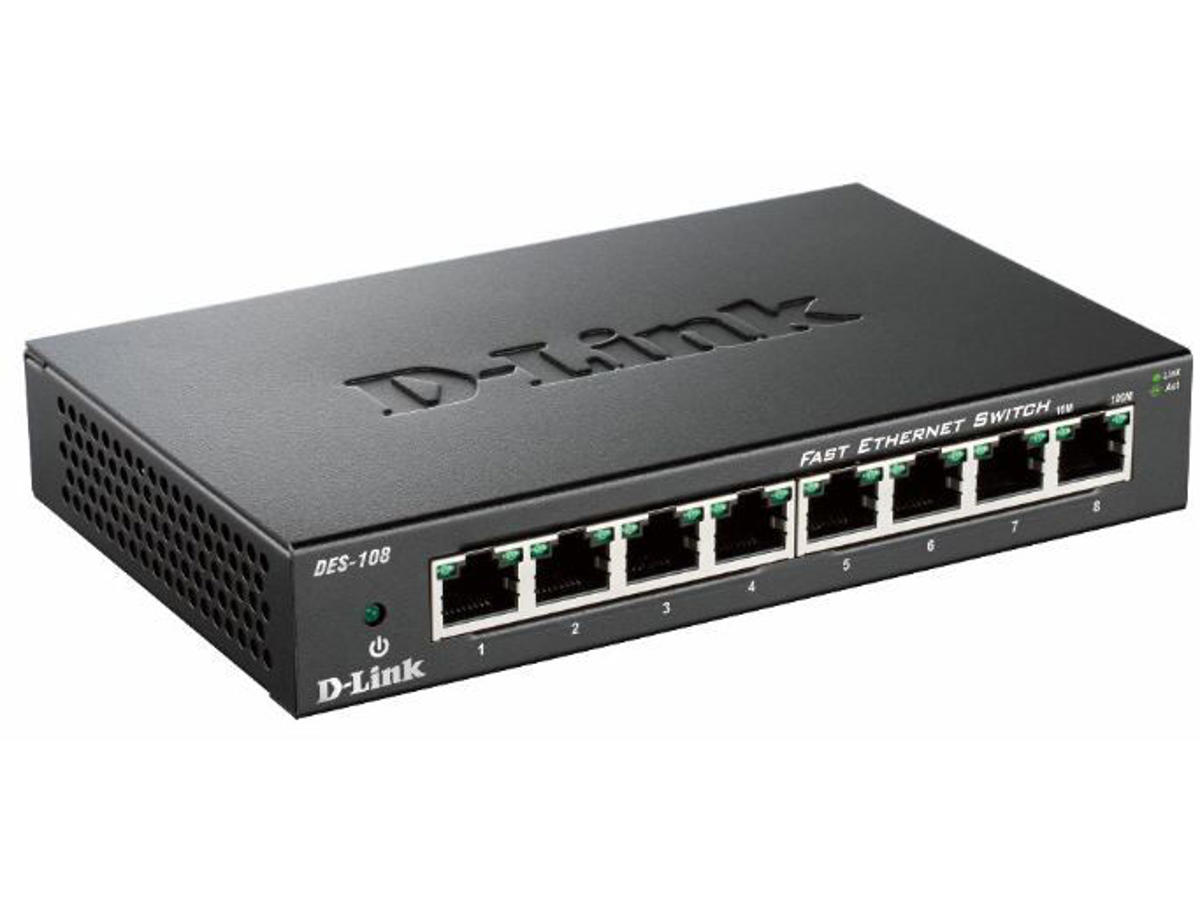

D-Link DES-108 Sort
Varenummer: DES-108/E
.
DKK 161,25 / Stk
DKK 129,00 ekskl. moms
  •
D-Link DES-108. Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex. MAC adresselabel: 1000 entries, Switch kapacitet: 1,6 Gbit/sek.. Netværksstandarder: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Strømstik: DC-in-stik


Mere information

  • - Plug and Play operation
    - 8 Fast Ethernet ports
    - Non-blocking architecture: simultaneous full speed on all ports
    - Fanless, silent operation to fit in any environment
    - Quality of Service (QoS) queues for traffic prioritisation
    - Solidly built with metal housing
    - D-Link Green™ technology, saves energy and increases the product’s lifespan

    D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.

    Robust design

    The DES-108 is designed with durability and performance in mind. The sturdy metal housing will protect it against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

    QoS (Quality of Service)

    Despite being an unmanaged, Plug and Play switch, the DES-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

    Power-saving technology

    The DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

  • Administrationsfunktioner
    Servicekvalitet support (QoS) Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Strømstik DC-in-stik
    Netværk
    Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Kobber ethernet kabelteknologi 100BASE-TX, 10BASE-T
    Fuld duplex Ja
    Flowkontrol support Ja
    Auto MDI/MDI-X Ja
    Dataoverførsel
    MAC adresselabel 1000 entries
    Switch kapacitet 1,6 Gbit/sek.
    Understøttede dataoverførselshastigheder 10/100 Mbps
    Opbevar-og-frem Ja
    Maksimal dataoverførselshastighed 0,1 Gbit/sek.
    Jumbo Frames support Ja
    Pakke bufferlager 0,768 MB
    Sikkerhed
    Filtrering af MAC-adresser Ja
    Design
    Stativ-montering Ingen
    Produktfarve Sort
    Husmateriale Metal
    LED-indikatorer Link, Strøm
    Certificering RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
    Præstation
    Gennemsnitstid mellem fejl (MTBF) 511323 t
    Tekniske detaljer
    Forsendelseskassens højde (indvendig) 44,3 cm
    Forsendelseskasses kassens bredde (indvendig) 26 cm
    Forsendelseskassens længde (indvendig) 37 cm
    Forsendelsesemballage nettovægt 6,1 kg
    Produkter pr. forsendelseskasse (indvendig) 10 stk
    Palle bruttovægt (luft) 357,5 kg
    Antal papkasser pr. palle (luft) 48 stk
    Antal pr. palle (luft) 480 stk
    Pallens bruttolængde 102 cm
    Pallens bruttobredde 122 cm
    Pallehøjde (luft) 2,07 m
    Palle bruttovægt (hav) 357,5 kg
    Antal papkasser pr. palle (hav) 48 stk
    Antal pr. palle (hav) 480 stk
    Pallehøjde (hav) 2,07 m
    Forsendelseskassens bruttovægt (indvendig) 7 kg
    Strømstyring
    Indgangsstrøm 1 A
    Indgangsspænding 5 V
    Strømforbrug (typisk) 4,5 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -10 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Emballeringsdata
    Pakkebredde 208 mm
    Pakkedybde 250 mm
    Pakkehøjde 68 mm
    Pakkevægt 610 g
    Logistik data
    Harmoniseret systemkode (HS) 85176990
    Andre funktioner
    Dataoverførselshastighed 200 Mbit/s
    Dimensioner (BxDxH) 162 x 102 x 28 mm
