Lightning-Fast Connection with Full 10GE Ports

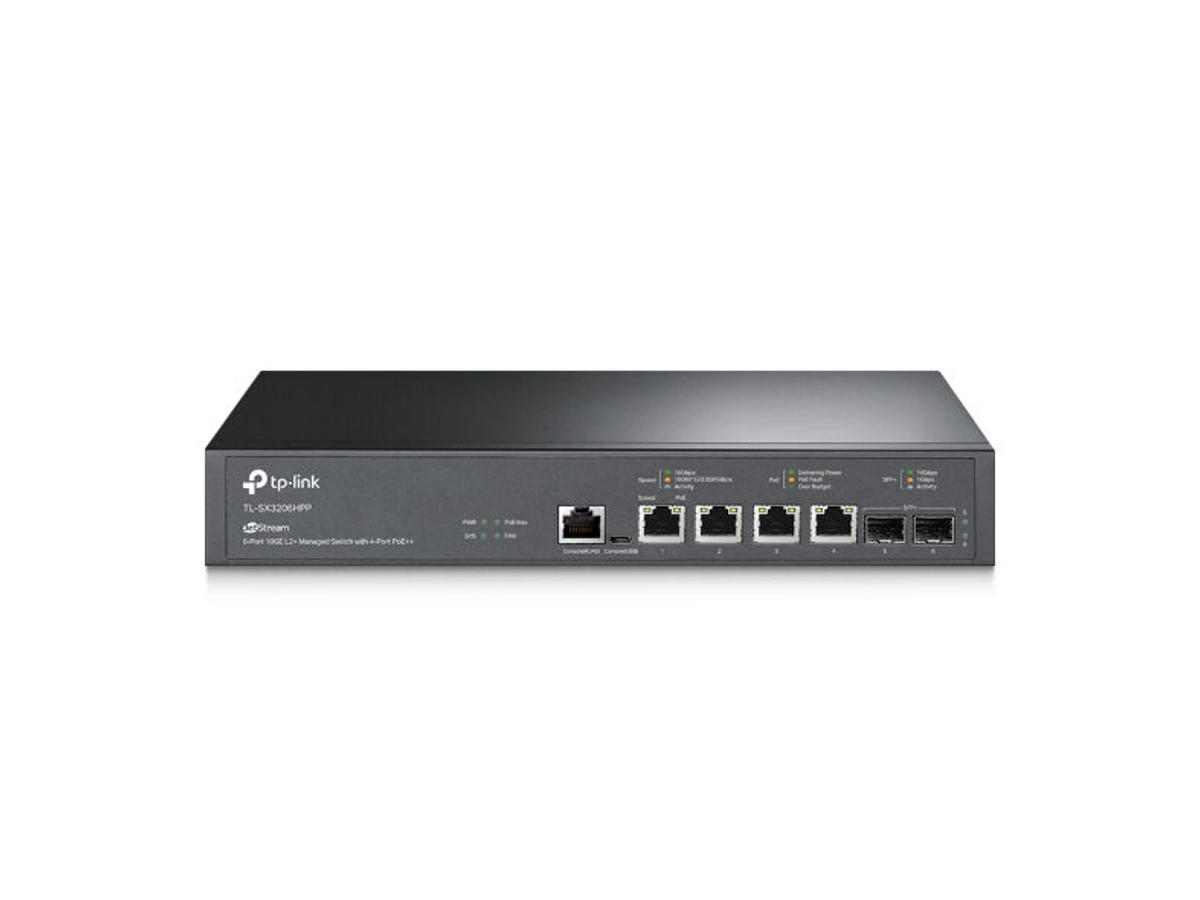

Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.
Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2+ |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Cloud-administreret | Ja |
ARP inspektion | Ja |
Konfigurerer lokationsindstillinger (CLI) | Ja |
System hændelseslog | Ja |
MIB support | Yes |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 4 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
Antal SFP + modulslots | 2 |
Port til konsol | RJ-45/Micro-USB |
Strømstik | AC-in jack |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
10G understøttelse | Ja |
Port-spejlning | Ja |
IP-routing | Ja |
Routing indtastninger | 512 |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Spanning tree protokol | Ja |
Head-of-line (HOL) blokering | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Private VLAN, Tagged VLAN, VLAN-kortlægning, Voice VLAN |
Antal VLAN'er | 4000 |
Dataoverførsel | |
MAC adresselabel | 32000 entries |
Switch kapacitet | 120 Gbit/sek. |
Hastighed for videresendelse | 89,28 Mpps |
Statisk rute | Ja |
Stastiske routere | 48 |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Sikkerhed | |
DHCP funktioner | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | HTTPS, SSL/TLS |
SSH/SSL support | Ja |
Loop beskyttelse | Ja |
BPDU filtrering/beskyttelse | Ja |
Godkendelse | Gæste VLAN |
Godkendelsestype | AAA, RADIUS, TACACS+ |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
Protokoller | |
Administrationsprotokoller | SNMP v1/v2c/v3 |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
LED-indikatorer | Ja |
Antal blæsere | 2 blæser(e) |
Certificering | CE, FCC, RoHS |
Præstation | |
Minimum systemkrav | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Strømforbrug (maks.) | 244,9 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 4 |
Power over Ethernet (PoE) effekt pr. port | 60 W |
Total Power over Ethernet (PoE) | 200 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Varmeafgivelse | 835,67 BUT/t |
Vægt & størrelser | |
Bredde | 294 mm |
Dybde | 180 mm |
Højde | 44 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
Rack monteringskit | Ja |
Pakkebredde | 400 mm |
Pakkedybde | 250 mm |
Pakkehøjde | 80 mm |
Pakkevægt | 2,62 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
