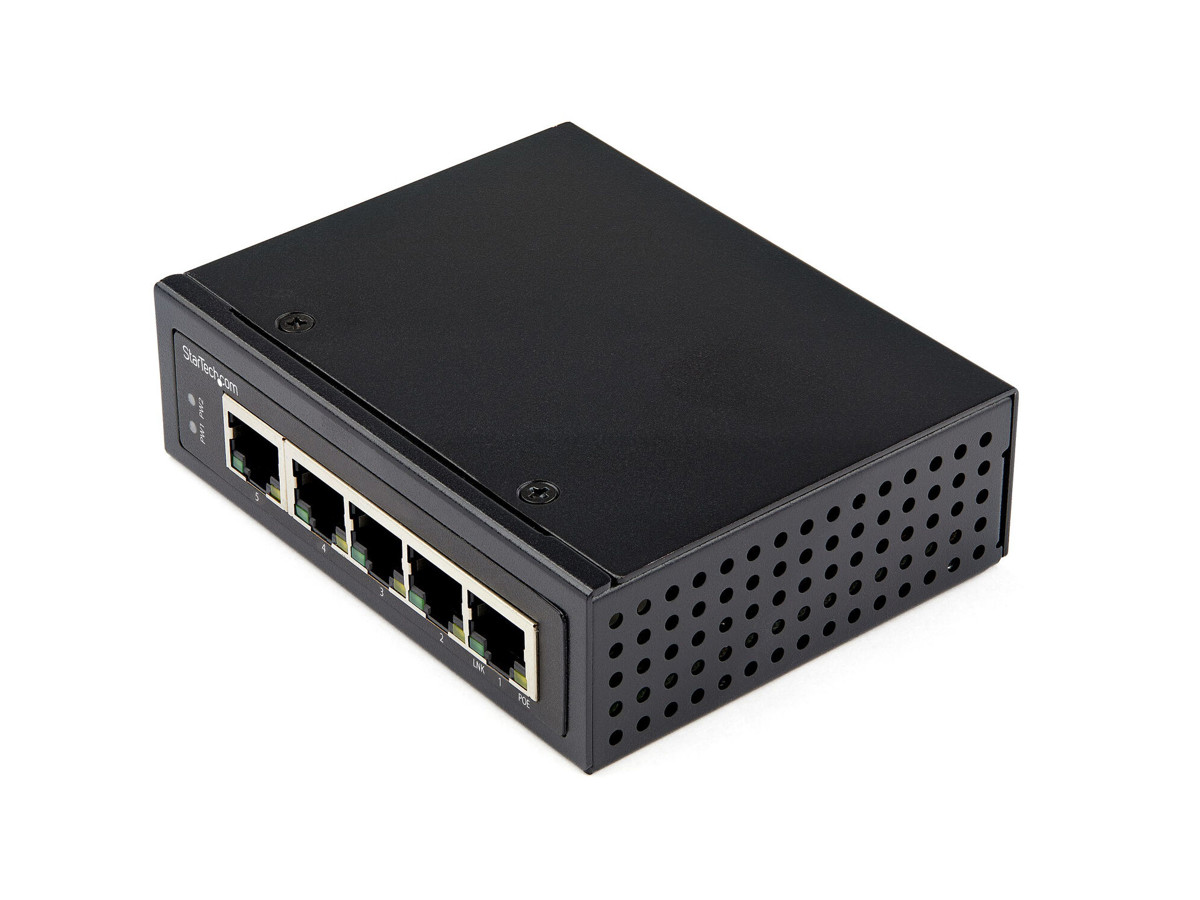

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
Cameras
Sensors
Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
Operating Temperature Range: -40 C to 75 C
IP-30 rated housing
Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
The StarTech.com Advantage
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
10G understøttelse | Ingen |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Dataoverførsel | |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Protokoller | |
Understøttede netværksprotokoller | CSMA/CD |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
Husmateriale | Stål |
LED-indikatorer | Ja |
Kode for international beskyttelse (IP) | IP30 |
Kan monteres på væggen | Ja |
DIN-skinne montering | Ja |
Sikkerhed | EN60950-1 |
Certificering | CE, FCC, RoHS, UL |
Præstation | |
Maksimal kabellængde | 100 m |
Gennemsnitstid mellem fejl (MTBF) | 538451 t |
Strømstyring | |
DC indgangsspænding | 48 - 56 V |
Beskyttelse ved overspænding | Ja |
Overspændingsbeskyttelse | 2 kV |
Strømstiktype | Type N |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 5 |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Total Power over Ethernet (PoE) | 120 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 75 °C |
Opbevaringstemperatur (T-T) | -40 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 81,5 mm |
Dybde | 104 mm |
Højde | 32 mm |
Vægt | 150,6 g |
Emballeringsdata | |
Hurtig start guide | Ja |
Klemrække inkluderet | Ja |
Pakkebredde | 211 mm |
Pakkedybde | 162 mm |
Pakkehøjde | 64 mm |
Pakkevægt | 392,6 g |
Logistik data | |
Hovedkassens bredde (udvendigt) | 355 mm |
Hovedkassens længde (udvendigt) | 345 mm |
Hovedkassen højde (udvendigt) | 225 mm |
Harmoniseret systemkode (HS) | 85176990 |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Andre funktioner | |
Klemrække port | Ja |
