Expand your network connectivity with simple plug-and-play setup

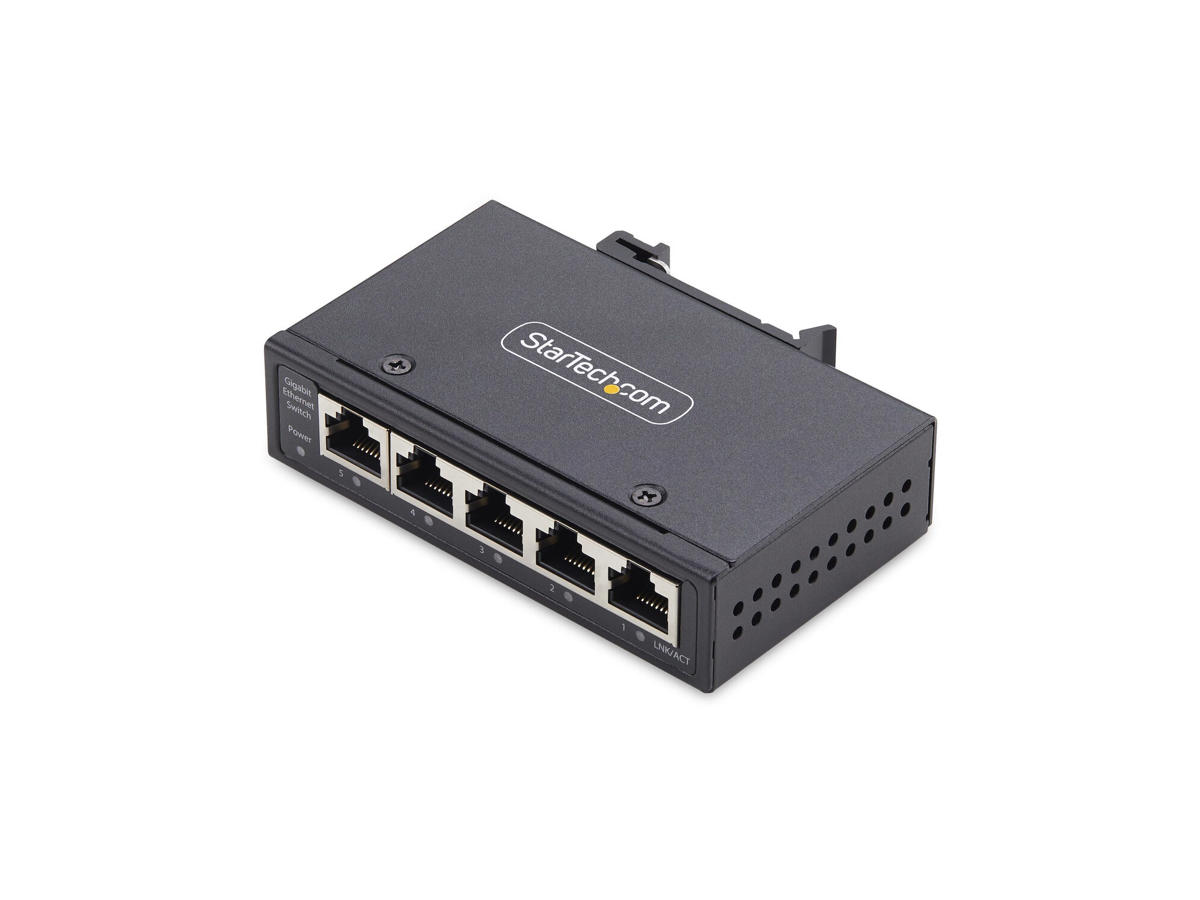

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.
Enhance Your Network
Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.
Rugged TAA Switch
This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.
Designed for Demanding Environments
This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.
The StarTech.com Advantage
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal installerede SFP moduler | 0 |
Antal installerede SFP+ moduler | 0 |
Gigabit Ethernet (kobber) porte, antal | 5 |
Strømstik | Terminal block (3-pin) |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 100BASE-TX, 1000BASE-T |
Fuld duplex | Ja |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Dataoverførsel | |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Design | |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Kode for international beskyttelse (IP) | IP30 |
Kan monteres på væggen | Ja |
DIN-skinne montering | Ja |
Præstation | |
Gennemsnitstid mellem fejl (MTBF) | 556710 t |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Indgangsspænding | 9 - 60 V |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 75 °C |
Opbevaringstemperatur (T-T) | -40 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 60 mm |
Dybde | 100 mm |
Højde | 26 mm |
Vægt | 221,7 g |
Emballage indhold | |
Hurtig start guide | Ja |
Emballeringsdata | |
Klemrække inkluderet | Ja |
Monteringsbeslag inkluderet | Ja |
DIN skinne inkluderet | Ja |
Pakkebredde | 107 mm |
Pakkedybde | 159 mm |
Pakkehøjde | 55 mm |
Pakkevægt | 293,7 g |
Godkendelser | |
Compliance-certifikater | RoHS, Lov om handelsaftaler (TAA) |
Logistik data | |
Hovedkassens bredde (udvendigt) | 355 mm |
Hovedkassens længde (udvendigt) | 295 mm |
Hovedkassen højde (udvendigt) | 335 mm |
Produkter pr. hovedkasse (udvendigt) | 30 stk |
