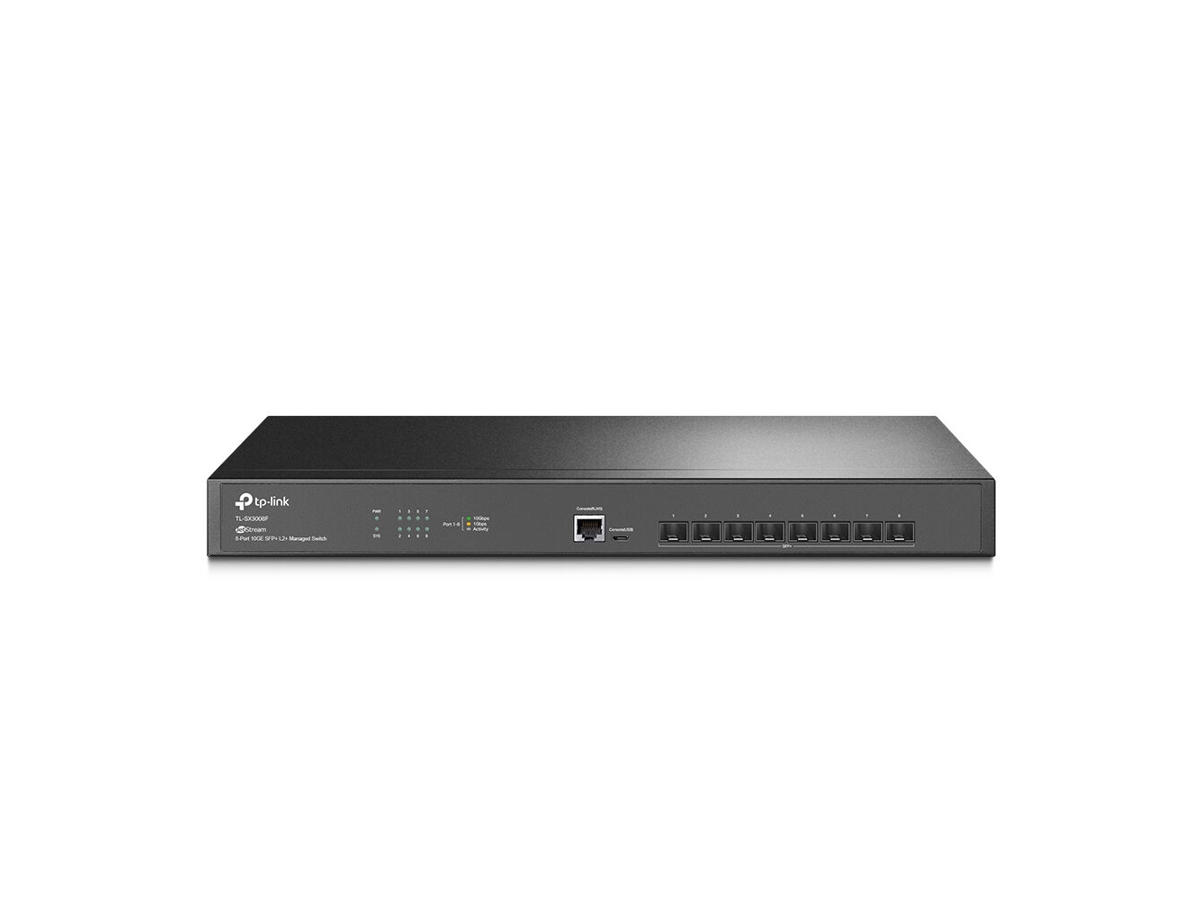

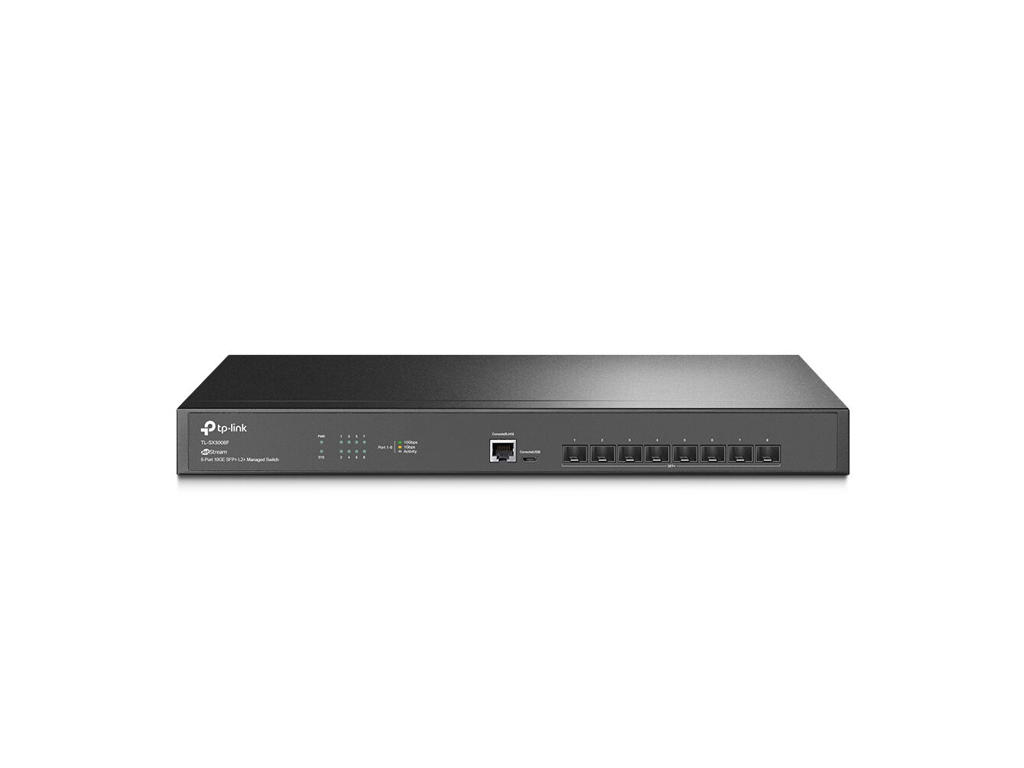

TP-Link JetStream TL-SX3008F netværksswitch Administreret L2/L3 Sort
Varenummer: TL-SX3008F
.
DKK 2.198,75 / Stk
DKK 1.759,00 ekskl. moms
  •
TP-Link JetStream TL-SX3008F. Switch-type: Administreret, Switch lag: L2/L3. Port til konsol: RJ-45/micro-USB. MAC adresselabel: 32000 entries, Switch kapacitet: 160 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Strømstik: DC-in-stik. Stativ-montering


Mere information

  • Future-Proof Your Business with Full 10G Fiber Switch
    JetStream 8-Port 10GE SFP+ L2+ Managed Switch

    Full Fiber Switch with Lightning-Fast 10G
    Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

    Seamless Integration to Omada Cloud SDN
    Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

    Advanced L3 Features
    An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

    Secure Networking
    Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

    Enterprise Level Features
    A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

    Advanced Quality of Service (QoS)
    Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

    ISP Features
    Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

    IPv6 Support
    An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2/L3
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Cloud-administreret Ja
    Trafik klassificering Ja
    ARP inspektion Ja
    Konfigurerer lokationsindstillinger (CLI) Ja
    System hændelseslog Ja
    MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porttype Ingen
    Antal SFP + modulslots 8
    Port til konsol RJ-45/micro-USB
    Strømstik DC-in-stik
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
    10G understøttelse Ja
    Port-spejlning Ja
    IP-routing Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Broadcast stormkontrol Ja
    Begrænsning af hastighed Ja
    Spanning tree protokol Ja
    Head-of-line (HOL) blokering Ja
    VLAN understøttelse Ja
    Vituelle LAN funktioner Private VLAN, Protocol-based VLAN, Voice VLAN
    Antal VLAN'er 4000
    Dataoverførsel
    MAC adresselabel 32000 entries
    Switch kapacitet 160 Gbit/sek.
    Hastighed for videresendelse 119,04 Mpps
    Antal køer 8
    Statisk rute Ja
    Jumbo Frames support Ja
    Jumbo rammer 9000
    Pakke bufferlager 16 MB
    Sikkerhed
    DHCP funktioner DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
    Adgangskontrolliste (ACL) Ja
    IGMP snooping Ja
    Sikkerhedsalgoritmer HTTPS, SSH, SSH-2, SSL/TLS
    Filtrering af MAC-adresser Ja
    Statisk port, sikkerhed Ja
    SSH/SSL support Ja
    Loop beskyttelse Ja
    BPDU filtrering/beskyttelse Ja
    IP-MAC-portbinding Ja
    Godkendelse Gæste VLAN, MAC-baseret godkendelse, Portbaseret godkendelse, Webbaseret godkendelse
    Godkendelsestype AAA, TACACS+
    Algoritmer for køplanlægning SP, WRR+SP, Weighted Round Robin (WRR)
    Multicast funktioner
    Multicast-understøttelse Ja
    Multicast Listener Discovery (MLD) snooping Y
    Protokoller
    Administrationsprotokoller SNMPv1/v2c/v3, SNTP
    IPv4 & IPv6 funktioner IPv6 Telnet, IPv6 ping, IPv6 tracert
    Design
    Stativ-montering Ja
    Produktfarve Sort
    LED-indikatorer Ja
    Certificering CE, FCC, RoHS
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 220 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Strømforbrug (maks.) 15,46 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 45 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Varmeafgivelse 52,75 BUT/t
    Vægt & størrelser
    Bredde 440 mm
    Dybde 180 mm
    Højde 44 mm
    Emballeringsdata
    Kabler inkluderet Vekselstrøm
    Hurtig start guide Ja
    Brugervejledning Ja
    Pakketype Kasse
    Rack monteringskit Ja
    Pakkebredde 528 mm
    Pakkedybde 250 mm
    Pakkehøjde 80 mm
    Pakkevægt 2,37 kg
    Logistik data
    Harmoniseret systemkode (HS) 85176990
