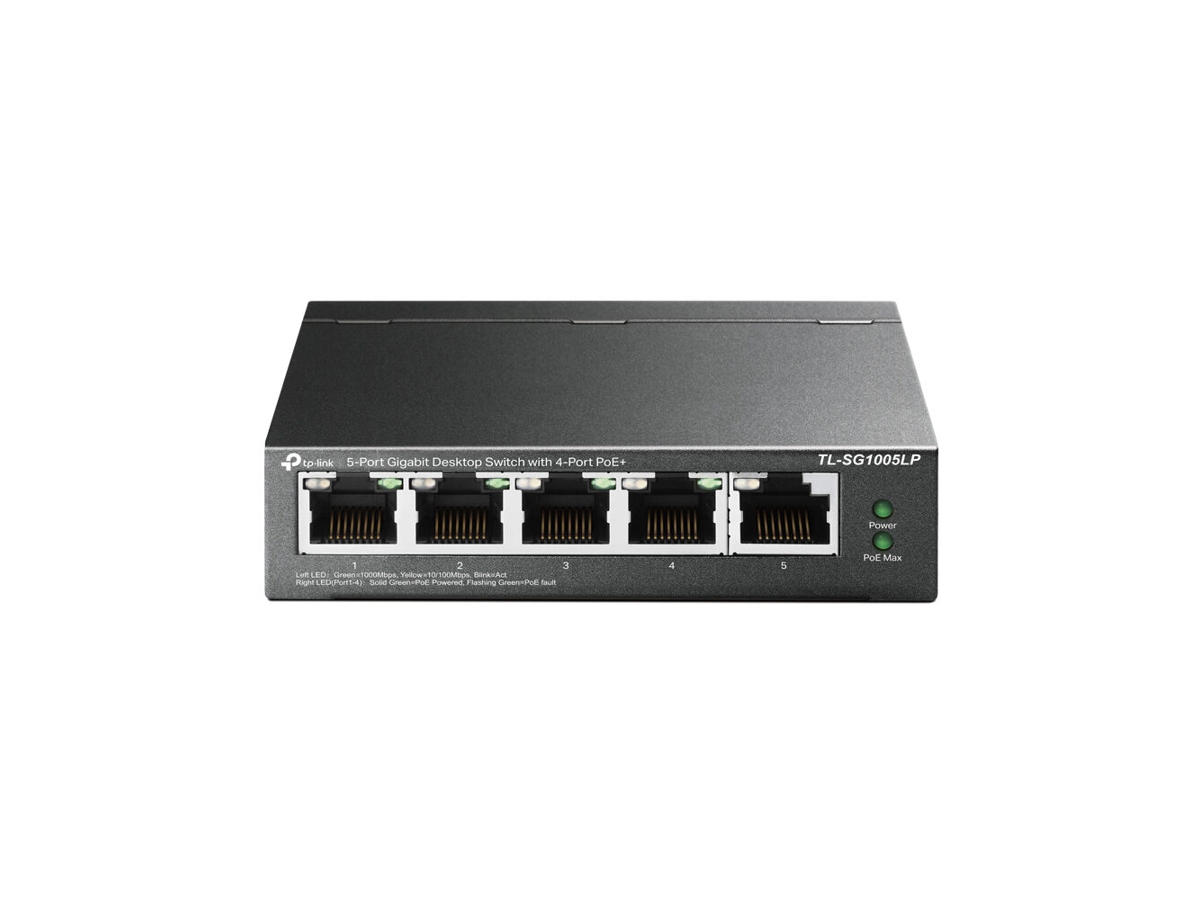

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 5 |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
MAC-adresse auto-forældelse understøttet | Ja |
Dataoverførsel | |
MAC adresselabel | 2000 entries |
Switch kapacitet | 10 Gbit/sek. |
Hastighed for videresendelse | 7,44 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 16000 |
Sikkerhed | |
IGMP snooping | Ja |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort |
LED-indikatorer | Ja |
Kan monteres på væggen | Ja |
Certificering | FCC, CE, RoHS |
Præstation | |
Maksimal kabellængde | 100 m |
Ventilatorfri | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
Strømstyring | |
Strømkilde | DC/PoE |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
DC indgangsspænding | 53.5 V |
Indgangsstrøm | 0.81 A |
Strømforbrug (maks.) | 47,5 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 4 |
Total Power over Ethernet (PoE) | 40 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 161,98 BUT/t |
Vægt & størrelser | |
Bredde | 99,8 mm |
Dybde | 98 mm |
Højde | 25 mm |
Emballeringsdata | |
Brugervejledning | Ja |
Pakketype | Kasse |
Pakkebredde | 131 mm |
Pakkedybde | 196 mm |
Pakkehøjde | 121 mm |
Pakkevægt | 730 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
