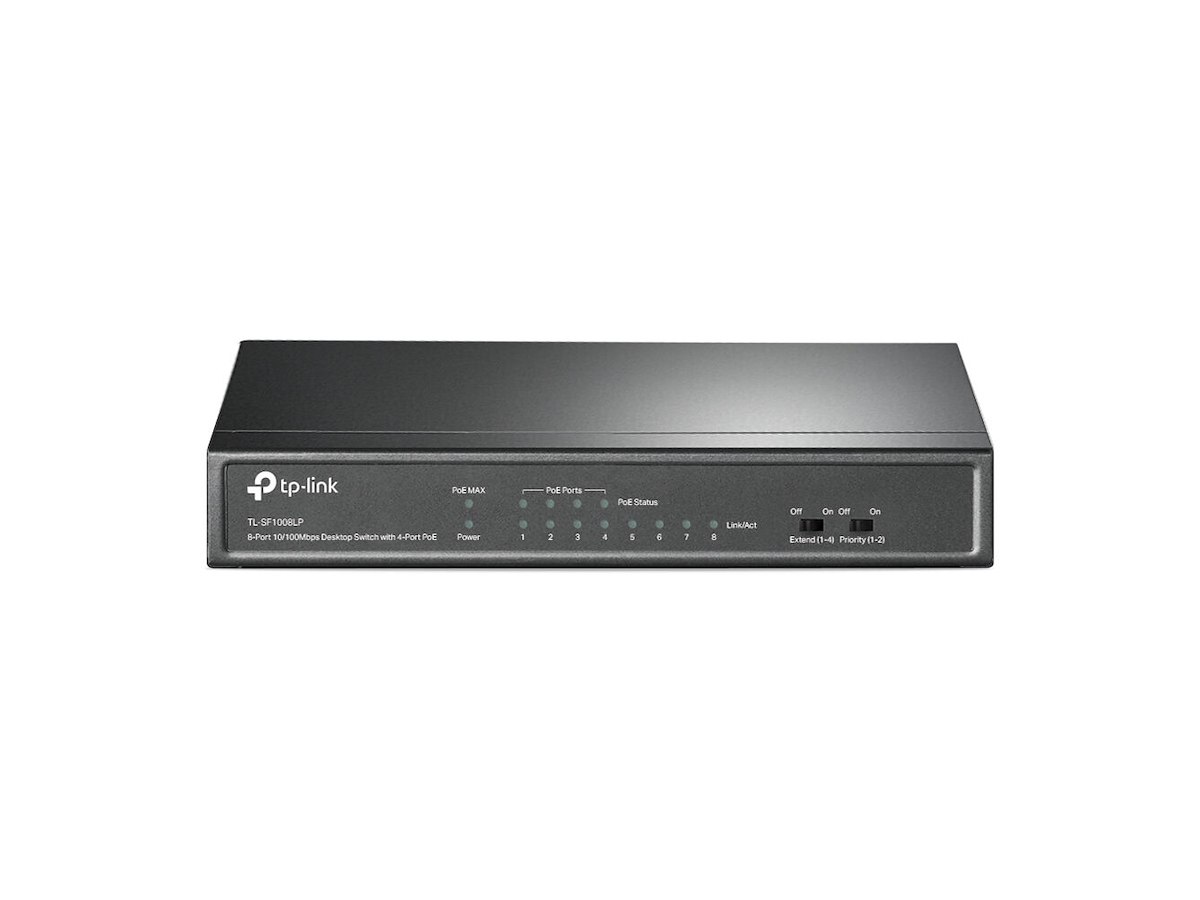

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Fast Ethernet (kobber) porte, antal | 8 |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.3af, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10GBASE-T, 100BASE-TX |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
MAC-adresse auto-forældelse understøttet | Ja |
Dataoverførsel | |
MAC adresselabel | 2000 entries |
Switch kapacitet | 1,6 Gbit/sek. |
Hastighed for videresendelse | 1,1904 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 2000 |
Sikkerhed | |
DHCP funktioner | DHCPv6 relay |
Protokoller | |
Routing-protokoller | OSPF |
IPv4 & IPv6 funktioner | IPv6 portal |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Kan monteres på væggen | Ja |
Antal blæsere | 0 blæser(e) |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømkilde | DC/PoE |
Strømforsyning inkluderet | Ingen |
Vekselstrømsindgangsspænding | 220 V |
Vekselstrømsindgangsfrekvens | 50 Hz |
DC indgangsspænding | 53.5 V |
Indgangsstrøm | 0.81 A |
Strømforbrug (maks.) | 47,1 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) porte, antal | 4 |
Total Power over Ethernet (PoE) | 41 W |
Andre funktioner | |
Båndbredde | 1,6 Gbit/sek. |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 160,61 BUT/t |
Vægt & størrelser | |
Bredde | 171 mm |
Dybde | 98 mm |
Højde | 27 mm |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm |
Brugervejledning | Ja |
Emballeringsdata | |
AC-adapter inkluderet | Ja |
Pakkebredde | 223 mm |
Pakkedybde | 280 mm |
Pakkehøjde | 68 mm |
Pakkevægt | 750 g |
Godkendelser | |
Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
