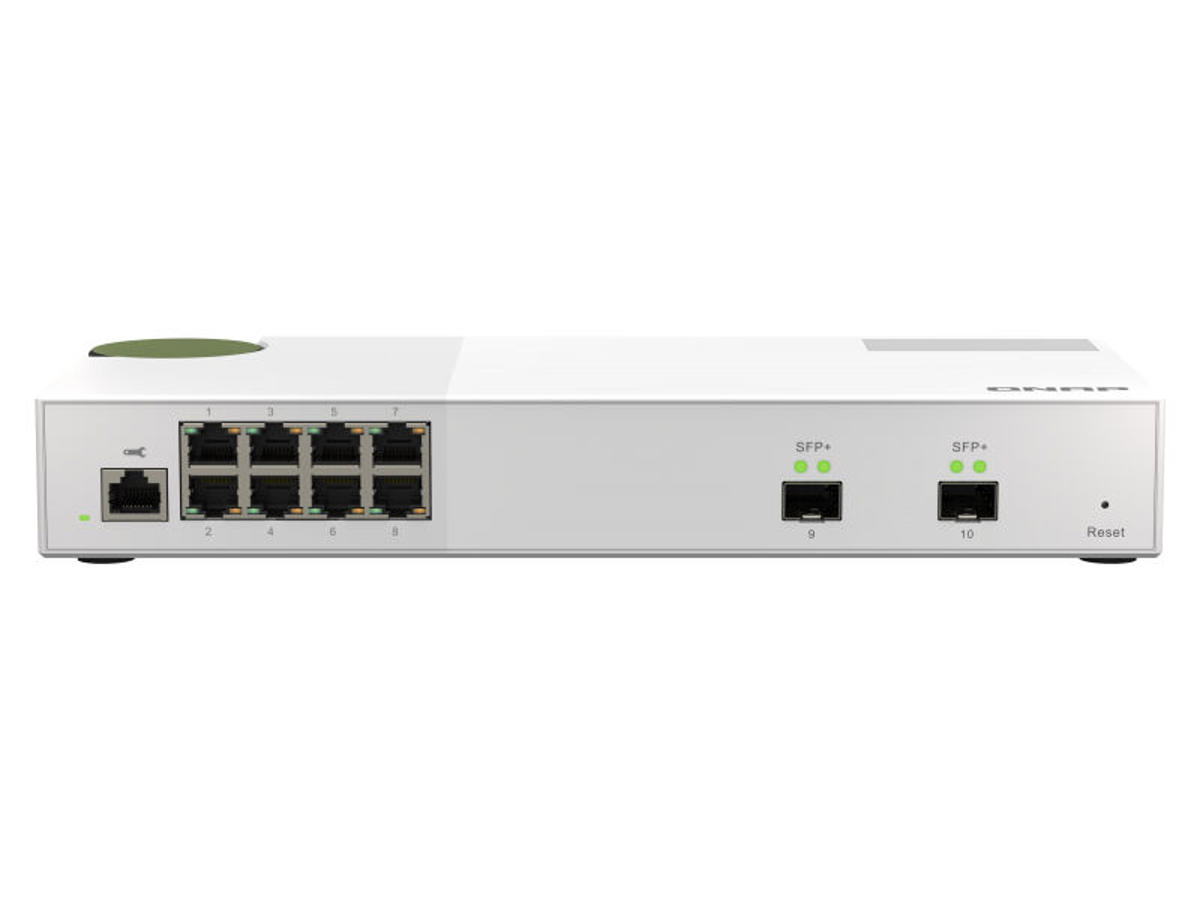

The QSW-M2108-2S is a Layer 2 Web Managed Switch with two 10GbE SFP+ ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108-2S offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and desktop form factor, the QSW-M2108-2S enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2108-2S provides two 10GbE SFP+ ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2S is 80Gbps, guaranteeing the full potential of each port.
Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-M2108-2S provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-M2108-2S has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
Desktop form factor for easy use in offices
With a compact and modern design, the QSW-M2108-2S stands out with its delicate textured surface design. The flexible DC power connector enables universal deployment of the QSW-M2108-2S and each port can be easily identified. Being fully plug-and-play, devices can be simply connected to the QSW-M2108-2S and immediately used.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | 2.5G Ethernet (100/1000/2500) |
Antal 2,5G Ethernet-porte (kobber) | 8 |
Antal SFP + modulslots | 2 |
Port til konsol | RJ-45 |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ja |
Kobber ethernet kabelteknologi | 100BASE-T, 1000BASE-T |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Spanning tree protokol | Ja |
Auto-forhandling | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN |
Optisk fiber | |
Fiber ethernet kabelteknologi | 1000BASE‑LX, 1000BASE‑SX |
Dataoverførsel | |
MAC adresselabel | 16000 entries |
Switch kapacitet | 80 Gbit/sek. |
Gennemløb | 40 Gbit/sek. |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Sikkerhed | |
DHCP funktioner | DHCP client |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Grå |
Knap til nulstilling | Ja |
LED-indikatorer | Aktivitet, Link, Strøm, Hastighed, Status |
Antal blæsere | 1 blæser(e) |
Elektromagnetisk kompatibilitet | CLASS A |
Certificering | CE, FCC, VCCI, BSMI |
Præstation | |
Firmware kan opgraderes | Ja |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |
DC indgangsspænding | 12 V |
Strømforbrug (maks.) | 23 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 290 mm |
Dybde | 127 mm |
Højde | 42,5 mm |
Vægt | 1,12 kg |
Emballeringsdata | |
Hurtig start guide | Ja |
Pakkevægt | 1,52 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
