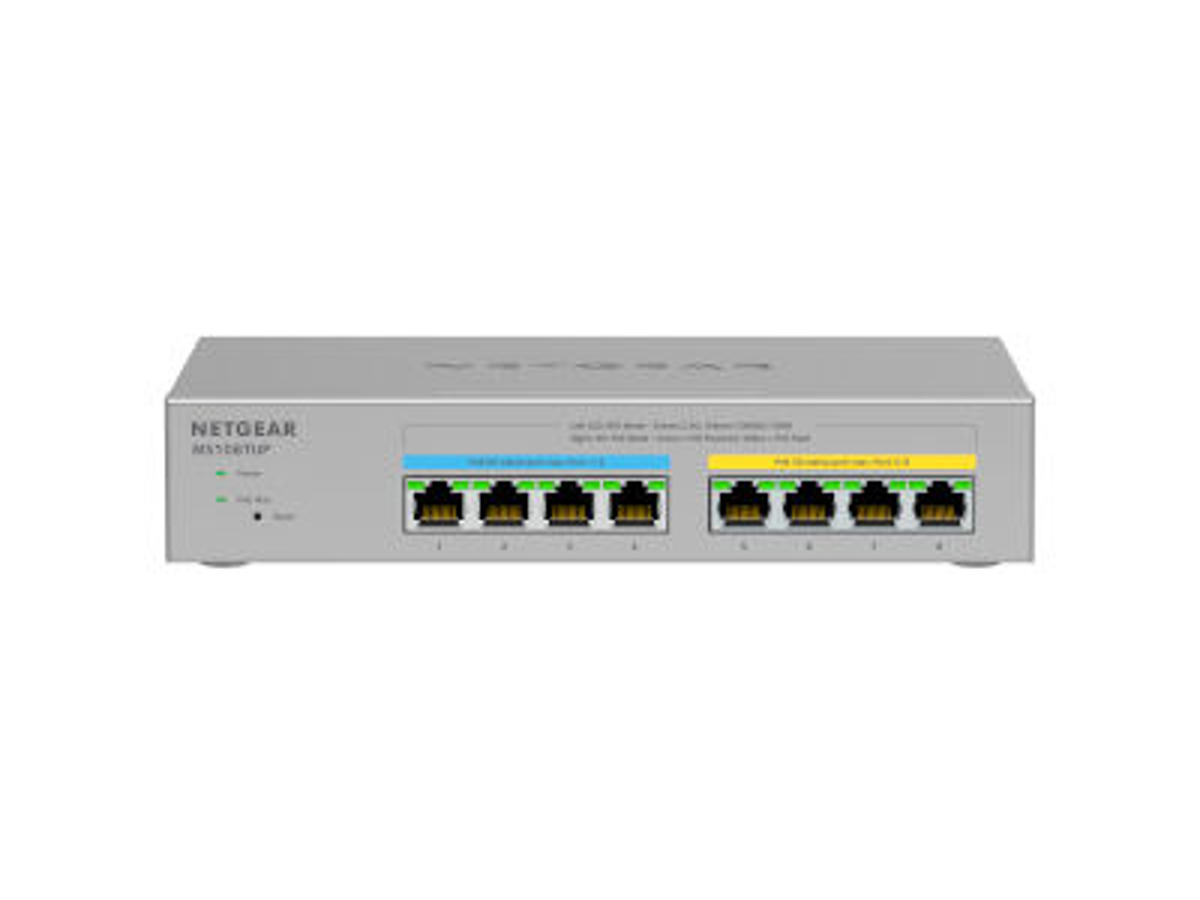

NETGEAR MS108TUP Ikke administreret L2 2.5G Ethernet (100/1000/2500) Strøm over Ethernet (PoE) Grå
Varenummer: MS108TUP-100EUS
.
DKK 5.487,50 / Stk
DKK 4.390,00 ekskl. moms
  •
NETGEAR MS108TUP. Switch-type: Ikke administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: 2.5G Ethernet (100/1000/2500), Basis omskiftning RJ-45 Ethernet porte, antal: 8. MAC adresselabel: 16000 entries, Switch kapacitet: 40 Gbit/sek.. Netværksstandarder: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Strøm over Ethernet (PoE)


Mere information

  • High-speed and Powerful Network with a Compact Switch
    NETGEAR Smart Switches with PoE meet business networks growing needs by providing powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability that can support the business’s needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 access points now imply the need for faster speeds in the network. The MS108TUP supports 2.5 Gigabit speed connectivity and Power-OverEthernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Smart switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an allin-one solution, providing management and power to these applications would be ideal. The MS108TUP has the option to be remotely controlled through the NETGEAR Insight Remote Cloud Management platform.

    Highlights
    - 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
    - Business-friendly and easy-to-use web browser-based management GUI
    - VLAN support for traffic segmentation
    - Quality of Service (QoS) for traffic prioritization
    - Auto “denial-of-service” (DoS) prevention
    - Troubleshoot connection issues via cable test
    - L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
    - IGMP Snooping and Querier for multicast optimization
    - IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Static Routing, and static and dynamic IPv6 address assignment
    - SNMP v1, v2c, v3 and RMON remote monitoring
    - Uninterrupted PoE to ensure power stays on during software upgrade and soft reboot
    - PoE Self-healing to reboot PoEconnected devices when they fall offline or go unresponsive.
    - Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
    - Loop prevention and broadcast storm controls
    - Rate limiting for better bandwidth allocation
    - Port mirroring for network monitoring
    - Jumbo frame support
    - Advanced features such as per port PoE controls
    - Fanless, silent operation with desktop and wall-mount options
    - NETGEAR Insight Remote Cloud Management option available
    - Scripting and management via direct text command using Lite Command Line Interface (CLI).
    - NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
    - Lifetime 24/7 Chat Technical Support*
    - Next-Business-Day Hardware Replacement**
    - Limited Lifetime Hardware Warranty

    Simply activate NETGEAR Insight Cloud management to manage your network. Anytime. Anywhere.
    By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

    Unique advanced management features of these Insight managed devices include:
    - Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with auto-schedule mode
    - Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
    - Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud portal
    - Configurable in-app and email alerts and notifications
    - Auto-join and configure (zero-touch provisioning) for additional Insight managed devices added to the network
    - Centralized network configuration (policies) across Insight managed switches, and access points for VLANs, ACLs, QoS, LAGs, etc.
    - Cloud-based network administration, monitoring, and firmware management

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500)
    Antal 2,5G Ethernet-porte (kobber) 8
    Netværk
    Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
    Begrænsning af hastighed Ja
    VLAN understøttelse Ja
    Antal VLAN'er 64
    Dataoverførsel
    MAC adresselabel 16000 entries
    Switch kapacitet 40 Gbit/sek.
    Jumbo Frames support Ja
    Jumbo rammer 12000
    Pakke bufferlager 1,5 MB
    Sikkerhed
    DHCP funktioner DHCP client, DHCP relay
    IGMP snooping Ja
    Multicast funktioner
    Multicast-understøttelse Ja
    MAC-adresse tabel (multicast) 128 entries
    Design
    Produktfarve Grå
    Husmateriale Metal
    LED-indikatorer Aktivitet, Link, PoE, Strøm, Hastighed, Ja
    Certificering CE mark FCC Part 15 class B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI
    Præstation
    Gennemsnitstid mellem fejl (MTBF) 373643,7 t
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) porte, antal 8
    Power over Ethernet plus (PoE+) porte, antal 4
    Antal Power over Ethernet 4PPoE-porte (PoE++) 4
    Power over Ethernet (PoE) effekt pr. port 230 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 32 °C
    Opbevaringstemperatur (T-T) -20 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
    Driftshøjde 0 - 3000 m
    Vægt & størrelser
    Bredde 210 mm
    Dybde 140 mm
    Højde 40 mm
    Vægt 900 g
