Smart Managed Switches just got more powerful and flexible
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.
The GS510TLP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Switches family, adding full 8 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 75W. Fan-less, the GS510TLP supports perfectly silent desktop operation or rack mounting.

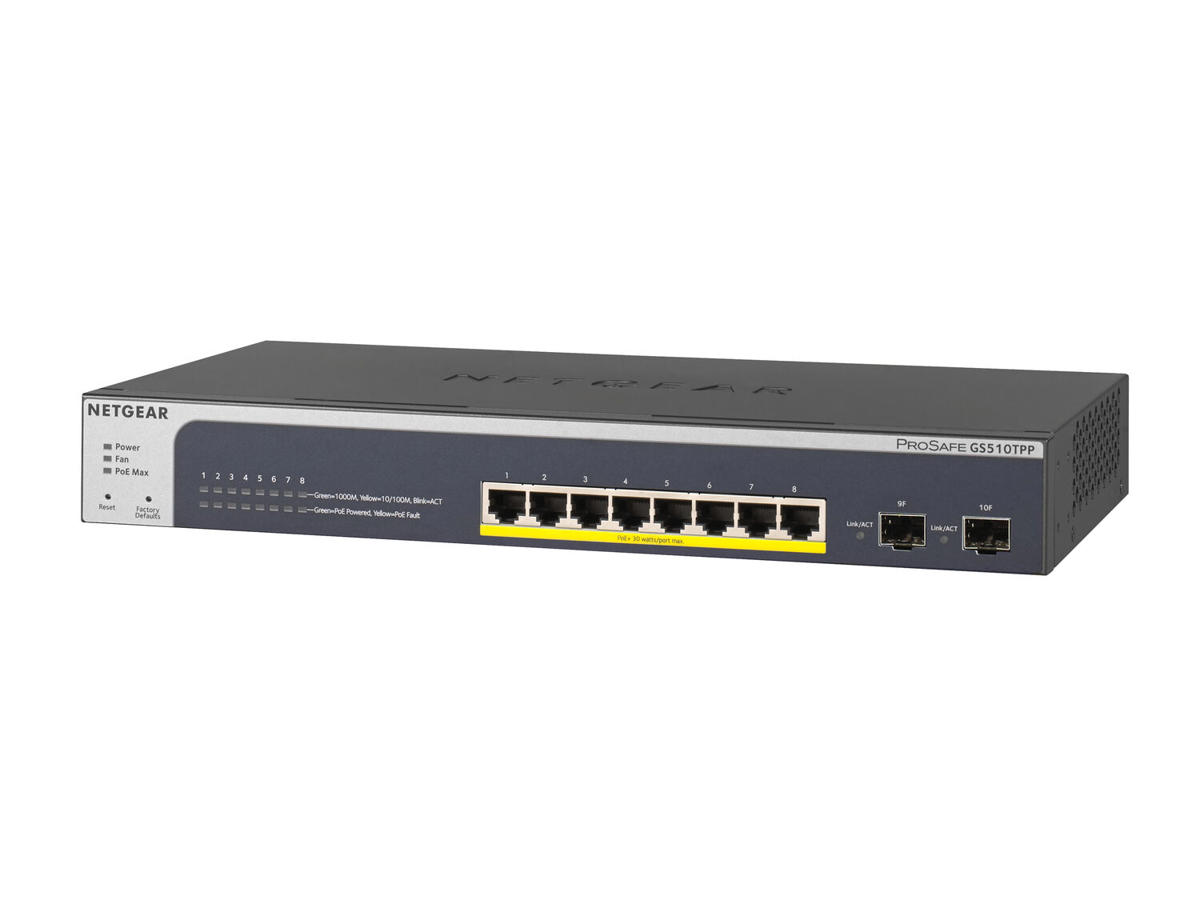

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can require GS510TPP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports: 190W PoE budget offers more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32dB at full power and 25°C (77°F) ambient.
The GS418TPP Easy Mount 16-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports is future-proof with 240W of PoE budget and ideal for “Virtually Anywhere deployments. Slim design (3.94 inches, 10 cm deep) and mounting accessories allow for access point, IP camera or VoIP endpoint placement optimization and cabling efficiency even outside the rack. The GS418TPP supports Easy Mount quiet operation or rack mounting with a maximum of 33dB at full power and 25°C (77°F) ambient
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3/L4 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP modulslots | 2 |
Port til konsol | RJ-45 |
Strømstik | DC-in-stik |
Netværk | |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-T, 1000BASE-T |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Spanning tree protokol | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
VLAN understøttelse | Ja |
Antal VLAN'er | 256 |
Dataoverførsel | |
MAC adresselabel | 16000 entries |
Switch kapacitet | 20 Gbit/sek. |
Latens (1 Gbps) | 3,313 µs |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke bufferlager | 1,5 MB |
Sikkerhed | |
Adgangskontrolliste (ACL) | Ja |
Adgangskontrolliste (ACL) regler | 100 |
IGMP snooping | Ja |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Antal filtrerede multicast-grupper | 512 |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Præstation | |
Indbygget processer | Ja |
Processorfrekvens | 400 MHz |
Strømstyring | |
Strømkilde | PoE |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 8 |
Total Power over Ethernet (PoE) | 190 W |
Vægt & størrelser | |
Bredde | 328 mm |
Dybde | 169 mm |
Højde | 43 mm |
Vægt | 1,83 kg |
Emballeringsdata | |
Rack monteringskit | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
