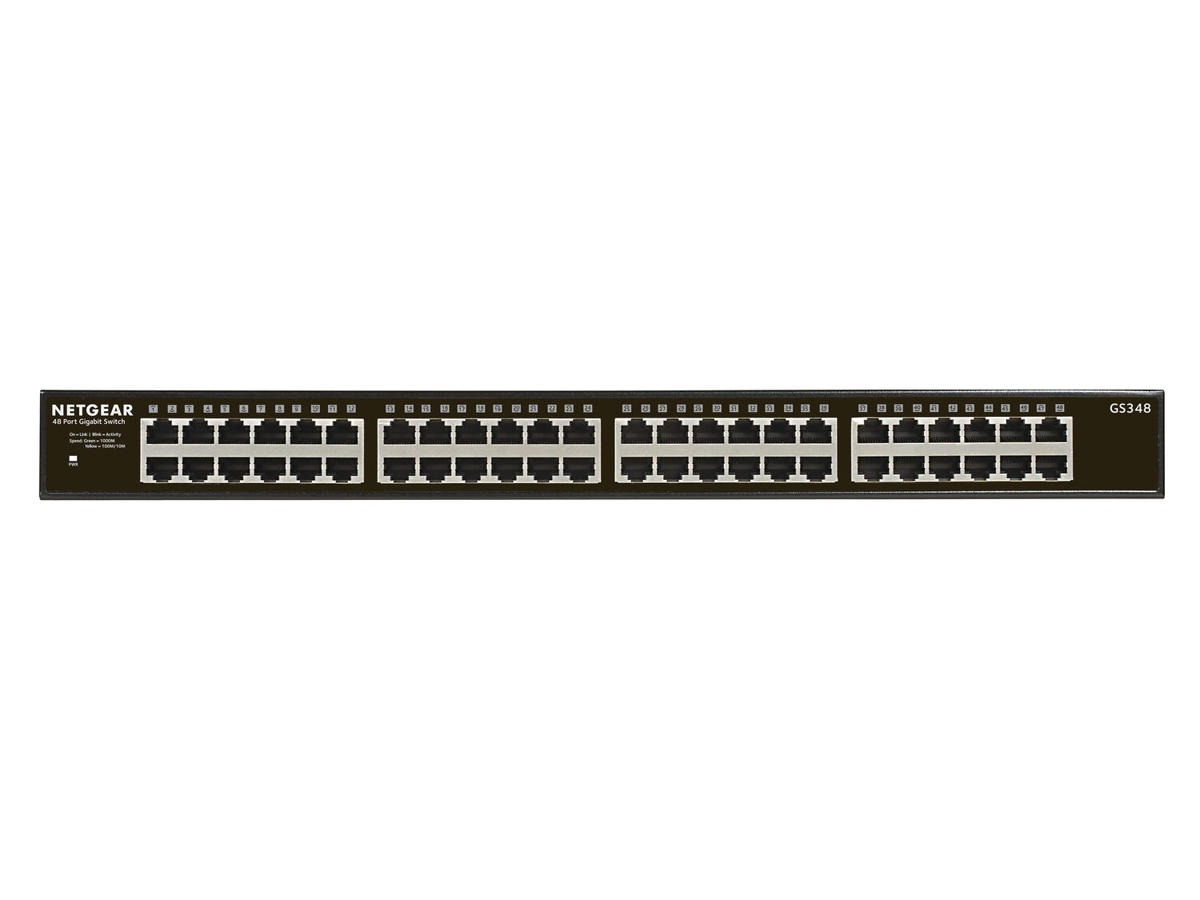

Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Dataoverførsel | |
MAC adresselabel | 16000 entries |
Switch kapacitet | 96 Gbit/sek. |
Latens (1 Gbps) | 4 µs |
Jumbo Frames support | Ja |
Jumbo rammer | 9216 |
Pakke videresendelsesrate (1 Gbps) | 1448000 pps |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Aktivitet, Link, Strøm |
Præstation | |
Plug and play | Ja |
Strømstyring | |
Strømkilde | Vekselstrøm |
Vekselstrømsindgangsspænding | 110 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 1 A |
Strømforbrug (typisk) | 8,81 W |
Strømforbrug (maks.) | 23 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Varmeafgivelse | 7866 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 204 mm |
Højde | 43,2 mm |
Vægt | 3,15 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
