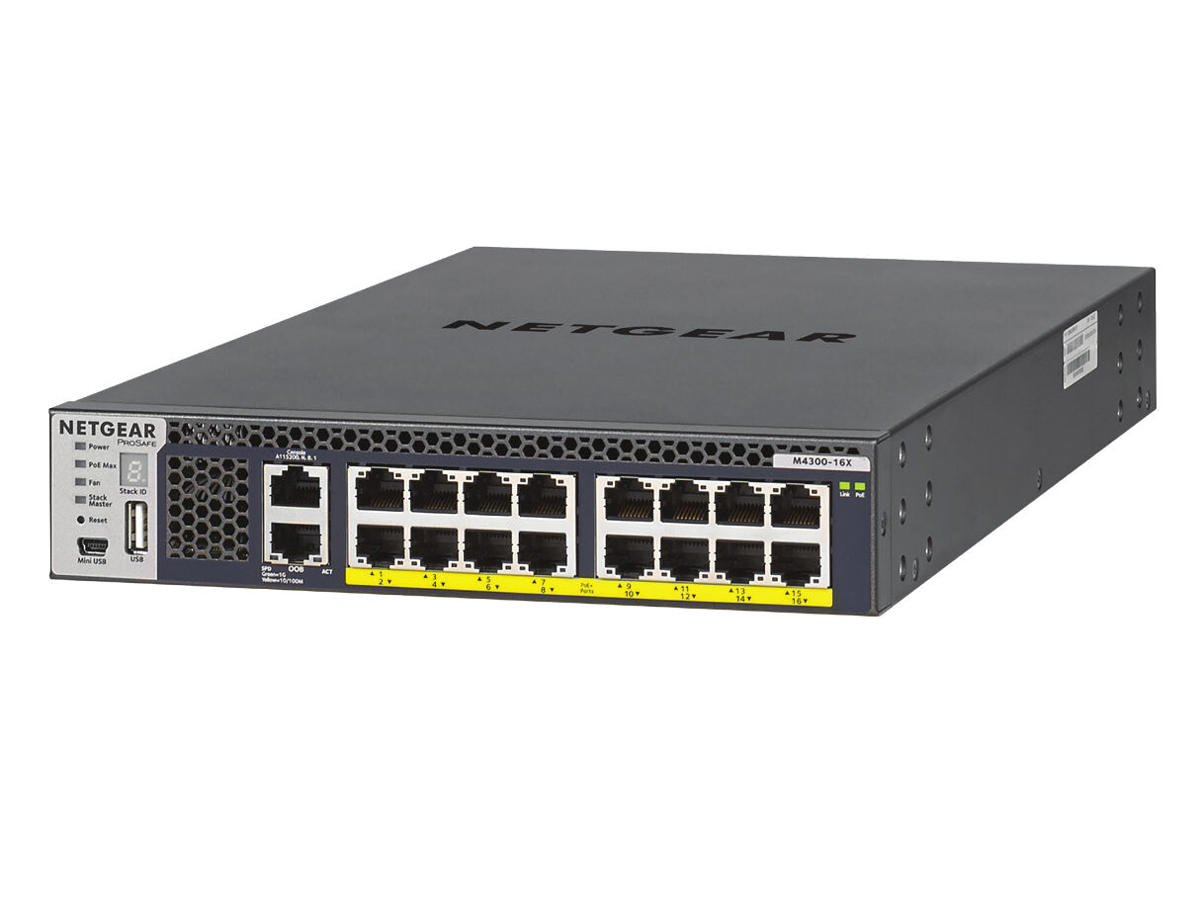

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L3 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
Port til konsol | RJ-45/Mini-USB |
Antal USB 2.0-porte | 1 |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
10G understøttelse | Ja |
Port-spejlning | Ja |
IP-routing | Ja |
Link aggregering | Ja |
Auto-sensing | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Private VLAN, Tagged VLAN, Voice VLAN |
Antal VLAN'er | 4093 |
Dataoverførsel | |
MAC adresselabel | 16000 entries |
Switch kapacitet | 320 Gbit/sek. |
Gennnemløb | 238 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 8 |
Stastiske routere | 64 |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Sikkerhed | |
DHCP funktioner | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
BPDU filtrering/beskyttelse | Ja |
Godkendelse | Gæste VLAN, MAC-baseret godkendelse |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Antal filtrerede multicast-grupper | 4000 |
Protokoller | |
GARP VLAN registreringsprotokol (GVRP) | Ja |
Routing-protokoller | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
Design | |
Stativ-montering | Ja |
Stabelbar | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Luftflow retning | Luftstrøm fremad-bagud |
Præstation | |
Fysisk stabling | 8 |
Indbygget processer | Ja |
Processorfrekvens | 800 MHz |
Intern hukommelse | 1024 MB |
Støjniveau | 36 dB |
Gennemsnitstid mellem fejl (MTBF) | 690301 t |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Antal strømforsyninger | 1 |
Strømforbrug (maks.) | 49 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 16 |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Total Power over Ethernet (PoE) | 199 W |
Driftsbetingelser | |
Varmeafgivelse | 186 BUT/t |
Vægt & størrelser | |
Bredde | 212 mm |
Dybde | 345 mm |
Højde | 44 mm |
Vægt | 3,22 kg |
Emballeringsdata | |
Rack monteringskit | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
