LevelOne IGP-1031 netværksswitch Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) Sort
Varenummer: IGP-1031
.
DKK 4.143,75 / Stk
DKK 3.315,00 ekskl. moms
  •
LevelOne IGP-1031. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. MAC adresselabel: 8000 entries. Netværksstandarder: IEEE 802.1ab, IEEE 802.1af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC indgangsspænding: 48 - 57 V. Strøm over Ethernet (PoE)


Mere information

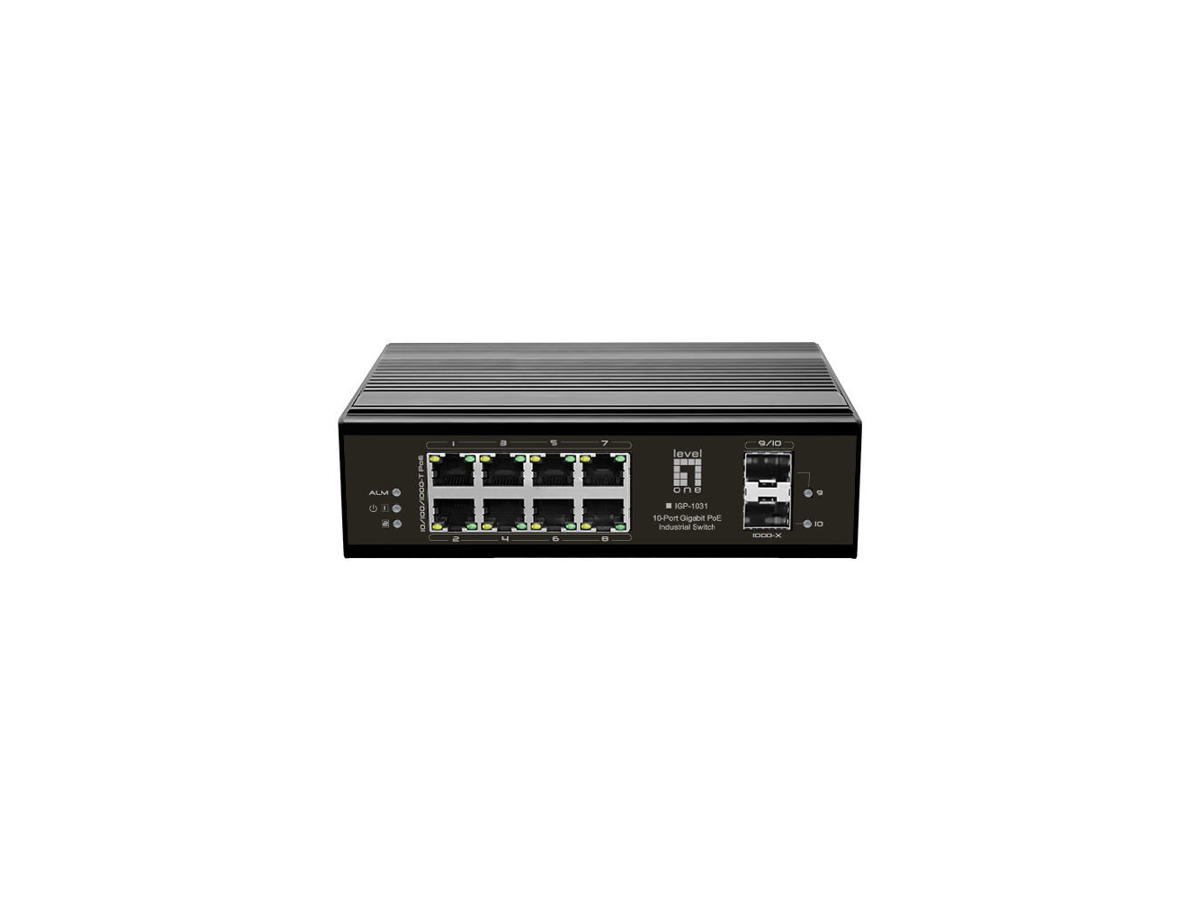

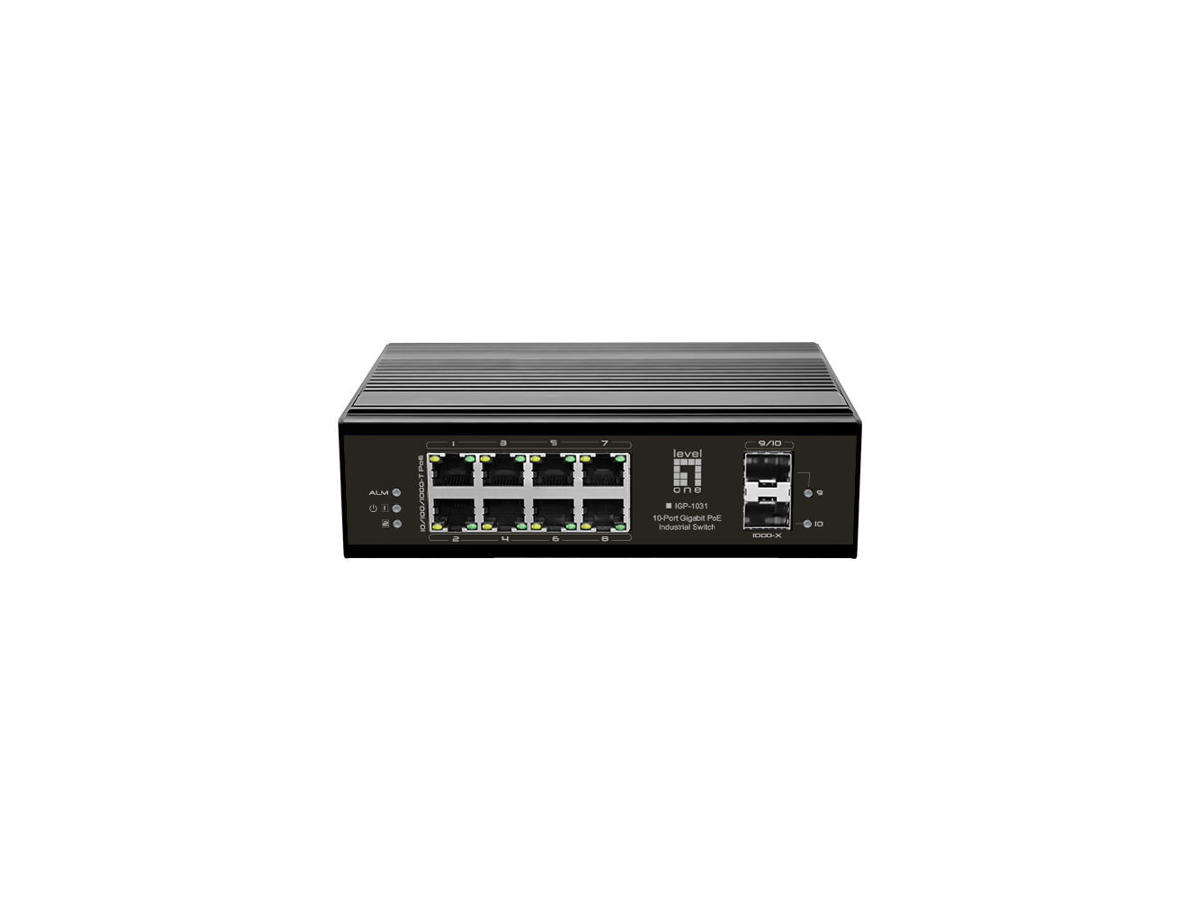

  • LevelOne IGP-1031 Industry Ethernet Switch provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30W each port power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

  • Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Gigabit Ethernet (kobber) porte, antal 8
    Antal SFP modulslots 2
    Netværk
    Netværksstandarder IEEE 802.1ab, IEEE 802.1af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Dataoverførsel
    MAC adresselabel 8000 entries
    Design
    Stativ-montering Ingen
    Stabelbar Ingen
    Produktfarve Sort
    LED-indikatorer Ja
    DIN-skinne montering Ja
    Oprindelsesland Kina
    Tekniske detaljer
    Palle nettohøjde 150 cm
    Palle nettodybde 80 cm
    Palle nettobredde 120 cm
    Strømstyring
    Strømforsyning inkluderet Ingen
    DC indgangsspænding 48 - 57 V
    Beskyttelse ved overspænding Ja
    Overspændingsbeskyttelse 6 kV
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) porte, antal 8
    Driftsbetingelser
    Driftstemperatur (T-T) -40 - 75 °C
    Opbevaringstemperatur (T-T) -40 - 85 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 95%
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
    Vægt & størrelser
    Bredde 114 mm
    Dybde 50 mm
    Højde 165 mm
    Vægt 1 kg
    Emballeringsdata
    Hurtig start guide Ja
    Pakketype Kasse
    Pakkebredde 181 mm
    Pakkedybde 74 mm
    Pakkehøjde 270 mm
    Pakkevægt 1,05 kg
    Logistik data
    Harmoniseret systemkode (HS) 85176990
