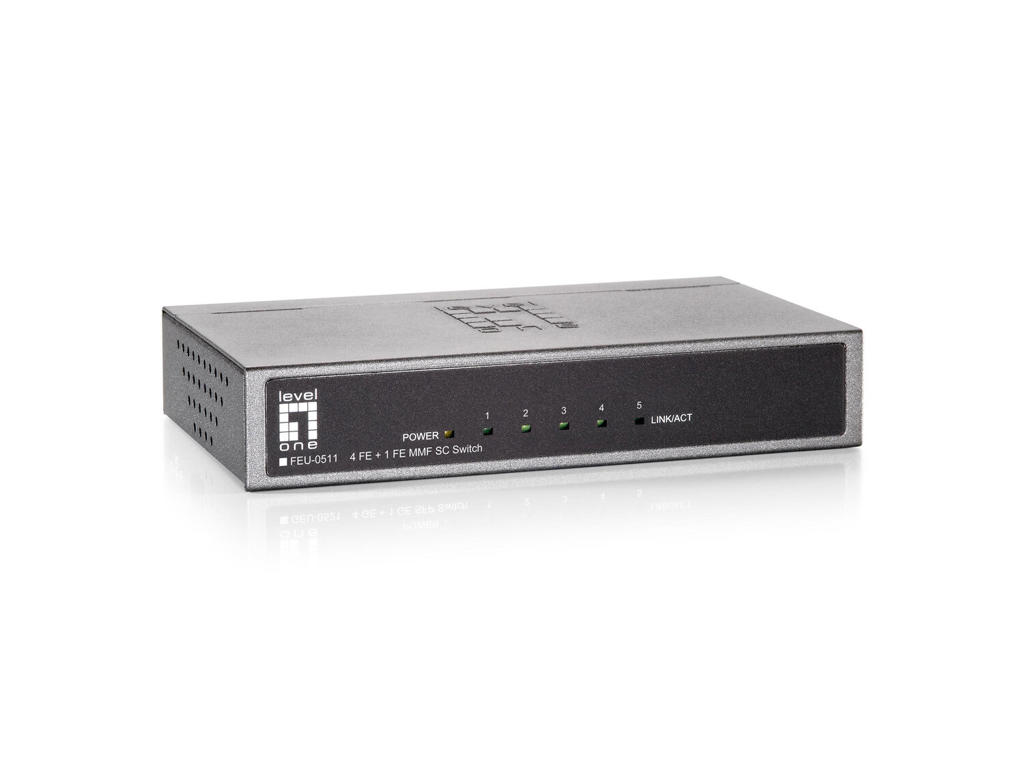

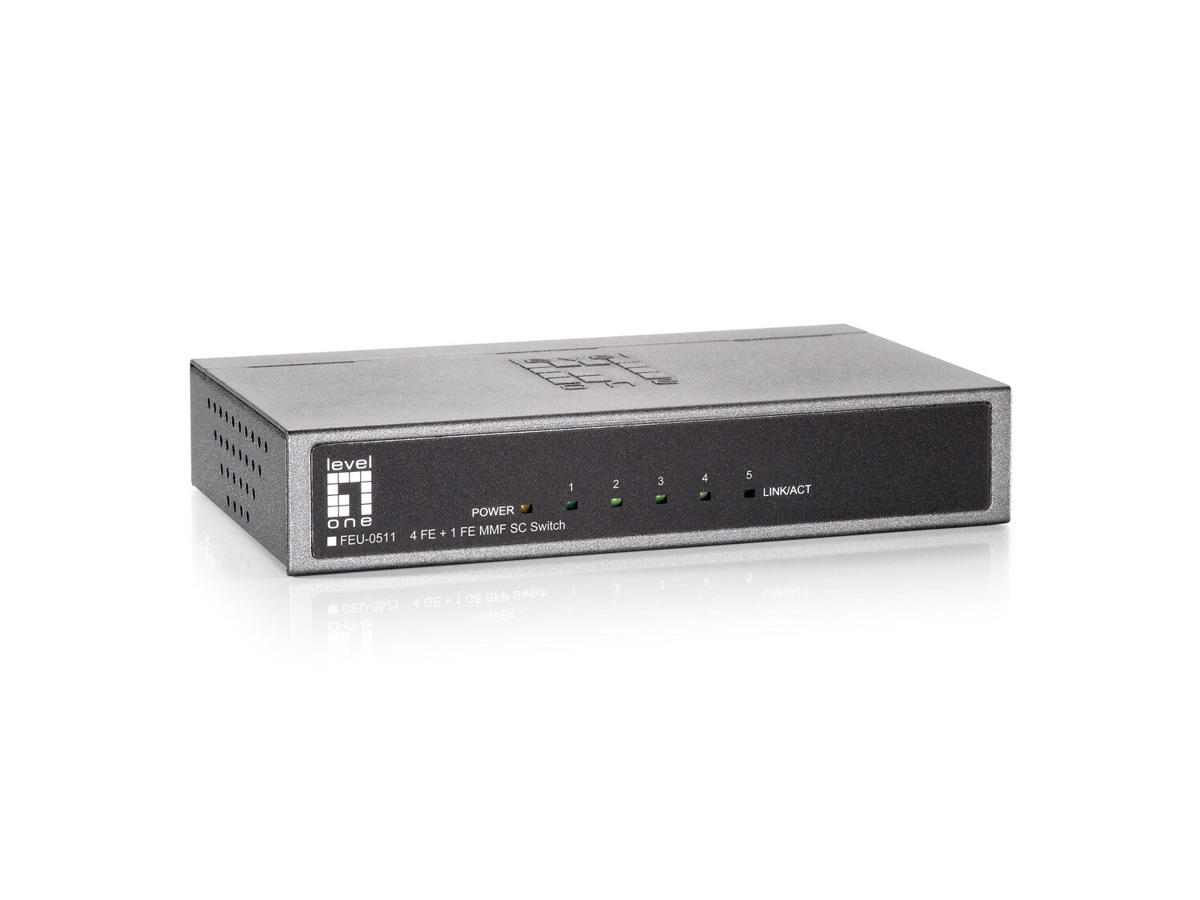

LevelOne FEU-0511 is 4-port 10/100Mbps + 1 100BaseFX Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SMB users with limited space. It is a superb choice for expanding your network.
1-Port 100BaseFX (Multi-Mode, SC Connector)
The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 4 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Fiberkanal porte | 1 |
Fiber optisk strømstik | SC, ST |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-FX, 100BASE-TX |
Understøttede kabeltyper | Cat5 |
Fuld duplex | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Optisk fiber | |
Fiber ethernet kabelteknologi | 100BASE-FX |
Fibertype | Multitilstand |
Transmissionsafstand (maks.) | 2 km |
Dataoverførsel | |
MAC adresselabel | 1024 entries |
Opbevar-og-frem | Ja |
Pakke videresendelsesrate (100 Mbps) | 148800 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort, Grå |
Husmateriale | Metal |
LED-indikatorer | Aktivitet, Link, Strøm |
Oprindelsesland | Taiwan |
Certificering | FCC Class B, CE |
Præstation | |
Bufferstørrelse | 384 KB |
Maksimal dataoverførselshastighed | 200 Mbit/s |
Plug and play | Ja |
Strømstyring | |
Udgangsspænding | 5 V |
Udgangsstrøm | 2,5 A |
Strømforbrug (maks.) | 6 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -20 - 90 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 96 mm |
Dybde | 112 mm |
Højde | 30 mm |
Vægt | 380 g |
Emballeringsdata | |
Hurtig start guide | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Pakkebredde | 140 mm |
Pakkedybde | 250 mm |
Pakkehøjde | 55 mm |
Pakkevægt | 540 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
