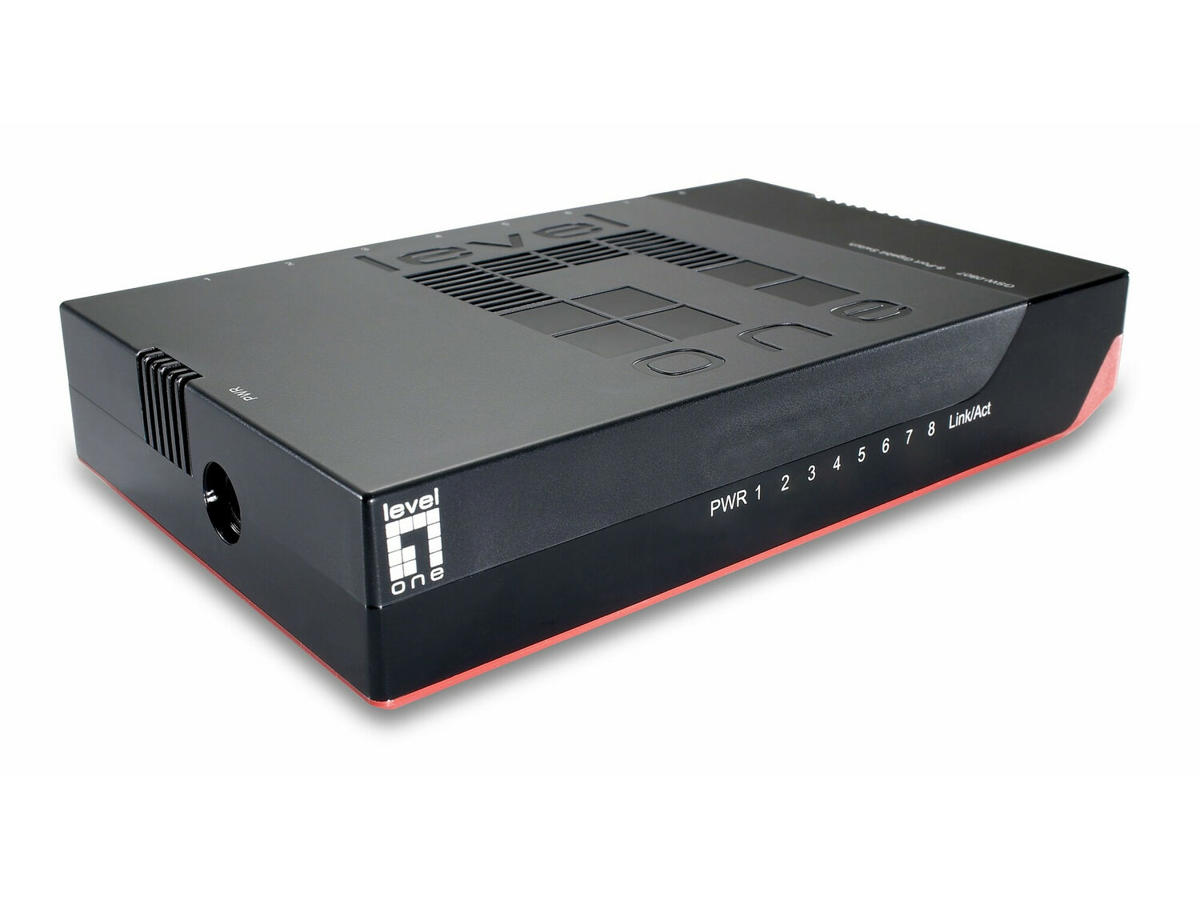

The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving FeaturesThe GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish DesignThe stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comeswith 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to UseThe GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 8 |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 8192 entries |
Switch kapacitet | 16 Gbit/sek. |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke videresendelsesrate (1 Gbps) | 1488000 pps |
Pakke videresendelsesrate (100 Mbps) | 148000 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort, Rød |
LED-indikatorer | Aktivitet, Link, Strøm |
Kan monteres på væggen | Ja |
Oprindelsesland | Kina |
Certificering | CE, RoHS, FCC |
Præstation | |
Flashhukommelse | 1024 MB |
Strømstyring | |
Strømforsyning inkluderet | Ingen |
Indgangsstrøm | 1 A |
Strømforbrug (typisk) | 3 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 149,5 mm |
Dybde | 89 mm |
Højde | 27 mm |
Vægt | 135 g |
Emballeringsdata | |
Hurtig start guide | Ja |
AC-adapter inkluderet | Ja |
Pakketype | Kasse |
Pakkebredde | 142 mm |
Pakkedybde | 92 mm |
Pakkehøjde | 92 mm |
Pakkevægt | 300 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
