Highlights
- Lenovo Cloud NOS high-performance architecture providing flexibility and eliminating vendor lock-in
- Lower TCO than previous Lenovo RackSwitches
- Outstanding fault tolerance
- Leading-edge technology with faster performance, lower cost, and better energy efficiency than previous generations
- VM automation
- NSX Gateway (planned)
Better together

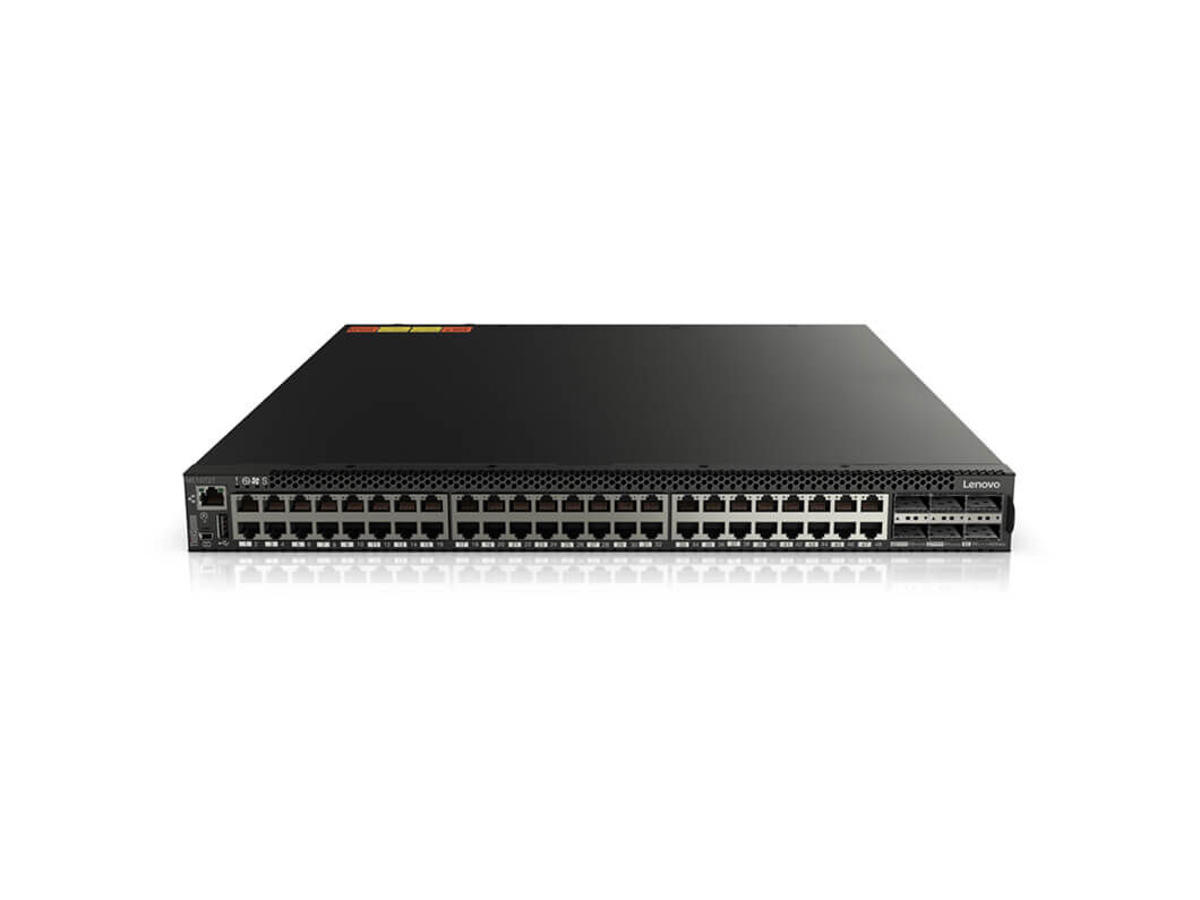

The Lenovo ThinkSystem NE1072T RackSwitch is part of the Lenovo Top of Rack (ToR) RackSwitch enterprise switch family, tested and validated with Lenovo reference architectures to provide the best integration possible for Lenovo servers, storage, and networking in the data center. RackSwitches interoperate seamlessly with other vendors' hardware and management. In addition, Lenovo XClarity provides easy single-pane-of-glass management for the Lenovo data center.
Data center optimized for networking
- The NE1072T is optimized for enterprise data centers with features, such as:
- Software Defined Data Center interfaces ensure smooth interoperability with popular enterprise management applications.
- Nutanix Prism with Lenovo Network Orchestrator automates vlan changes to improve uptime and network security.
- VMware vRealize Log Insight collects logs and events to determine root cause and produce reports across multiple devices and vendors.
- VMware vRealize Network Orchestrator helps deploy workflows to automate complex IT processes.
- As a Microsoft Azure Stack solution partner, BGP, DCP, and switch-independent teaming deliver seamless interoperability.
- OpenStack controls diverse pools of processing, storage, and networking resources throughout the data center.
- Ansible automation frees up operations teams for more strategic work.
- Resiliency: NE1072T offers outstanding fault tolerance with one of the quickest high-availability failovers in the industry.
Low TCO
NE1072T is an extremely cost-effective switch for mid-range 10GBase-T hybrid cloud data center applications.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
Antal QSFP + modulpladser | 6 |
Port til konsol | RJ-45 |
Antal USB 2.0-porte | 1 |
Strømstik | AC-in jack |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ja |
Understøttede kabeltyper | Cat6a, Cat7 |
Port-spejlning | Ja |
Link aggregering | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN |
Antal VLAN'er | 4095 |
Optisk fiber | |
Fiber ethernet kabelteknologi | 40GBASE-LR4, 40GBASE-SR4 |
Skiftende optiske modultyper | 40 Gigabit Ethernet |
Dataoverførsel | |
MAC adresselabel | 208000 entries |
Gennnemløb | 1440000 Mpps |
Statisk rute | Ja |
Stastiske routere | 256 |
Pakke bufferlager | 12 MB |
Sikkerhed | |
DHCP funktioner | DHCP relay, DHCP snooping |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | SSH |
Beskyttelse af adgangskode | Ja |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Protokoller | |
Administrationsprotokoller | SNMP V1, V2, V3, CLI |
Routing-protokoller | OSPFv2, BGP4, VRRP |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Knap til nulstilling | Ja |
LED-indikatorer | Ja |
Luftflow retning | Luftstrømning bagfra-fremad |
Antal blæsere | 5 blæser(e) |
Certificering | ROHS, UL/IEC 60950-1, TUV-GS, NOM-019, IEC 60950-1, FCC, CSA C22.2 No. 60950-1, CISPR 22, Class A, China CCC GB4943, GB9254 Class A, GB17625.1, CE Mark, AS/NZS CISPR 22, Class A, IEC60950-1 |
Præstation | |
Støjniveau | 65 dB |
Gennemsnitstid mellem fejl (MTBF) | 141566 t |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Redundant strømforsyning | Ja |
Antal strømforsyninger | 2 |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforbrug (typisk) | 202 W |
Strømforbrug (maks.) | 291 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftshøjde | 0 - 2000 m |
Varmeafgivelse | 689 BUT/t |
Vægt & størrelser | |
Bredde | 441 mm |
Dybde | 487 mm |
Højde | 44 mm |
Vægt | 11,5 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
