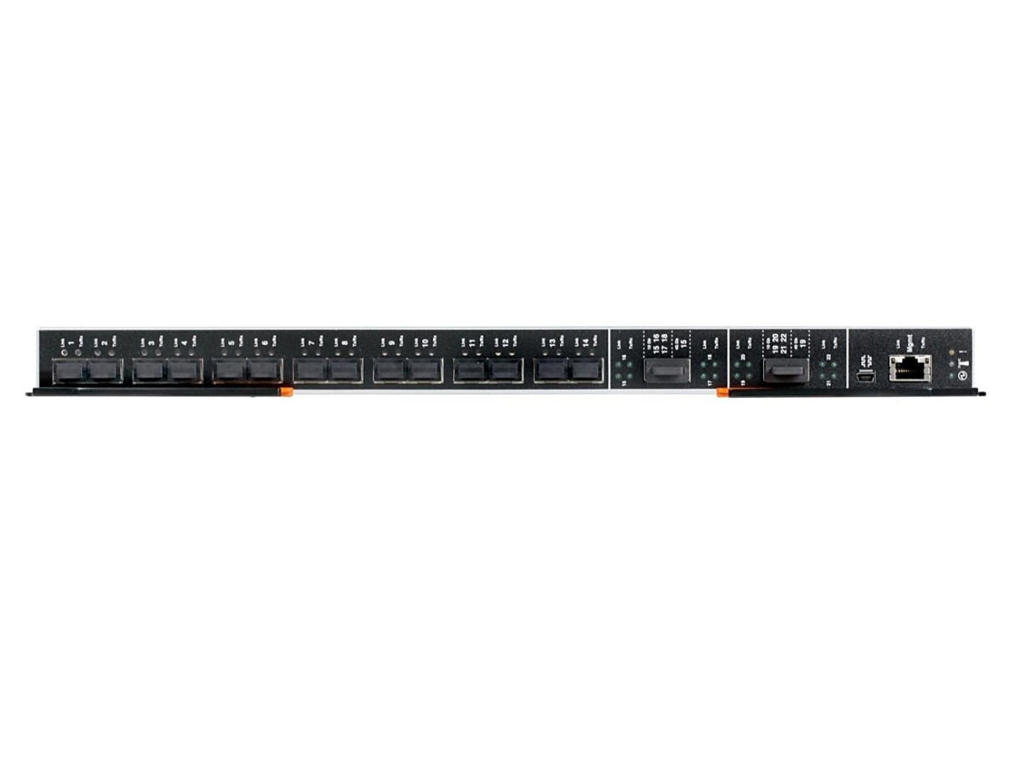

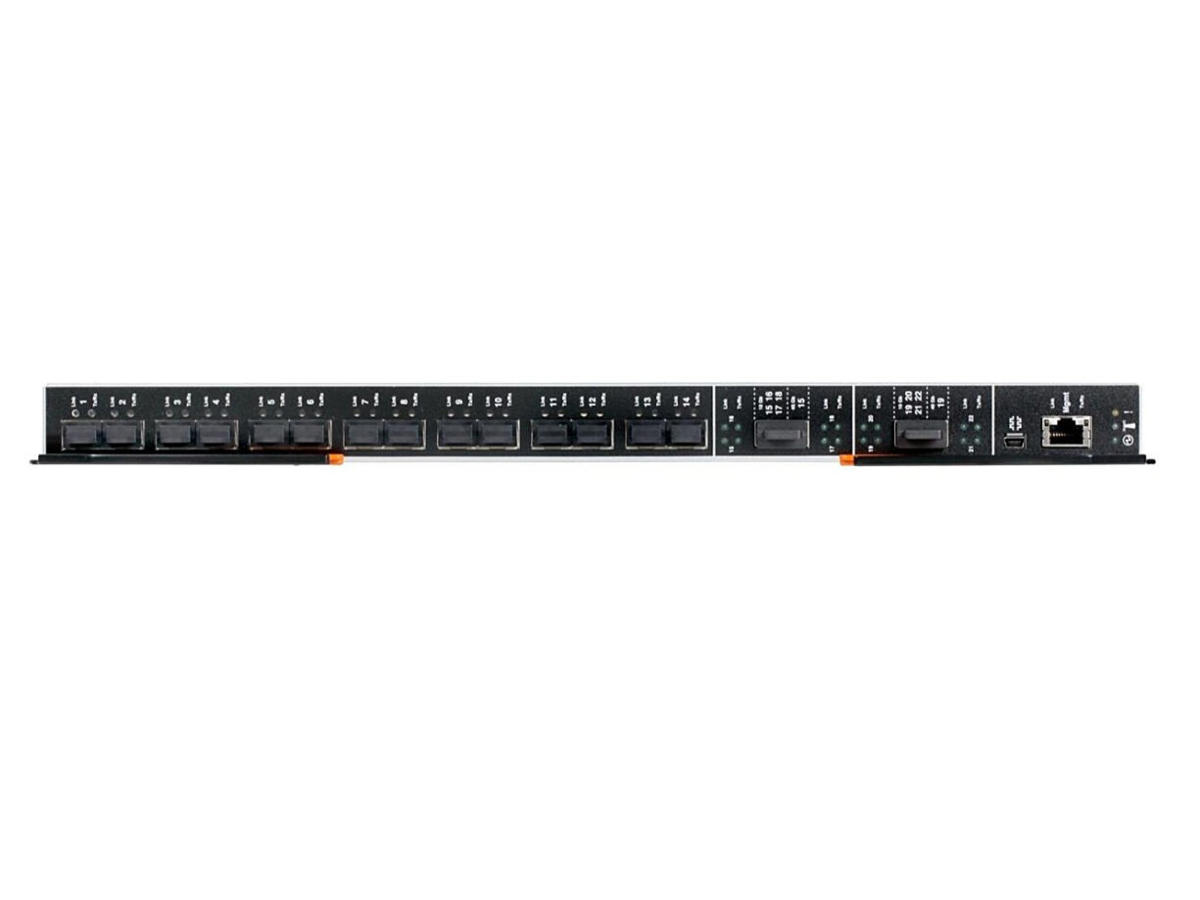

The Lenovo® Flex System Fabric EN4093R 10Gb Scalable Switch provides unmatched scalability, port flexibility, and performance. The switch also delivers innovations to help address several networking concerns today and provides capabilities that help you prepare for the future.
This switch can support up to 64x 10 Gb Ethernet connections while offering Layer 2/3 switching, in addition to OpenFlow and "easy connect" modes. It installs within the I/O module bays of the Flex System™ Enterprise Chassis. This switch can help clients migrate to a 10 Gb or 40 Gb Ethernet infrastructure, offers cloud-ready virtualization features (such as Lenovo Virtual Fabric and VMready®), and is Software Defined Network (SDN) ready.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Servicekvalitet support (QoS) | Ja |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ja |
Port-spejlning | Ja |
Link aggregering | Ja |
VLAN understøttelse | Ja |
Antal VLAN'er | 4095 |
Dataoverførsel | |
MAC adresselabel | 128000 entries |
Statisk rute | Ja |
Stastiske routere | 128 |
Sikkerhed | |
DHCP funktioner | DHCP relay |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Beskyttelse af adgangskode | Ja |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Protokoller | |
Administrationsprotokoller | SNMP V1,V3 |
Routing-protokoller | BGP, OSPF, RIP |
Design | |
Produktfarve | Sort |
Certificering | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communique 2004/9; Communique 2004/22 Saudi Arabia EMC.CVG, 28 October 2002 |
Præstation | |
Gennemsnitstid mellem fejl (MTBF) | 236805 t |
Vægt & størrelser | |
Bredde | 401 mm |
Dybde | 317 mm |
Højde | 30 mm |
Vægt | 3,7 kg |
Emballeringsdata | |
Pakkebredde | 508 mm |
Pakkedybde | 432 mm |
Pakkehøjde | 114 mm |
Pakkevægt | 4,1 kg |
