Features and performance

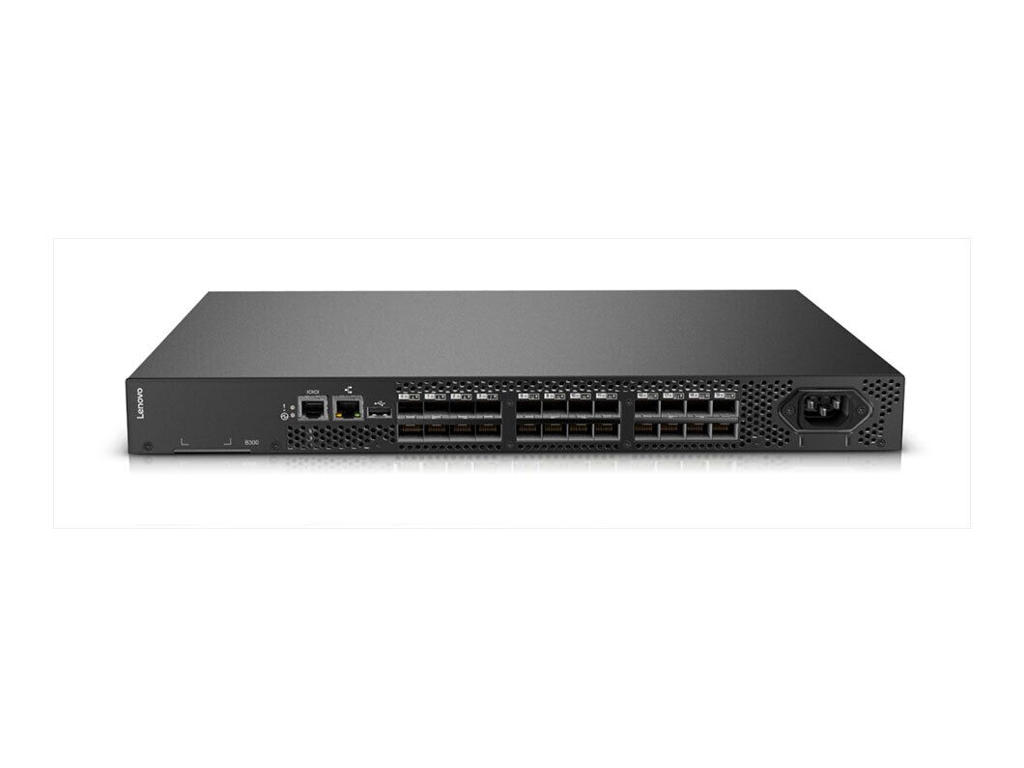

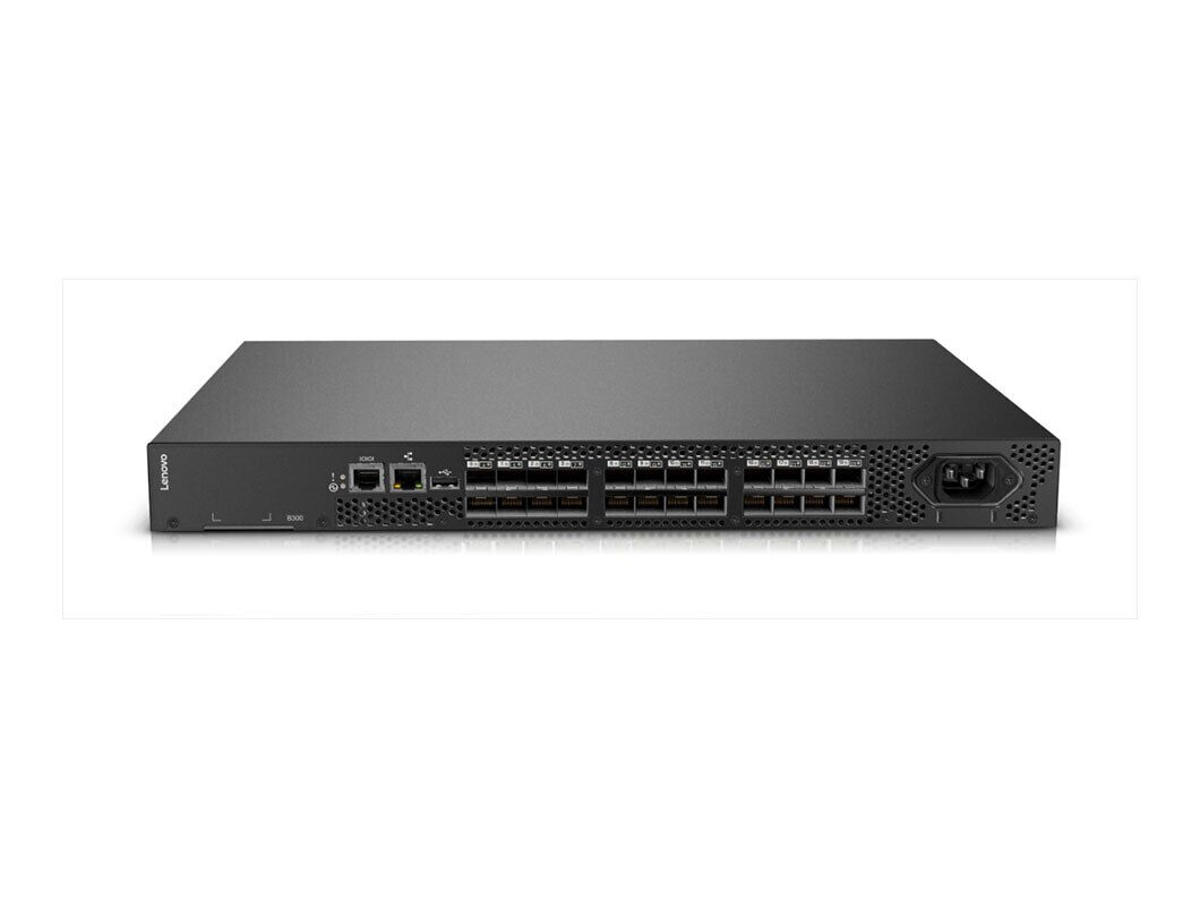

The Lenovo B300 Entry Fibre Channel (FC) Switch is purpose-built for the high-performance storage connectivity required for business-critical applications. The Lenovo B300 operates at 8Gbps, 4Gbps, 2Gbps and 1Gbps link speeds while providing optimized, automated and integrated SAN capabilities.
The B300 supports storage arrays from Lenovo Storage for analytics and online transactions. The B300 is available in a standard 8-port configuration (upgradeable to 24 ports), which includes the 8Gbps optics. It is an entry SAN 1U switch for small storage networks.
Simple Scalability
This FC Switch allows “pay-as-you-grow” scalability by providing 8-port license upgrades for 24 total ports. Optional management and trunking features are available as software upgrades. The switch provides an affordable, flexible foundation for entry-level SANs or an edge switch for core-to-edge SAN environments.
The B300 SAN Scalable Switch can also be deployed as an Access Gateway allowing servers to connect to NPIVenabled SAN fabrics (24-port configuration required). The switch also interoperates with multiple vendors’ FC storage arrays and switches to support clients as they add or adjust storage capacity.
Simplified Management
The B300 with Fabric Vision technology provides a breakthrough hardware and software solution that helps simplify monitoring, maximize network availability and reduce costs.
This optional software feature enables administrators to avoid problems before they impact operations, helping organizations meet service level agreements.
To simplify deployment, the B300 features the EZSwitchSetup wizard and other usability and configuration enhancements.
Administrationsfunktioner | |
Switch-type | Administreret |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
ARP inspektion | Ja |
System hændelseslog | Ja |
Porte & Grænseflader | |
Antal installerede SFP moduler | 8 |
Antal SFP modulslots | 24 |
Antal USB 2.0-porte | 1 |
Netværk | |
Port-spejlning | Ja |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Begrænsning af hastighed | Ja |
Auto-sensing | Ja |
Sikkerhed | |
Adgangskontrolliste (ACL) | Ja |
Sikkerhedsalgoritmer | SSH, SSL/TLS |
SSH/SSL support | Ja |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Strømforbrug (typisk) | 75 W |
Vægt & størrelser | |
Bredde | 429 mm |
Dybde | 307 mm |
Højde | 43 mm |
Vægt | 4,2 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
