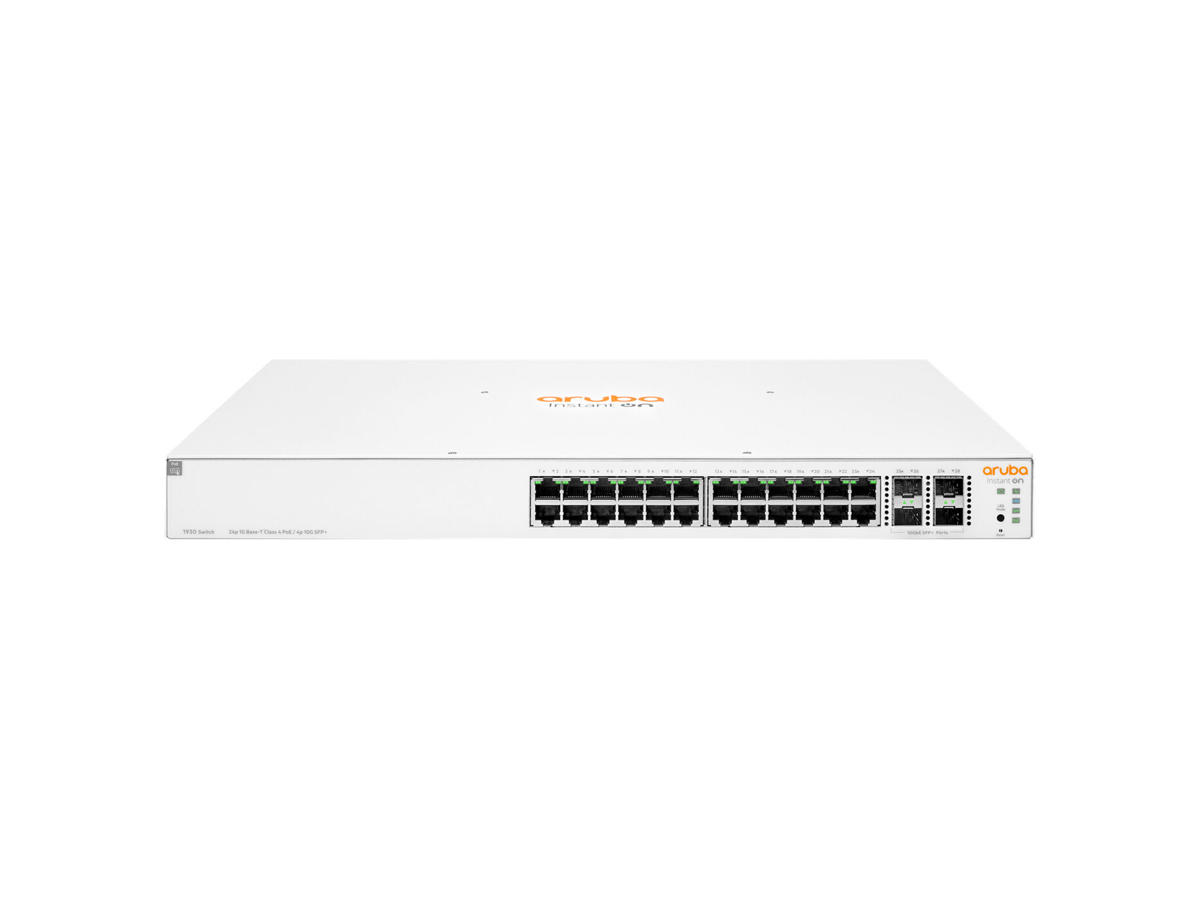

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Administreret L2+ Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) 1U Hvid
Varenummer: JL684B#ABB
.
DKK 5.387,50 / Stk
DKK 4.310,00 ekskl. moms
  •
Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W. Switch-type: Administreret, Switch lag: L2+. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 24. Fuld duplex. MAC adresselabel: 16000 entries, Switch kapacitet: 128 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Strøm over Ethernet (PoE). Stativ-montering, Formfaktor: 1U


Mere information

  • The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

    Features

    Simplify Network Deployment and Management for Small Organizations
    - The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
    - The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
    - The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
    - The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

    Keep Your Business Protected with Integrated Security Features
    - The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
    - Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
    - Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
    - Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

    Deliver High Perfomance
    - The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
    - 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
    - The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
    - The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2+
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Cloud-administreret Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 24
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal SFP + modulslots 4
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G understøttelse Ja
    Port-spejlning Ja
    Fuld duplex Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Begrænsning af hastighed Ja
    Auto MDI/MDI-X Ja
    Spanning tree protokol Ja
    Auto-sensing Ja
    VLAN understøttelse Ja
    Dataoverførsel
    MAC adresselabel 16000 entries
    Switch kapacitet 128 Gbit/sek.
    Gennnemløb 95,23 Mpps
    Latens (10-100 Mbps) 4,7 µs
    Latens (1 Gbps) 2,4 µs
    Latens (10 Gps) 1,3 µs
    Jumbo Frames support Ja
    Pakke bufferlager 1,5 MB
    Sikkerhed
    DHCP funktioner DHCP client
    Adgangskontrolliste (ACL) Ja
    IGMP snooping Ja
    SSH/SSL support Ja
    Design
    Stativ-montering Ja
    Stabelbar Ingen
    Formfaktor 1U
    Produktfarve Hvid
    Præstation
    Indbygget processer Ja
    Processormodel ARM Cortex-A9
    Processorfrekvens 800 MHz
    Hukommelsestype SDRAM / Flash
    Intern hukommelse 512 MB
    Flashhukommelse 256 MB
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 490 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Total Power over Ethernet (PoE) 370 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 15 - 95%
    Relativ luftfugtighed ved opbevaring (H-H) 15 - 95%
    Driftshøjde 0 - 3048 m
    Vægt & størrelser
    Bredde 442,5 mm
    Dybde 264,7 mm
    Højde 43,9 mm
    Vægt 3,73 kg
