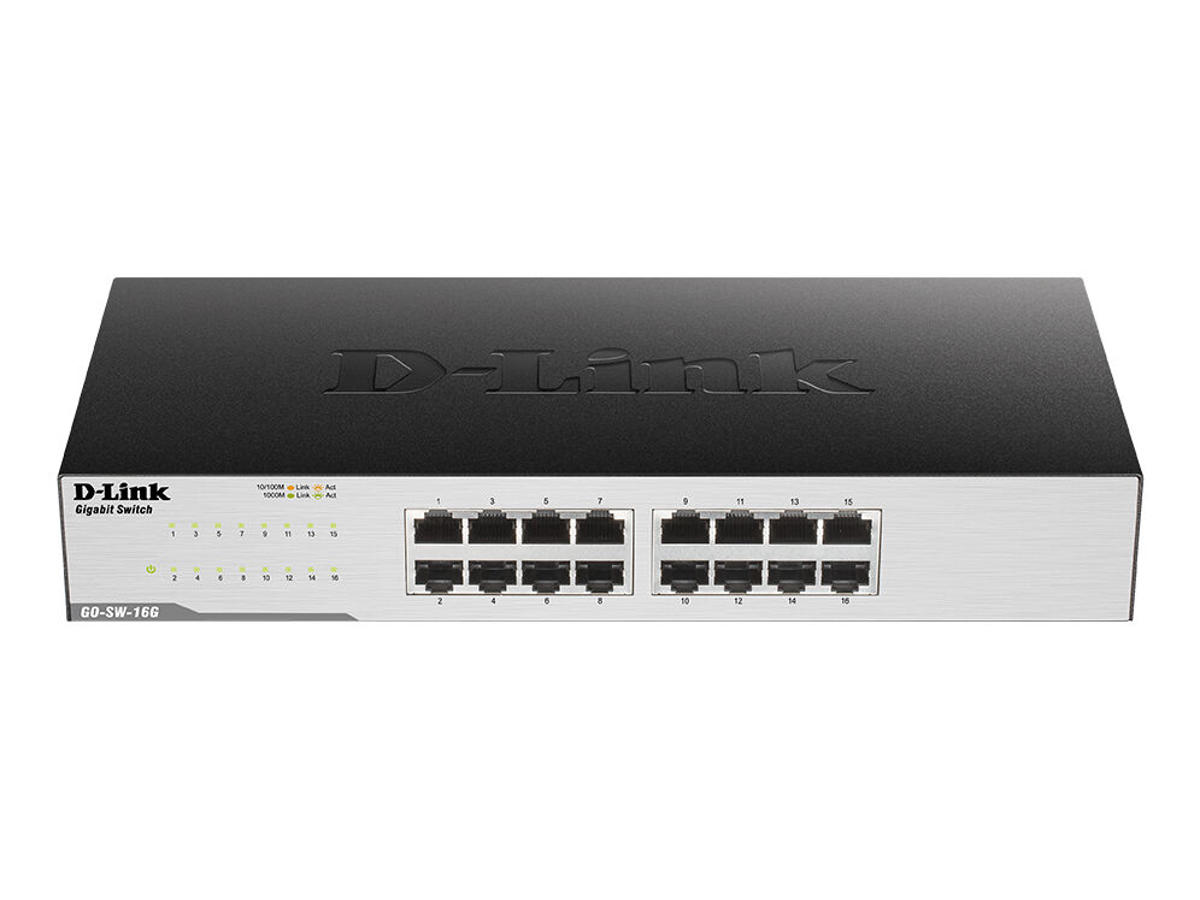

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.
Conserve Energy
The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 16 |
Strømstik | DC-in-stik |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 1000BASE-T, 100BASE-TX, 10BASE-T |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 32 Gbit/sek. |
Hastighed for videresendelse | 23,81 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 8 |
Jumbo Frames support | Ja |
Jumbo rammer | 9216 |
Pakke bufferlager | 0,512 MB |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Certificering | CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC |
Præstation | |
Gennemsnitstid mellem fejl (MTBF) | 305171 t |
Tekniske detaljer | |
Forsendelseskassens højde (indvendig) | 38,4 cm |
Forsendelseskasses kassens bredde (indvendig) | 34 cm |
Forsendelseskassens længde (indvendig) | 56,9 cm |
Forsendelsesemballage nettovægt | 15 kg |
Produkter pr. forsendelseskasse (indvendig) | 10 stk |
Palle bruttovægt (luft) | 491,5 kg |
Antal papkasser pr. palle (luft) | 30 stk |
Antal pr. palle (luft) | 300 stk |
Pallens bruttolængde | 110 cm |
Pallens bruttobredde | 120 cm |
Pallehøjde (luft) | 2,06 m |
Palle bruttovægt (hav) | 491,5 kg |
Antal papkasser pr. palle (hav) | 30 stk |
Antal pr. palle (hav) | 300 stk |
Pallehøjde (hav) | 2,06 m |
Forsendelseskassens bruttovægt (indvendig) | 15,6 kg |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Redundant strømforsyning | Ingen |
Antal strømforsyninger | 1 |
DC indgangsspænding | 12 V |
Indgangsstrøm | 1 A |
Strømforbrug (maks.) | 11,7 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Varmeafgivelse | 39,92 BUT/t |
Vægt & størrelser | |
Bredde | 280 mm |
Dybde | 126 mm |
Højde | 44 mm |
Vægt | 870 g |
Emballeringsdata | |
Pakkebredde | 180 mm |
Pakkedybde | 328 mm |
Pakkehøjde | 108 mm |
Pakkevægt | 1,45 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
