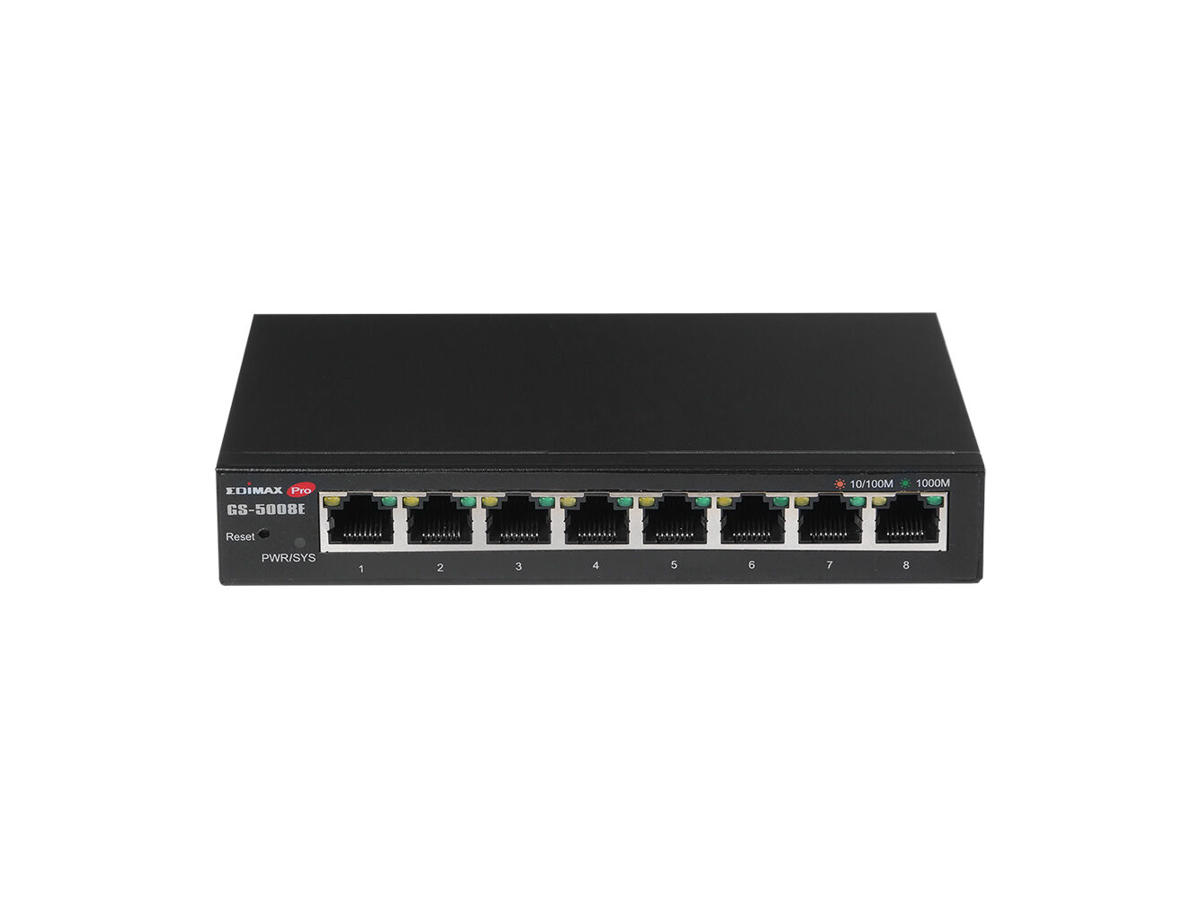

Edimax GS-5008E netværksswitch Administreret Gigabit Ethernet (10/100/1000) Sort
Varenummer: GS-5008E
.
DKK 486,25 / Stk
DKK 389,00 ekskl. moms
  •
Edimax GS-5008E. Switch-type: Administreret. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. MAC adresselabel: 4000 entries, Switch kapacitet: 16 Gbit/sek.. Netværksstandarder: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE.... Kan monteres på væggen


Mere information

  • VLAN Support
    Helps separate traffic within a business such as isolating resources between network administrations and general users or between employees and public guests users.

    Link Aggregation
    Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.

    Broadcast Storm Control
    The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.

    Loop Detection
    The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.

    IGMP Snooping
    The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.

    QoS Support
    Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.

  • Administrationsfunktioner
    Switch-type Administreret
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Netværk
    Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    Port-spejlning Ja
    Link aggregering Ja
    Broadcast stormkontrol Ja
    VLAN understøttelse Ja
    Antal VLAN'er 8
    Dataoverførsel
    MAC adresselabel 4000 entries
    Switch kapacitet 16 Gbit/sek.
    Hastighed for videresendelse 11,9 Mpps
    Opbevar-og-frem Ja
    Jumbo Frames support Ja
    Jumbo rammer 9000
    Pakke videresendelsesrate (1 Gbps) 1488000 pps
    Pakke videresendelsesrate (100 Mbps) 148800 pps
    Pakke videresendelsesrate (10 Mbps) 14880 pps
    Pakke bufferlager 1,53 MB
    Sikkerhed
    IGMP snooping Ja
    Loop beskyttelse Ja
    Algoritmer for køplanlægning Strict Priority Queue (SPQ), WFQ
    Multicast funktioner
    Multicast-understøttelse Ja
    Multicast funktioner Multicast traffic suppression
    Design
    Produktfarve Sort
    Husmateriale Metal
    Knap til nulstilling Ja
    LED-indikatorer Ja
    Kan monteres på væggen Ja
    Certificering CE, FCC, BSMI
    Præstation
    Ventilatorfri Ja
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 155 mm
    Dybde 85 mm
    Højde 26 mm
    Vægt 325 g
