Easily Upgrade or Expand Networks with Gigabit High-Speed
For Home, Small Office and Enterprise

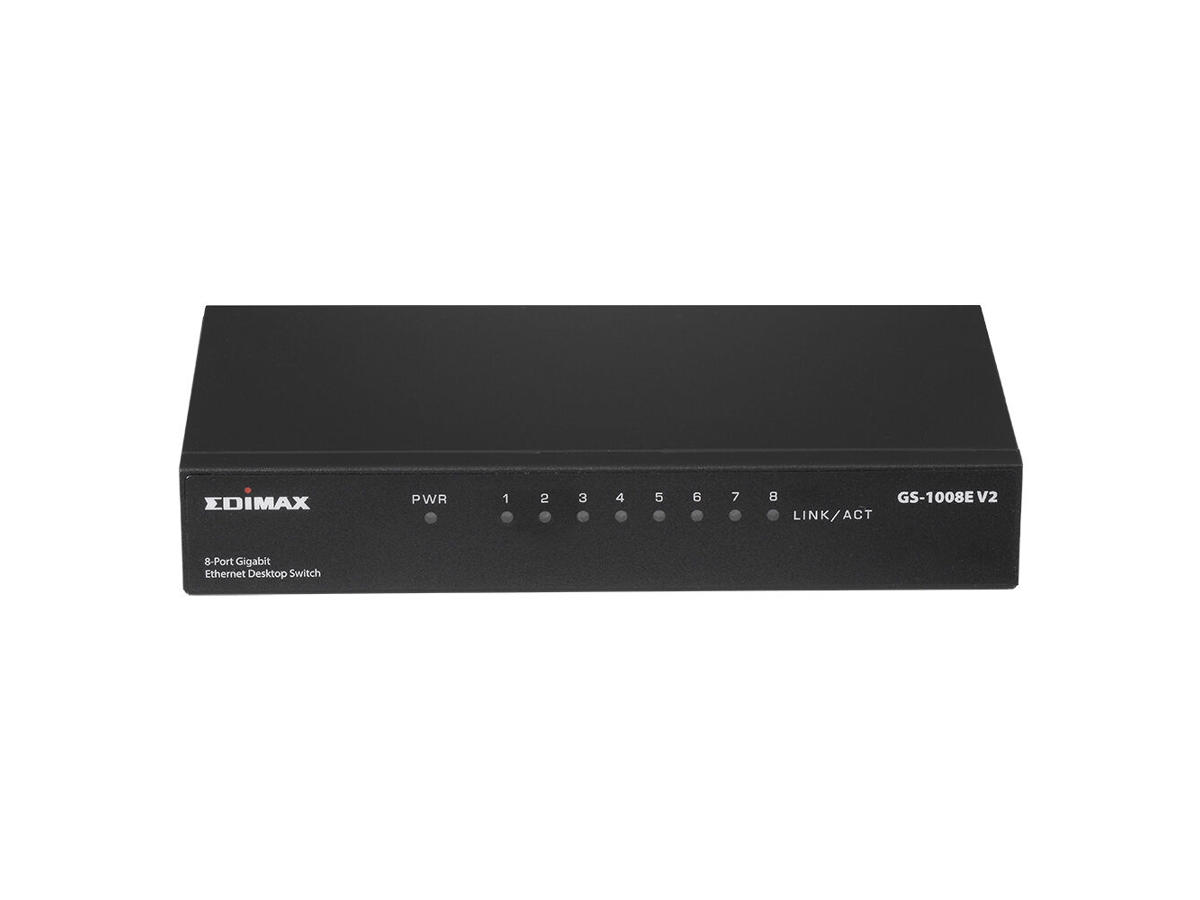

8-Port Gigabit Desktop Switch
GS-1008E V2
Offers high-flexibility and high-bandwidth Gigabit connectivity and delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices for large files transfer. Supports 9K jumbo frames to improve network utilization in large files transfer.
Easy Plug & Play, No Installation Required
The Gigabit switch features with Flow Control, Full-Duplex, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Store-and-Forward Architecture filters fragment & CRC error packets, maximizing network performance while offering reliable connection.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard and feature with Inactive Link Detection and Cable Length Detection, the GS-1008E V2 provides power-saving functionality to reduce energy consumption and save power usage costs.
Quiet Fanless, Flexible Wall-Mount Design
Flexible deployment options for desktop or wall-mount with quiet fanless, durable metal case design to meet the network environment requirement.
esigned to meet your network needs
Easily upgrade or expand your network with Gigabit high-speed and with cost efficiency.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Dataoverførsel | |
MAC adresselabel | 4000 entries |
Switch kapacitet | 16 Gbit/sek. |
Hastighed for videresendelse | 11,9 Mpps |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke videresendelsesrate (1 Gbps) | 1448000 pps |
Pakke videresendelsesrate (100 Mbps) | 148800 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Pakke bufferlager | 0,192 MB |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Aktivitet, Link, Strøm |
Kan monteres på væggen | Ja |
Strømstyring | |
Strømforsyning inkluderet | Ja |
DC indgangsspænding | 5 V |
Indgangsstrøm | 1 A |
Strømforbrug (maks.) | 3 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 154 mm |
Dybde | 85 mm |
Højde | 26 mm |
Vægt | 325 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
