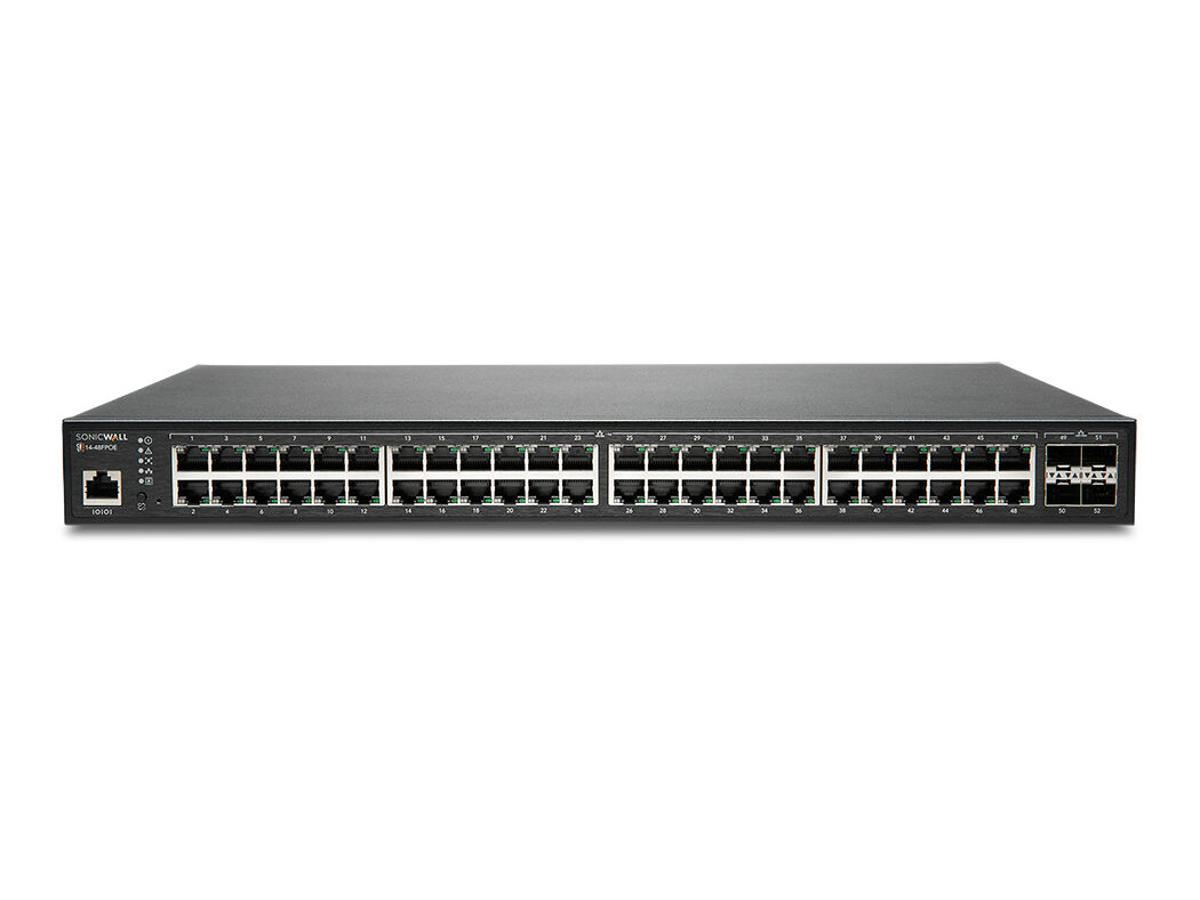

Explore the Switch Series
Your network is under more pressure than ever. As the number of connected devices expands, bandwidth demands continue to soar, making it difficult to consistently provide the secure, high-speed connection your business depends on.
SonicWall’s feature-rich switches answer the challenge delivering high-speed switching, so you can add more devices, keep up with SaaS proliferation and gain more control, all while protecting your network and your budget.
Its unified security posture makes it ideal for small and medium-sized businesses and Software Defined Branch (SD-Branch) deployments. Keep pace with the changing network and security landscape.
SD-Branch Ready
Integrates seamlessly with the SonicWall ecosystem to provide unified security posture.
10 Gigabit Connectivity
Attain significant boost in your overall switching performance as network demands grow.
Flexible Management
Whether through the firewall or Wireless Network Manager, with our single-pane-of-glass view, managing your security is easy.
Zero-Touch Deployment
Quickly set up, configure and deploy devices without the time and expense of site visits or on-site personnel.
Various Deployment Options
Multiple models provide you the flexibility to choose the best option aligned with your business goals.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2 |
System hændelseslog | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP + modulslots | 4 |
Port til konsol | RJ-45 |
Netværk | |
Netværksstandarder | IEEE 802.1af, IEEE 802.1p, IEEE 802.1x |
10G understøttelse | Ja |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
Port-spejlning | Ja |
IP-routing | Ja |
Auto MDI/MDI-X | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN |
Antal VLAN'er | 4096 |
Dataoverførsel | |
MAC adresselabel | 32000 entries |
Switch kapacitet | 176 Gbit/sek. |
Jumbo Frames support | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 802.1x RADIUS, SSH |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | LAN, PoE |
Antal blæsere | 3 blæser(e) |
Certificering | FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
Præstation | |
Intern hukommelse | 512 MB |
Flashhukommelse | 128 MB |
Gennemsnitstid mellem fejl (MTBF) | 100645 t |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 12 A |
Strømforbrug (maks.) | 885 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Total Power over Ethernet (PoE) | 740 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 95% |
Varmeafgivelse | 1807,3 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 44 mm |
Højde | 310 mm |
Vægt | 4,8 kg |
