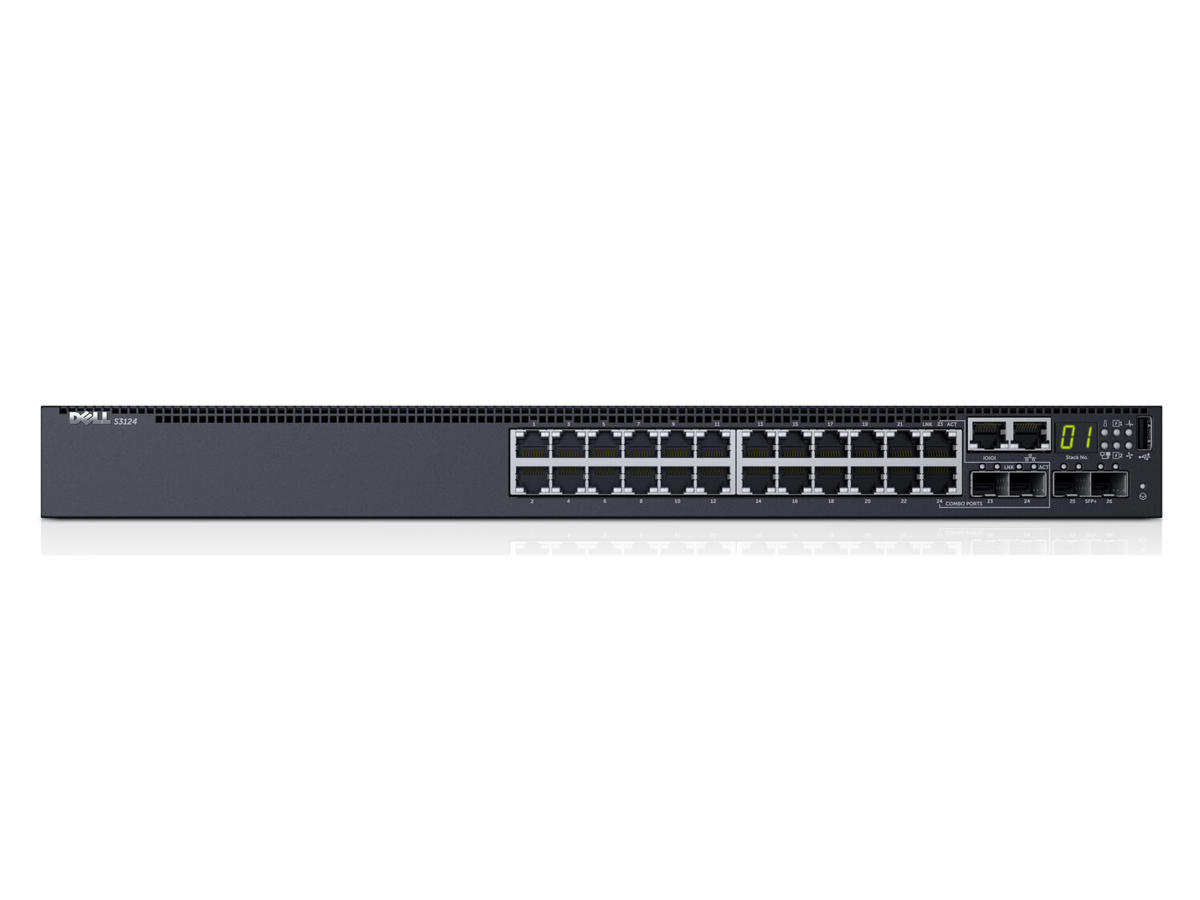

Data-center-optimized, high-performance 1GbE switches
Optimized for high-performance data center environments, Dell Networking S-Series 1GbE switches:
- Deliver low latency, superb performance and high density with hardware and software redundancy
- Offer Active Fabric designs using S- or Z-Series core switches to create a two-tier, 1/10/40 GbE data center network architecture
- Provide ideal solutions for ToR applications in enterprise, Web 2.0 and cloud service providers’ data center networks
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches.
- Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
- Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
- Your choice of network operating system helps simplify data-center fabric orchestration and automation.
- A broad ecosystem of applications and tools, open-source and Linux-based, provides more options to optimize and manage your network.
Built for cost-effective deployment
Select S-Series Managed 1/10GbE switches are supported by the Dell Open Automation Framework, a suite of interrelated network management tools that can be used together or independently to provide a flexible, available and manageable network while helping reduce operational expenses.
The Open Automation Framework takes full advantage of Dell Networking Operating System OS9 software capabilities to bring network automation into virtual data center environments. This helps the S-Series switches efficiently respond and adapt to changes in application requirements.
Navigate network complexity with Dell EMC Services
Our global team of network experts understands the complexities of IT ecosystems, including multi-vendor environments. We have the skillset and experience to not only quickly resolve performance issues but also transform your network to meet the demands of your business.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Servicekvalitet support (QoS) | Ja |
Konfigurerer lokationsindstillinger (CLI) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Kombo SFP porte, antal | 2 |
Antal SFP + modulslots | 2 |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN |
Sikkerhed | |
Understøtter adskillelse | PoE+ |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Fejl |
CO2-aftryk | |
Samlet CO2-fodaftryk (kg of CO2e) | 3880 |
Samlet kulstofudledning, standardafvigelse (kg CO2e) | 1220 |
Kulstofudledning, produktion (kg CO2e) | 2388 |
Kulstofudledning, logistik (kg CO2e) | 119 |
Kulstofudledning, energiforbrug (kg CO2e) | 1360 |
Udledning af kulstof i slutningen af levetiden (kg CO2e) | 7 |
Samlet kulstofudledning, uden brugsfase (kg CO2e) | 2514 |
PAIA-version | 1.2.8, 2020 |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Vægt & størrelser | |
Vægt | 6 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner | |
Dell E-Værdi kode | DNS3124T |
