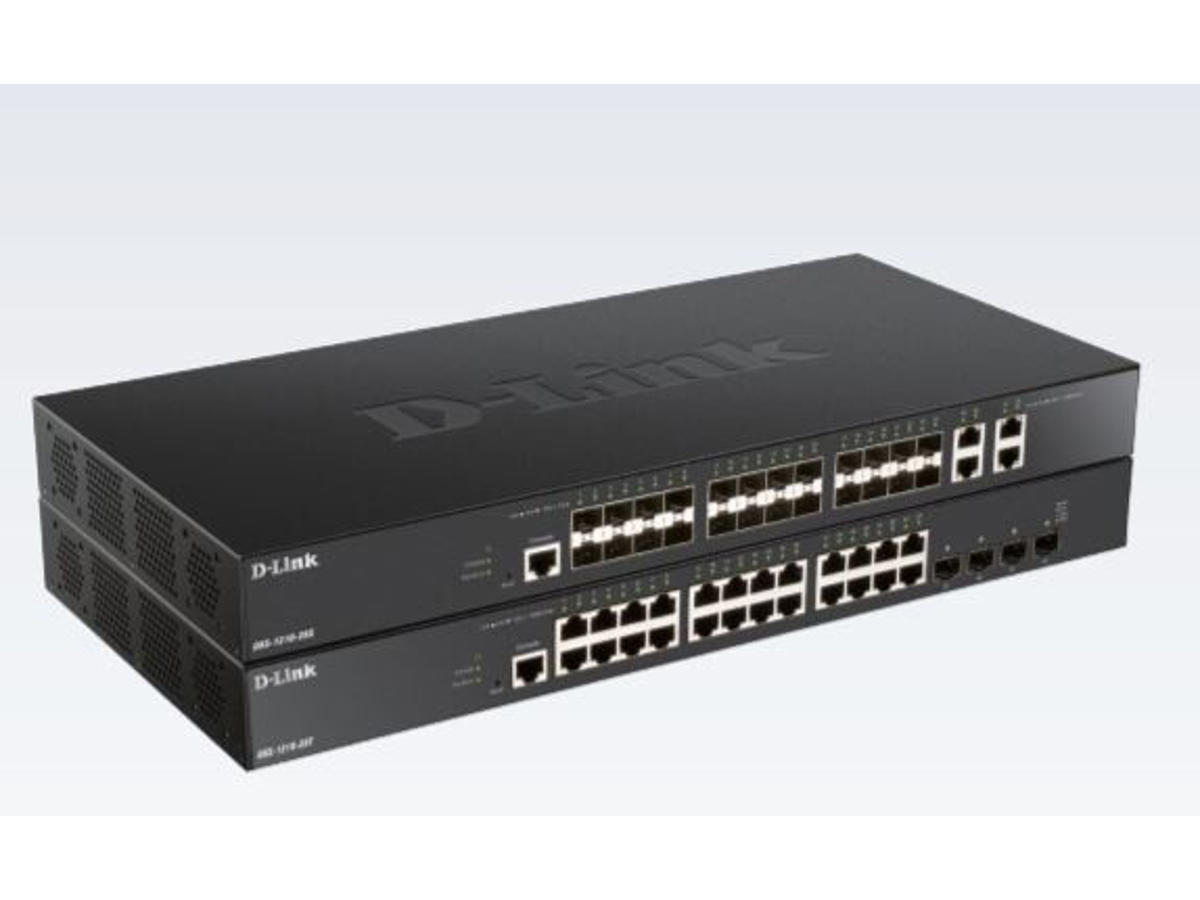

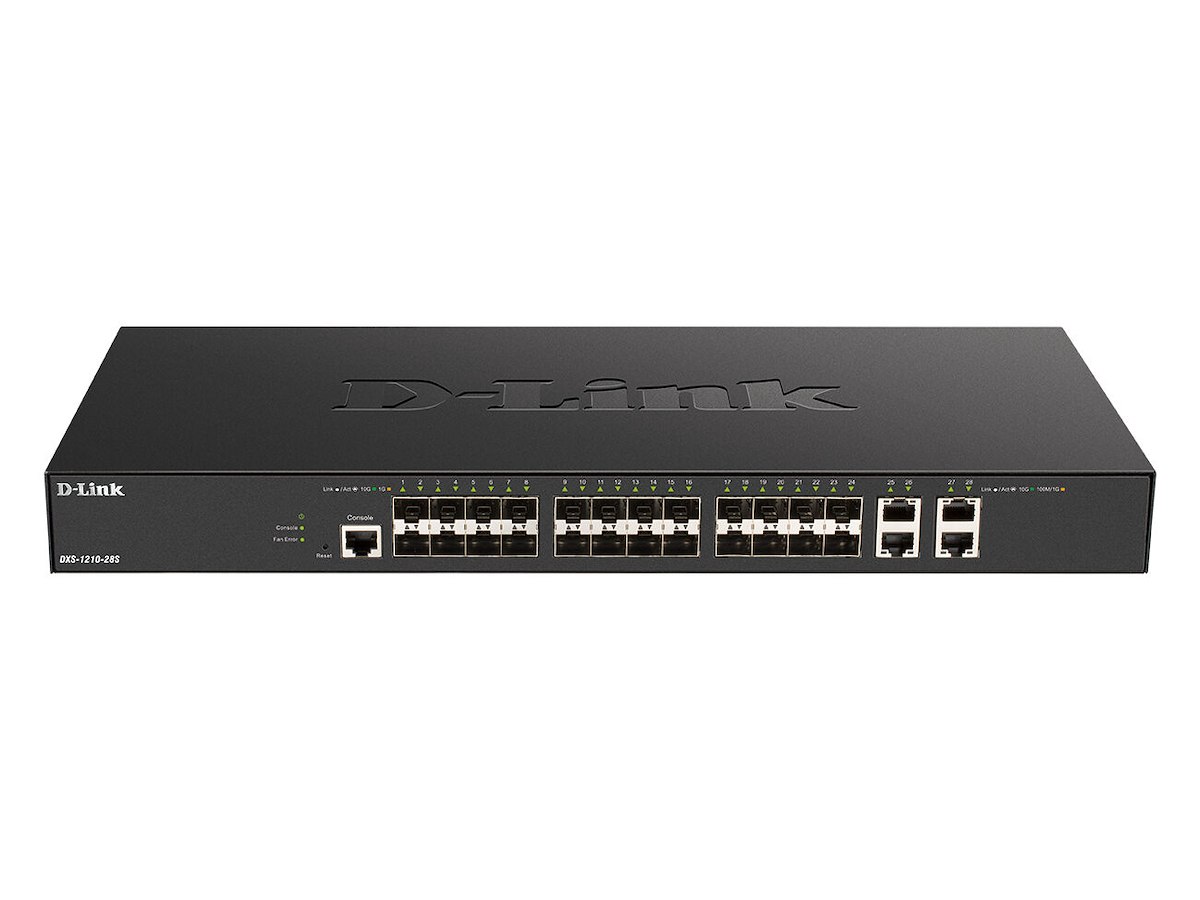

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2/L3 |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 4 |
Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
Antal 10G Ethernet-porte (kobber) | 4 |
Antal SFP + modulslots | 24 |
Port til konsol | RJ-45 |
Netværk | |
Netværksstandarder | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
10G understøttelse | Ja |
Understøttede kabeltyper | Cat6, Cat6a, Cat7 |
Port-spejlning | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Auto MDI/MDI-X | Ja |
Spanning tree protokol | Ja |
VLAN understøttelse | Ja |
Antal VLAN'er | 4094 |
Dataoverførsel | |
MAC adresselabel | 32000 entries |
Switch kapacitet | 560 Gbit/sek. |
Gennnemløb | 416,64 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Sikkerhed | |
Adgangskontrolliste (ACL) | Ja |
Adgangskontrolliste (ACL) regler | 256 |
IGMP snooping | Ja |
Protokoller | |
Administrationsprotokoller | SNMP v1/v2c/v3 |
GARP VLAN registreringsprotokol (GVRP) | Ja |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Aktivitet, Link, Hastighed |
Antal blæsere | 2 blæser(e) |
Certificering | CE Class A FCC Class A VCCI Class A IC BSMI |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Strømforbrug (maks.) | 85,7 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -5 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
Vægt & størrelser | |
Bredde | 441 mm |
Dybde | 209,5 mm |
Højde | 44 mm |
Vægt | 3,27 kg |
Emballeringsdata | |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
