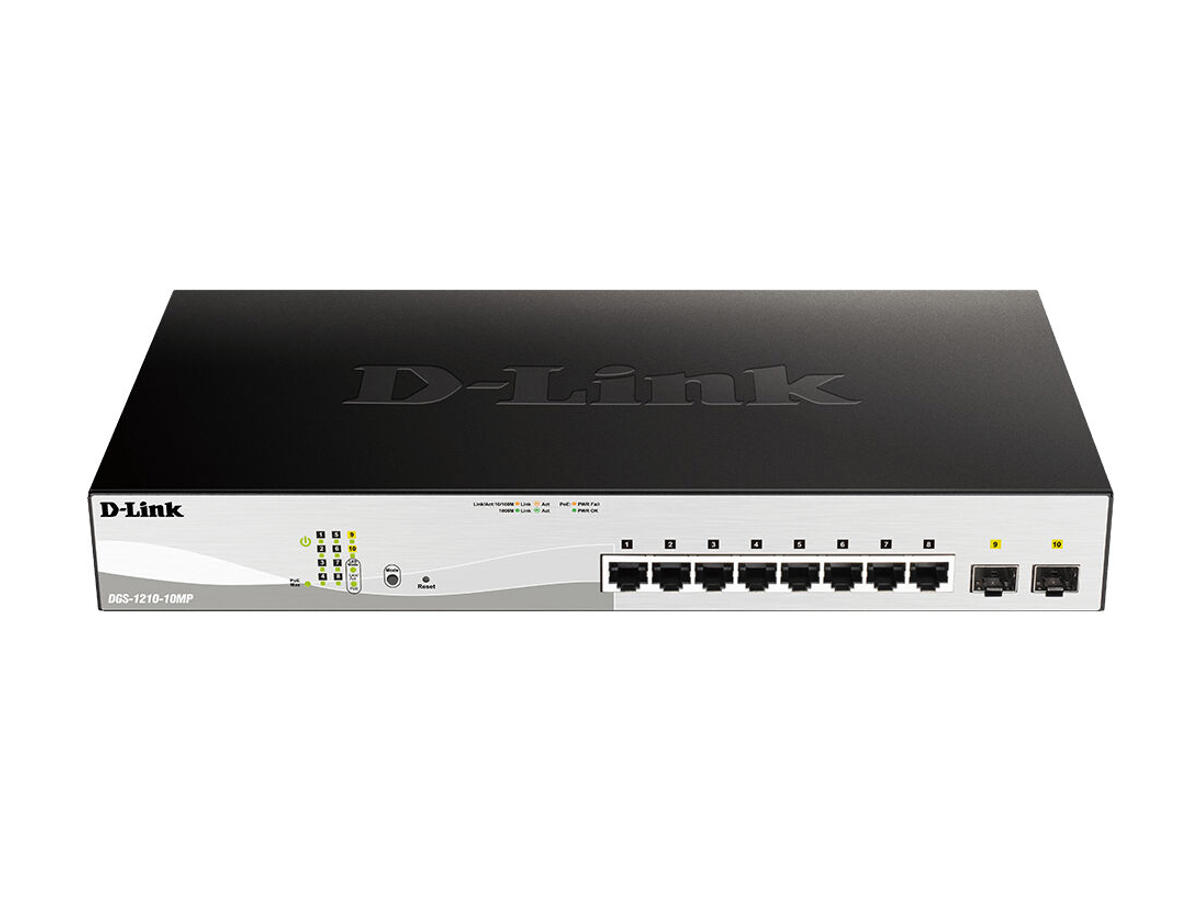

D-Link DGS-1210-10MP Administreret L2 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) Sort, Grå
Varenummer: DGS-1210-10MP/E
.
DKK 962,50 / Stk
DKK 770,00 ekskl. moms
  •
D-Link DGS-1210-10MP. Switch-type: Administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8, Antal installerede SFP moduler: 2. Fuld duplex. MAC adresselabel: 8000 entries, Switch kapacitet: 20 Gbit/sek.. Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Strøm over Ethernet (PoE)


Mere information

  • Static Routing
    Route Layer 3 traffic between switches, even if they're segmented in VLANs.

    Fibre Uplink Ports
    Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.

    Surveillance Mode Interface
    D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.

    PoE Capable
    Up to 370 W PoE output per switch

    VLANs
    Segment your network into VLANs.

    Dual Image
    Risk-free configuration testing.

    Smart Managed with a Plus
    With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.


    Advanced Layer 2 Management with Layer 3 Static Routing
    The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

    With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

    Fibre Uplinks
    Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

    PoE and PoE+, with budgets up to 370W
    The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

    This product is compatible with Nuclias Connect
    Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

    Free Network Design and Management Software
    D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

    Smart Energy-Saving Design
    D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

    Surveillance Mode
    Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

    Free Next-Business-Day Service
    Enjoy our free Next Business Day service, as standard, to replace faulty equipment quickly.

    Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increase the lengths of warranties and further minimises downtime. You can even opt for our Same Business Day Service which guarantees the delivery of the replacement product within 4 hours of confirmation of product failure.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal installerede SFP moduler 2
    Netværk
    Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G understøttelse Ingen
    Port-spejlning Ja
    Fuld duplex Ja
    Halv dupleks Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Broadcast stormkontrol Ja
    Auto MDI/MDI-X Ja
    Spanning tree protokol Ja
    Head-of-line (HOL) blokering Ja
    Ethernet LAN-datahastigheder 10,100,1000 Mbit/s
    VLAN understøttelse Ja
    Antal VLAN'er 256
    Dataoverførsel
    MAC adresselabel 8000 entries
    Switch kapacitet 20 Gbit/sek.
    Hastighed for videresendelse 14,88 Mpps
    Statisk rute Ja
    Stastiske routere 256
    Jumbo Frames support Ja
    Jumbo rammer 10000
    Pakke bufferlager 4,1 MB
    Sikkerhed
    IGMP snooping Ja
    Loop beskyttelse Ja
    Design
    Produktfarve Sort, Grå
    LED-indikatorer Ja
    Præstation
    Intern hukommelse 128 MB
    Flashhukommelse 32 MB
    Gennemsnitstid mellem fejl (MTBF) 1274005 t
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Antal strømforsyninger 1
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Strømforbrug (maks.) 9,4 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) porte, antal 8
    Total Power over Ethernet (PoE) 130 W
    Driftsbetingelser
    Driftstemperatur (T-T) -5 - 50 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 95%
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
    Varmeafgivelse 507,23 BUT/t
    Vægt & størrelser
    Bredde 330 mm
    Dybde 180 mm
    Højde 44 mm
    Vægt 1,77 kg
    Bæredygtighed
    Bæredygtighedscertifikater BSMI, CB, CCC, cUL
    Overholdelse af bæredygtighed Ja
