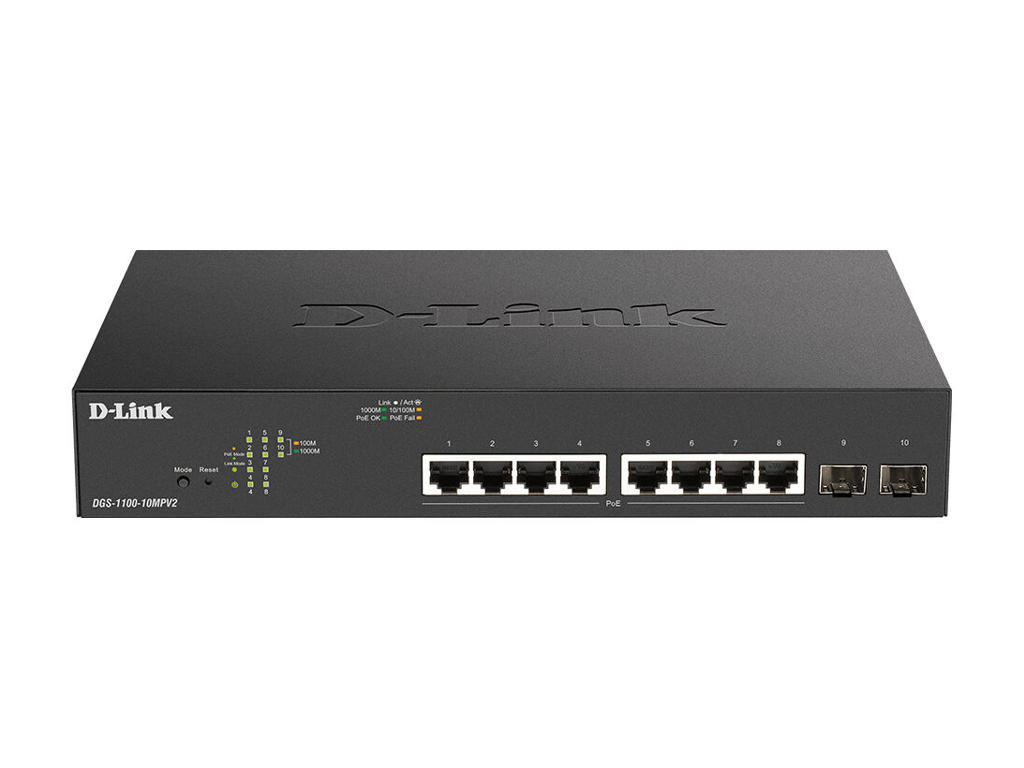

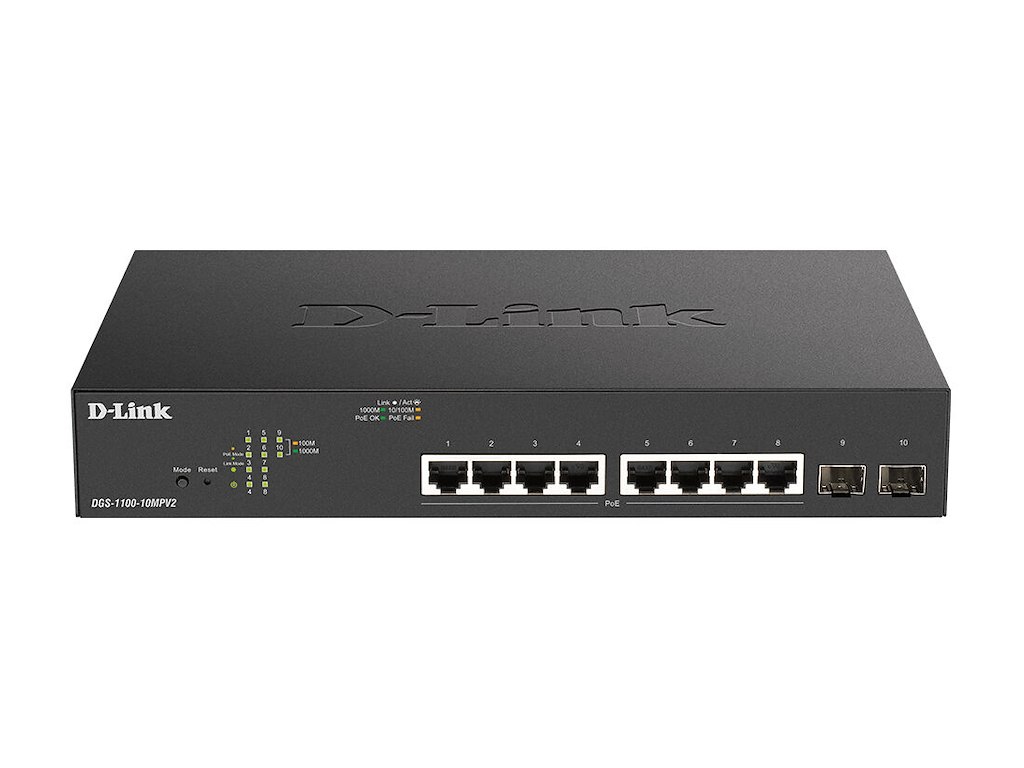

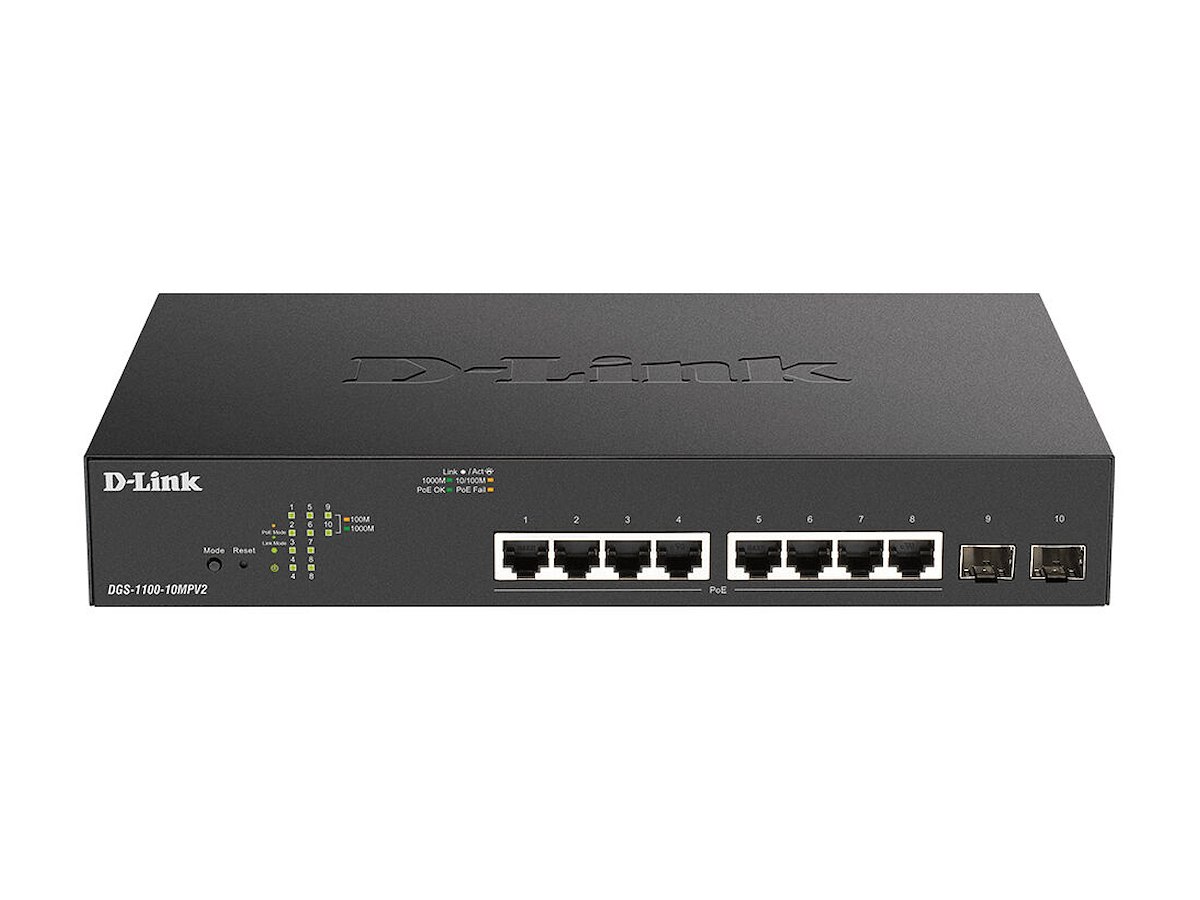

D-Link DGS-1100-10MPV2 netværksswitch Administreret L2 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) 1U Sort
Varenummer: DGS-1100-10MPV2
.
DKK 1.962,50 / Stk
DKK 1.570,00 ekskl. moms
  •
D-Link DGS-1100-10MPV2. Switch-type: Administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex. MAC adresselabel: 8000 entries, Switch kapacitet: 20 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Strøm over Ethernet (PoE). Stativ-montering, Formfaktor: 1U


Mere information

  • The DGS-1100 Series is built for the needs of a diverse range of businesses. Support for PoE, advanced management & troubleshooting tools, and energy efficient technology offer a highly flexible solution.

    Smart Switching for your Business
    The DGS-1100 Series is a range of smart managed switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

    Expedited Deployment and Effortless Ongoing Management
    The D-Link Network Assistant (DNA) can quickly discover and execute initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

    VLANs: Stronger Security & Better Traffic Management
    Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

    For Voice
    If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

    For Surveillance
    If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

    Green Features That Help the Environment and Your Budget
    D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, ensuring a longer product life, as well offering silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

    PD Alive Actively Mitigates Downtime
    Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal SFP modulslots 2
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Fuld duplex Ja
    Halv dupleks Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Begrænsning af hastighed Ja
    Auto MDI/MDI-X Ja
    Head-of-line (HOL) blokering Ja
    Auto-forhandling Ja
    VLAN understøttelse Ja
    Vituelle LAN funktioner Port-based VLAN, Tagged VLAN, Voice VLAN
    Antal VLAN'er 4094
    Dataoverførsel
    MAC adresselabel 8000 entries
    Switch kapacitet 20 Gbit/sek.
    Hastighed for videresendelse 14,88 Mpps
    Antal køer 4
    Jumbo Frames support Ja
    Jumbo rammer 9216
    Pakke bufferlager 4,1 MB
    Sikkerhed
    IGMP snooping Ja
    Sikkerhedsalgoritmer SSL/TLS
    Algoritmer for køplanlægning Weighted Round Robin (WRR)
    Multicast funktioner
    Multicast-understøttelse Ja
    Design
    Stativ-montering Ja
    Formfaktor 1U
    Produktfarve Sort
    Certificering FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI
    Præstation
    Flashhukommelse 16 MB
    Støjniveau 37 dB
    Gennemsnitstid mellem fejl (MTBF) 406887 t
    Strømstyring
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 164,6 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet plus (PoE+) porte, antal 8
    Total Power over Ethernet (PoE) 130 W
    Driftsbetingelser
    Driftstemperatur (T-T) -10 - 50 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 95%
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
    Varmeafgivelse 118,1 BUT/t
    Vægt & størrelser
    Bredde 280 mm
    Dybde 180 mm
    Højde 44 mm
    Vægt 1,5 kg
    Logistik data
    Harmoniseret systemkode (HS) 85176990
